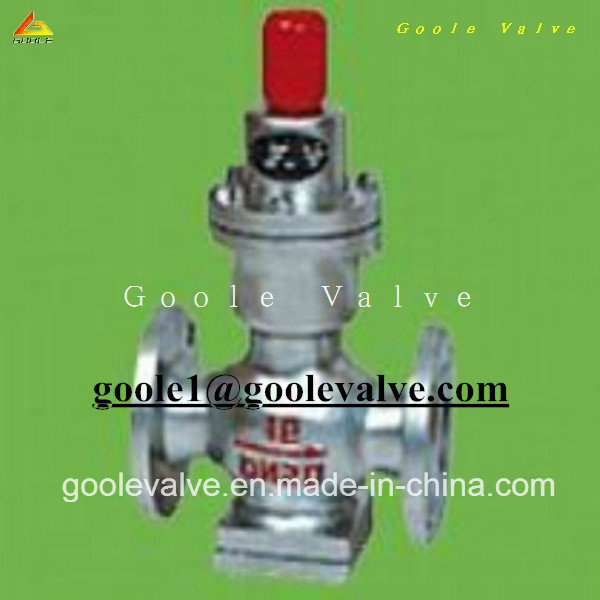

Direct Acting Bellows Pressure Reducing Valve (GAY44h/Y)
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |
Prod Model: |
GAY44H/Y |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |
Gay44h/Y |
Size: |
1/2"-4" |
Category: |
Pressure Reducing Valve |
Connecting Type: |
Flange |
Material: |
C.S |
Medium: |
Water, Steam, Liquid, Air, Oxygen, Nitrogen, etc. |
Working Temperature: |
Below 220 Deg C |
Usage: |
Pressure Reducing |
Application: |
Industrial Pipelines |
Product Description

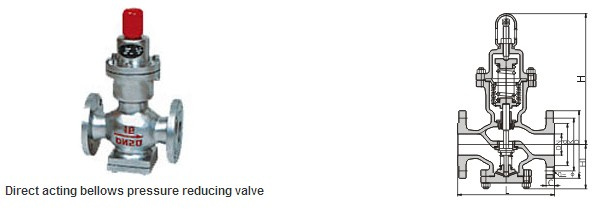

Structural Characteristic&Purpose.This series reducing valve is Direct acting bellows pressure reducing valve, It is mainly composed of bellows, adjusting spring, valve seat and valve flap. It sense the change of lower stream pressure through the bellows and drive the valve flap, change and control the valve opening to realize the function of pressure reducing the regulating. Set the outlet pressure by adjusting the spring pressure through adjusting bolt The product works stably and flexibly. It is suitable for piping of gas and liquid medium.Main Technical Parameters&Indexes Of Performance. Nominal pressure | PN0.6Mpa | PN1.0Mpa | PN1.6Mpa |
Tested pressure of shell | 0.9Mpa | 1.5Mpa | 2.4Mpa |
Sealing test pressure | 0.6Mpa | 1.0Mpa | 1.6Mpa |
Maximum upstream pressure | 0.6Mpa | 1.0Mpa | 1.6Mpa |
Pressure range of outlet | 0.05-0.4Mpa | 0.1-0.8Mpa | 0.1-1.0Mpa |
Minimum differential pressure | 0.1Mpa | 0.15Mpa | 0.15Mpa |
Medium | Water, steam, liquid, air, oxygen, nitrogen, etc. |
Operating temperature | 220 |
*the shell test does not include BELLOWS. Take down BELLOWS before shell pressure-proof test. Material Of Main Component. Name of component | Material of component |
Valve body, valve cover | WCB |
Seat cover | WCB |
Valve seat, valve flap | 2Cr13 |
Corrugated tube | 1Cr18Ni9Ti |
Upper gasket of corrugated tube | 2Cr13 |
Lower gasket of corrugated tube | 2Cr13 |
Pilot seat | 2Cr13 |
Spring of main valve | 50CrVA |
Adjusting spring | 60Si2Mn |
Connecting Dimension.
DN | External dimension | Connecting dimension |
L | H | H1 | PN0.6MPa | PN1.0MPa | PN1.60MPa |
|
| D | K | n- | d | C | D | K | n- | d | C | D | K | n- | d | C |
15 | 140 | 140 | 290 | 90 | 80 | 55 | 4-12 | 40 | 12 | 95 | 65 | 4-14 | 45 | 12 | 95 | 65 | 4-14 | 45 | 14 |
20 | 140 | 140 | 295 | 98 | 90 | 65 | 4-12 | 50 | 12 | 105 | 75 | 4-14 | 55 | 14 | 105 | 75 | 4-14 | 55 | 14 |
25 | 160 | 160 | 295 | 110 | 100 | 75 | 4-12 | 60 | 14 | 115 | 85 | 4-14 | 65 | 14 | 115 | 85 | 4-14 | 65 | 14 |
32 | 180 | 180 | 295 | 110 | 120 | 90 | 4-14 | 70 | 14 | 135 | 100 | 4-18 | 78 | 16 | 135 | 100 | 4-18 | 78 | 16 |
40 | 200 | 200 | 325 | 125 | 130 | 100 | 4-14 | 80 | 14 | 145 | 110 | 4-18 | 85 | 16 | 145 | 110 | 4-18 | 85 | 16 |
50 | 230 | 230 | 325 | 125 | 140 | 110 | 4-14 | 90 | 14 | 160 | 125 | 4-18 | 100 | 16 | 160 | 125 | 4-18 | 100 | 16 |
65 | 280 | 325 | 130 | 160 | 130 | 4-14 | 110 | 14 | 180 | 145 | 4-18 | 120 | 18 | 180 | 145 | 4-18 | 120 | 18 |
80 | 310 | 380 | 160 | 185 | 150 | 4-18 | 125 | 16 | 195 | 160 | 4-18 | 135 | 18 | 195 | 160 | 8-18 | 135 | 20 |
100 | 350 | 380 | 170 | 205 | 170 | 4-18 | 145 | 16 | 215 | 180 | 8-18 | 155 | 20 | 215 | 180 | 8-18 | 155 | 20 |
