Dm Series Manually Operated Directional Valves (DMG-02)
| Price: |
US $ 21/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DMG-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Household Usage |
Product Description

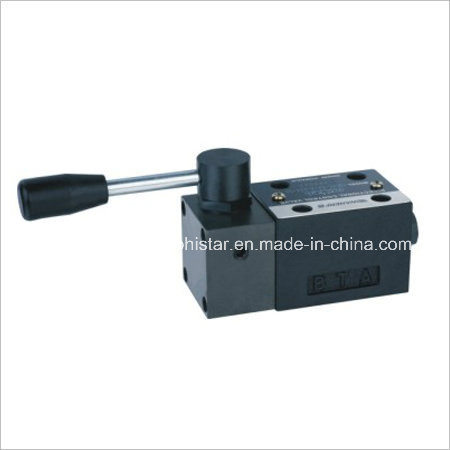

DM series manually operated directional valves are direct type directional valves, it can control the start, stop & direction of fluid flow. This series with detent or return spring are available.
Spool Symbol:
Technical specification:| Type | Max flow rate l/min | Max. Operating Pressure(MPa) | Max. T port Pressure(Mpa) | Weight (kg) |
| 7MPa | 14MPa | 21MPa | 31.5MPa |
| DMG-02-3C-10 | 35 | 35 | 35 | - | 25 | 14 | 1.8 |
| DMG-02-3D-10 | - |
| DMG-02-2D-10 | - |
| DMG-02-2B-10 | - |

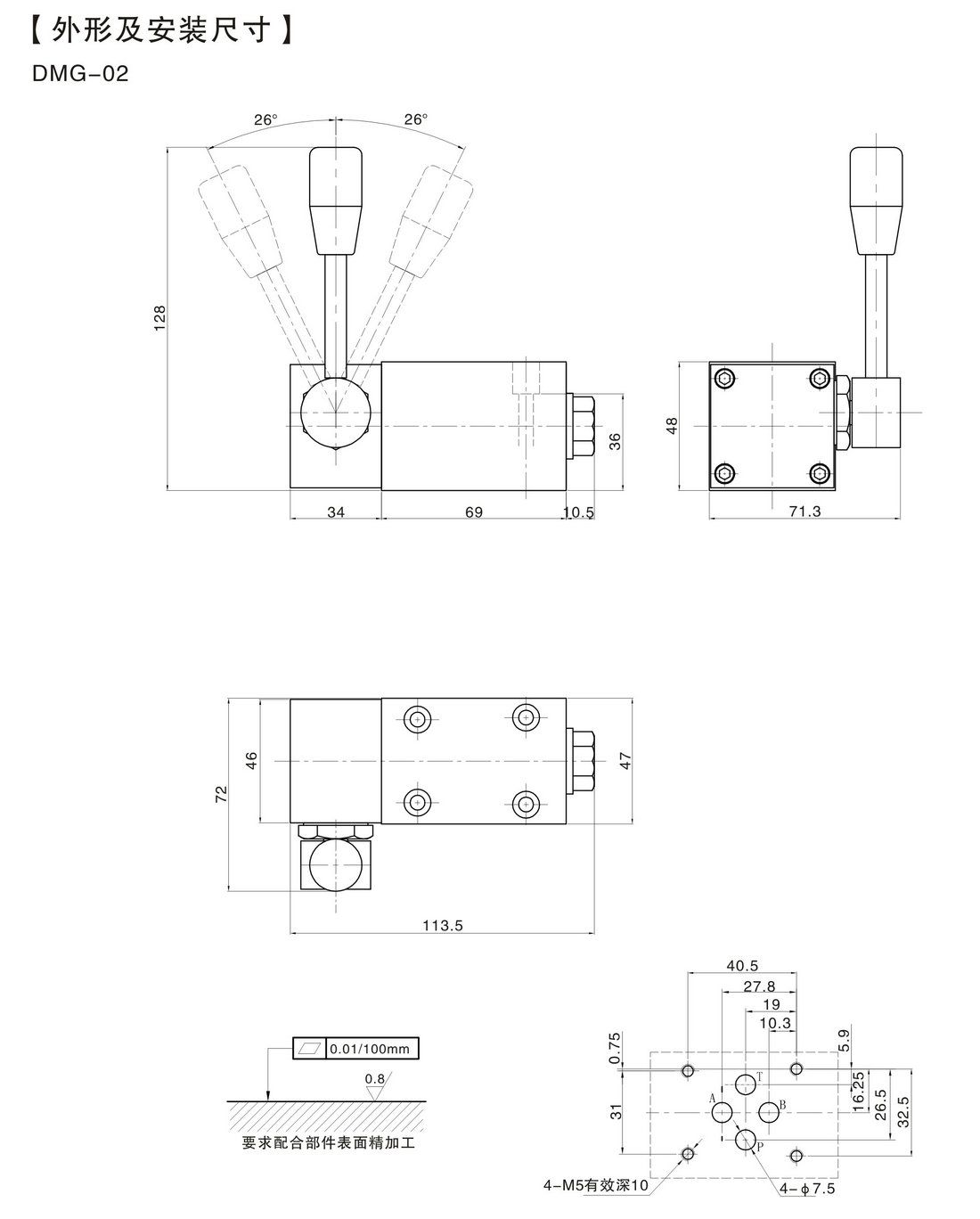

Mounting Size:
Ningbo Histar Hydraulic Co., Ltd. is a professional hydraulic valves manufacturer and exporter. Our factory was established in 2005, with years of development, now it covers an area of 10000 square meters, with 250 skilled workers. The annual production capacity reaches 0.5 million pieces. It is located in Ningbo, the second biggest seaport in China, the transportation is very convenient.
The products include directional valves, proportional valves, pressure valves, modular valves, safety valves, which are widely used in the fields of metallurgy, petrol mine, engineering, architecture, mold, chemical, mechanical tool, traffic and so on. The products have been exported to Europe, Middle East, East Asia, South East Asia, Australia, and gained good reputation due to reliable quality and competitive prices.
We persist in "customer satisfaction" as our core value. With many dedicated technicians and advanced equipments, we can provide customers with high quality products and meet their different requirements. Our products are CE approved, and we have passed ISO9001: 2000 quality system.
Cooperate with us, you will find that we are your right choice!
Ningbo Histar Hydraulic Co., Ltd. is a professional hydraulic valves manufacturer and exporter. Our factory was established in 2005, with years of development, now it covers an area of 10000 square meters, with 250 skilled workers. The annual production capacity reaches 0.5 million pieces. It is located in Ningbo, the second biggest seaport in China, the transportation is very convenient.
The products include directional valves, proportional valves, pressure valves, modular valves, safety valves, which are widely used in the fields of metallurgy, petrol mine, engineering, architecture, mold, chemical, mechanical tool, traffic and so on. The products have been exported to Europe, Middle East, East Asia, South East Asia, Australia, and gained good reputation due to reliable quality and competitive prices.
We persist in "customer satisfaction" as our core value. With many dedicated technicians and advanced equipments, we can provide customers with high quality products and meet their different requirements. Our products are CE approved, and we have passed ISO9001: 2000 quality system.
Cooperate with us, you will find that we are your right choice!
