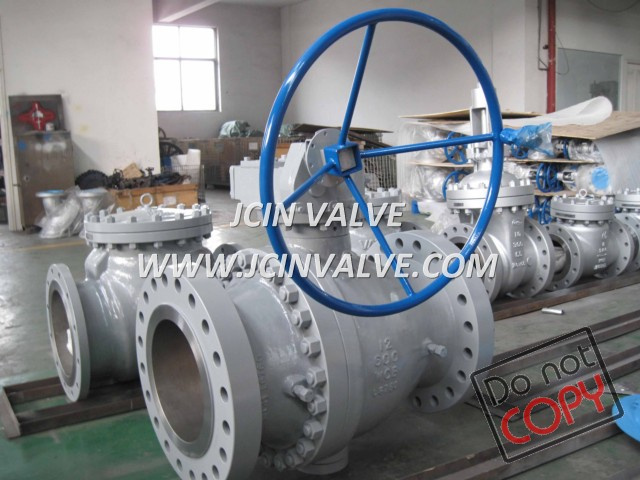

Double Block and Bleed Flanged Ends Ball Valve (Q41F)
| Price: |
US $ 45-50000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Q41F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2" ~ 24" |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
Product Description
Product Details:
Trunnion mounted ball valves are designed in accordance with API 6D featuring 2 pc or 3 pc split body side entry or top entry design. This series of valves are optional designed with Double block and bleed or double piston type. All valves are equipped with sealant injection system for both stem and seats to prevent seat or stem leakage. This product line is used primarily in the Oil & Gas, Building and construction Industries, Chemical and Petrochemical services, among others.
Applicable Standard
Design Standard: API 6D, ASME B16.34
Face to Face: API 6D, ASME B16.10
End Connection: ANSI B16.5, ANSI B16.47, ANSI B16.25
Inspection and Test: API 6D, API 598
Design Features
Full port or reduced port
Trunnion mounted ball
Blowout-proof stem
Double block & bleed
Emergency sealant injection
Cavity pressure self relief
Fire safe design to API 607 / API 6FA
Anti-static to BS 5351
| Size: | 2" ~ 24" |
| Rating: | 150lbs-1500lbs |
| Body Materials: | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
| Trim: | A105+ENP, F6a, F304, F316 |
| Operation: | Lever, Gear, Electric, Pneumatic |
| please contact us for other sizes, pressures & materials. |
JCIN VALVE is a leading manufacturer and supplier of valves for Oil, Gas, and Power Generation industries.
The main products include Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Dual Plate & Strainers, in forged or cast steel. Our product range starts from 1/2" and extends to 36" valves with pressure ratings ANSI / ASME Class 150 to 2500 Lbs, and DIN PN 16 to PN 100.
The highest quality and variety of used materials (Carbon Steels, Low Temperature Carbon Steel, Alloy Steels, Stainless Steels, and other special alloy steel according to ASTM & ASME) can satisfy all the requirements of the Chemical, Petrochemical and Power Plants, Oil and Gas, Off-Shore & On-Shore, Refining, Ship Building, Water Treatment & Energy Generation.
JCIN VALVE's annual sales include 80% for international market, which mainly exported to South Africa, Italy, Poland, Spain, and South America area, we are strive to become a global brand of industrial valve.
At JCIN VALVE, Our main target is to offer a high quality product and service to ensure the highest degree of satisfaction and fidelity of our customers.
JCIN VALVE---Your honest partner on Industrial valve.
JCIN VALVE is a leading manufacturer and supplier of valves for Oil, Gas, and Power Generation industries.
The main products include Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Dual Plate & Strainers, in forged or cast steel. Our product range starts from 1/2" and extends to 36" valves with pressure ratings ANSI / ASME Class 150 to 2500 Lbs, and DIN PN 16 to PN 100.
The highest quality and variety of used materials (Carbon Steels, Low Temperature Carbon Steel, Alloy Steels, Stainless Steels, and other special alloy steel according to ASTM & ASME) can satisfy all the requirements of the Chemical, Petrochemical and Power Plants, Oil and Gas, Off-Shore & On-Shore, Refining, Ship Building, Water Treatment & Energy Generation.
JCIN VALVE's annual sales include 80% for international market, which mainly exported to South Africa, Italy, Poland, Spain, and South America area, we are strive to become a global brand of industrial valve.
At JCIN VALVE, Our main target is to offer a high quality product and service to ensure the highest degree of satisfaction and fidelity of our customers.
JCIN VALVE---Your honest partner on Industrial valve.
