| Prod Model: |
D373H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: |
2" - 48 " |
| Standard Or Nonstandard: |
Standard |
| Certificate: |
ISO9001, CE, RoHS |
| Delivery Time: |
in 45days |
| Warranty: |
12months |
| Connection Form: |
Wafer |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Structure: |
Single-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Household Usage |
| Material Of Seal Surface: |
Soft Sealed |
Product Description
Specifications
1.DN50-1200(2"~48")
2.PN10/16(150/200PSI)
3.API, ANSI, ASME, DIN, BS,JIS, ISO approved
4.material:CI,DI,WCB,SS,ALB,brass,etc.

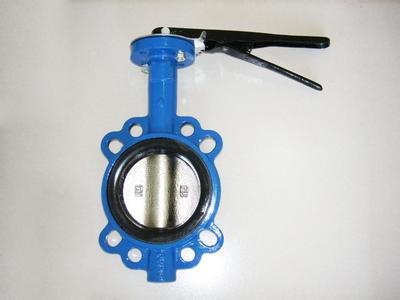

Wafer Type Butterfly Valve with Handle, Wormgear, Pneumatic, Electric Driver
Features:
1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.
Standard:
Design standard |
Face to face |
End flange |
Test & inspection |
MSS SP-67
API609
EN593
|
API609
ISO5752 series 20
BS5155
|
DIN PN10/16/25
ANSI B 16.1
BS4504
ISO PN10/16
JIS B 2212/2213
BS 10 table D
BS 10 table E |
API 598 |
Performance:
PN(MPa) |
DN(mm) |
Testing Pressure
(MPa) |
Applicable Temp. °C
|
Applicable Medium |
Shell |
Sealing |
1.0/1.6 |
DN50 ~ DN1000 |
1.5 |
1.1 |
-45~ 150 |
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc. |
Material List:
Part Name |
Material |
Body | CI/DI/WCB/SS |
| Disc | DI/ALB/WCB/MONEL/CF8/CF8M |
| Stem | SS416/SS304/SS316/WCB |
| Seat | EPDM/BUNA/NBR/NR/PTFE/HYPALON/VITON/NEOPRENE |
