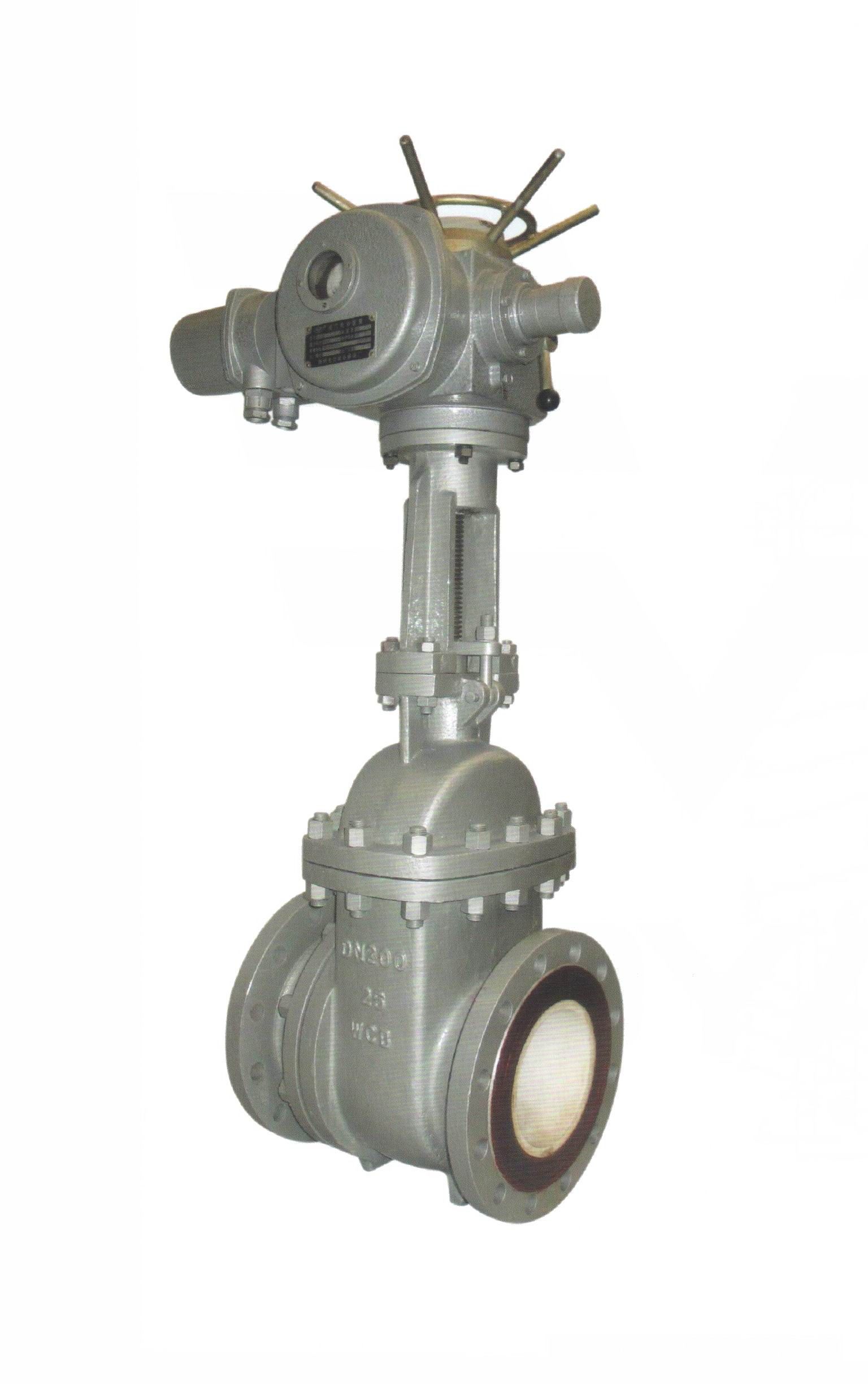

Electric Ceramic Scum / Slag Gate Valve (GPZ41TC)
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
GPZ941TC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Design Pressure: |
Pn10-Pn40 |
Size: |
Dn50-Dn400 |
Connection: |
Flanged |
Medium: |
Dry Ash in Power Plant, Slurry, Cement Ash, Powder |
Suitable Temperature: |
Below 200 Deg C |
Operation: |
Manual, Pneumatic, Electric |
Material: |
Carbon Steel |
Connection Form: |
Flange |
Seal Surface: |
Parallel Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Industrial Usage |
Actuator: |
Manual, Pneumatic, Electric |
Product Description
Electric Ceramic Scum / Slag Gate Valve(GPZ941TC)
Characteristics:
This valve is applicable for high-hardness grains or corrosive media containing soft grains. It's used as an on-off for hydraulic coal transportation, hydralic deslagging and cinder removal and slurry transportation pipelines, with the workint medium being slag water ratio higher >1:5 and the biggest grain ≤5mm. Its working nominal pressure is from PN10 to PN40, and applicable temperature is below 200 Deg C.
All medium-contacting parts are made of structural ceramic with extremely high chemical stability and hardness. Therefore, it has extremetly strong resistance to abrasion, corrosion and erosion, good heat insulation and small thermal expansion.
Its feed inlet is fully through without any blocks, and it has an anti-blcokage blwoing unit, with strong abrasion resistance, a good sealability, a small starting load and little ash seizure or accumulation.
It adopts a high-grade toughened structural ceramic seal, featuring high mechanical strength, strong abrasion resistance, a long service life and a compact structure, which can be installed at any angle.
Special ceramics is different from general ceramics, its hardness even more than steel,
second only to diamond, and corrosion resistant, high temperature resistant!!!!! "" metal
valve with long easy to produce the gap, ceramic valve is not. Because of wear-resisting,
anti-corrosive, sealing strong, ceramic water valve very water saving. "" our valves can be
used 500000 times, if every switch 60 times, can use 22.8 years, this is metal valve can not do it. "
Main Parts and Materials
Sr No. | Parts | Material | Sr No. | Parts | Material |
1 | Body | WCB | 7 | Middle Body | WCB |
2 | Disc | 304+Ceramic | 8 | Packing | Flexible Graphite |
3 | Seat | Ceramic | 9 | Packing Gland | 2Cr13 |
4 | Stem | 2Cr13 | 10 | Bracket | WCB |
5 | Stud | 35CrMoVA |
|
|
|
6 | Nut | 25 |
|
|
|
Application Specification
1. Design and Manufacture: Manufacturer's Standard
2. Face to Face Dimension: GB/T 12221
3. Flange Dimension: GB/T 9113.1, ANSI B16.5 DIN 2543, JIS B2020
4. Inspection and Test: GB/T 9092
5. Material Standard: GB/T 12229 for Carbon Steel, GB/T 12230 for Stainless Steel
Main External and connecting Dimensions
DN | PN | L | D | D1 | C | H | n-d |
|
50 | 10 | 250 | 160 | 125 | 16 | 520 | 4-18 |
|
65 | 250 | 180 | 145 | 18 | 595 | 4-18 |
|
80 | 280 | 195 | 160 | 20 | 635 | 8-18 |
|
100 | 300 | 215 | 180 | 20 | 630 | 8-18 |
|
125 | 300 | 245 | 210 | 22 | 715 | 8-18 |
|
150 | 350 | 280 | 240 | 24 | 840 | 8-23 |
|
175 | 350 | 310 | 270 | 26 | 885 | 8-23 |
|
200 | 400 | 335 | 295 | 26 | 1155 | 8-23 |
|
250 | 450 | 405 | 350 | 30 | 1400 | 8-23 |
|
300 | 500 | 460 | 400 | 30 | 1800 | 12-23 |
|
