| Prod Model: |
CKD60/JW200 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

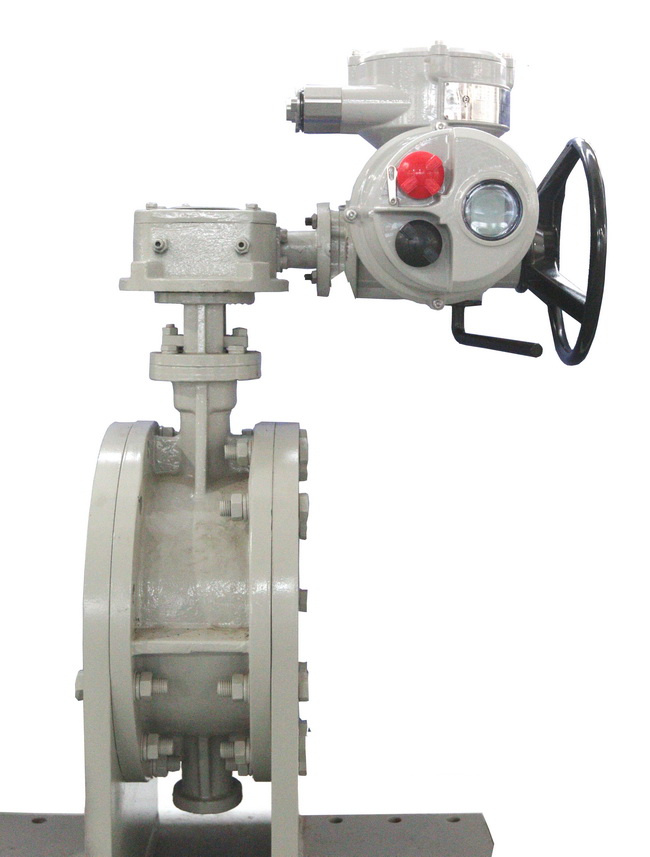

Actuator with reducer
Torque: 21000N. M 75rpm, 380V
Yangzhou Hengchun was founded in 1994. The registered capital was 10 million dollars, total assets of 25 million dollars.
Our company manufacture CKD series intelligent actuator which can be used in gas&oil company, power plants, metallurgy industry, chemical industry and water treament.
We are now have the top class products quality in China.
In the aspect of oil, our products have been used in more than 300 projects with Petrochina, Sinopec, Sinochem and CNOOC.
In the aspect of power plants, our products are the main supplier of the top 5 power plants in over 200 projects
We knew how to made good products and we believe customers' satisfaction is the first thing.
Technical Parameters
|
|
Working environments |
Temperature: -30'C~+70'C(can be customized to -45'C~+85'C)
Relatively humidity: 95%(25'C)
Pressure: 86kPa~106kPa |
|
Power Supply |
Single phase: 220V 50Hz Three phase:380V 50Hz
Tolerance: Single phase Voltage(-15%/+10%) Three phase Voltage(±10%)
Frequency(±5%), harmonic content (<5%), Direct Current (±10%) |
|
Insulation resistance |
1) Resistance between input terminal and case should be more than 20M .
2) Resistance between input terminal and power supply terminal should be more than 50M .
3) Resistance between power supply terminal and case should be more than 50M . |
|
The motor insulation level |
Level F(Level H is selectable) |
|
Protection level |
IP68(underwater 20M\96hours) |
|
Anti-explosion level |
EXD IIBT4\EXD IICT4 |
|
|
|
On-Off Type |
|
Start frequency |
650 times per hour |
|
Designed lifetime |
Minimum maintenance-free time:30,000 times |
|
Working form |
Short time working type, rated run time will be 15mins(customized to 30mins) |
|
|
|
Regulated Type |
|
Start Frequency |
1200 times per hour |
|
Designed lifetime |
No less than times |
|
Working form |
Intermittent periodic-type, minimum rated load sustained rate is 25% |
|
Basic parameters |
Basic error: ≤ ±0.1%
Hysteresis: ≤ 0.5%
Dead zone: 0.1%~9.9% continuously adjustable
Damping characteristic: undamped |
|
Input and output signal |
Analogue input 4-20mADC, input impedance ≤ 250 ;
Analogue output4-20mADC, load resistance ≥ 750 ;
Linear error ≤ 0.5%;
Supply voltage: 24VDC provided by internal actuator;
Actuator with a build-in servo amplifier;
Input and output signal channel take optoelectronic isolation ;
Passive junction capacity: 250V/5A AC; 30V/5A DC.
|
Yangzhou Hengchun Electronics Co., Ltd is a joint-stock company mainly based on the development, manufacture and sales about mechatronics, electro communication and softwares. The registered capital was 10 million dollars, total assets of 25 million dollars.
Yangzhou Hengchun was founded in 1994. The head office is located in Yangzhou Hanjiang Industry Park in Jiangsu Province. Hengchun has an automated production line, a exquisite supervisory system, all kinds of experienced detection equipments and production equipments.
Hengchun can now provide an annual output of 15, 000 units of electrical actuators which can totally meet the power industry, metallurgy industry, oil industry, chemical industry, water-related industry and other machinery industries. Our products have been sold well throughout the country and some oversea markets.
Yangzhou Hengchun Electronics Co., Ltd is a joint-stock company mainly based on the development, manufacture and sales about mechatronics, electro communication and softwares. The registered capital was 10 million dollars, total assets of 25 million dollars.
Yangzhou Hengchun was founded in 1994. The head office is located in Yangzhou Hanjiang Industry Park in Jiangsu Province. Hengchun has an automated production line, a exquisite supervisory system, all kinds of experienced detection equipments and production equipments.
Hengchun can now provide an annual output of 15, 000 units of electrical actuators which can totally meet the power industry, metallurgy industry, oil industry, chemical industry, water-related industry and other machinery industries. Our products have been sold well throughout the country and some oversea markets.
