Electric Sanitary Valve
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Prod Model: |
KT-Q981F-10P |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
3/8"-4" |
Place Of Origin: |
China |
Ball Assembly: |
Side Entry |
Driving Way: |
Pneumatic,Normally Closed |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Material: |
Stainless Steel |
Application: |
Water Industrial Usage |
Connection Form: |
Clamped |
Product Description

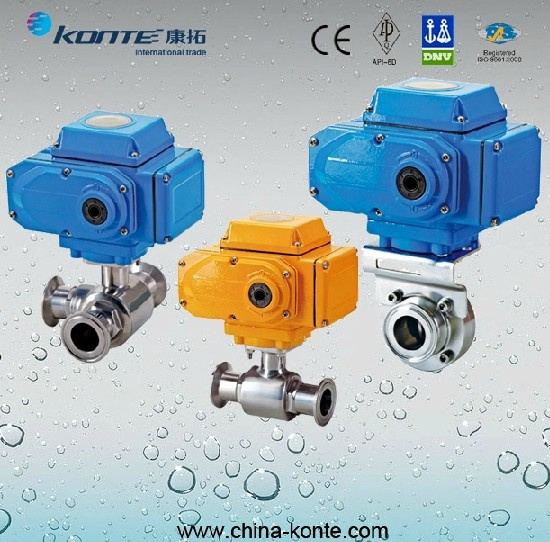

Electric Sanitary Valve
Features
1. Voltage: 24VAC, 110VAC, 220VAC, 380VAC, 24VDC
2. Type: On-off, regulating
3. Sanitary level
Specifications
Electrical Sanitary Ball Valve (Clamp)
1). Nominal Diameter: DN15-100
2). Pressure Range: 0-1.0MPa
3). Medium Temp.: -20° C~+180° C
4). Ambient Temp.: -20° C~+60° C
5). Valve Material: Stainless Steel
6). Sealing Material: PTFE
7). Actuator Cover: Aluminum Alloy
8). Controlling Voltage: AC24V, 110V, 220V, 380V, DC24V
9). Type: On-off, Regulating
10). Manufacture Standard: GB, DIN, ISO, SMS
11). Applicable Medium: Water, air, oil, acid, alkali, etc
Electrical Sanitary Butterfly Valve (Clamp)
1). Nominal Diameter: DN25--102
2). Pressure Range: 0-1.0MPa
3). Working Temp.: -20° C-+120° C
4). Valve Body Material: Stainless steel
5). Sealing Material: NBR, EPDM, FPM
6). Disc Material: Stainless steel
7). Feature: Double bubble & zero leakage
8). Applicable Medium: Drinking water, sewage, high-purity water
9). Voltage: AC 24V, 110V, 220V, 380V, DC24V
10). Type: On-off, regulating
Contact
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact us.
Contact Person: Ada hu
Brand: |
KT/OEM |
Applicable Media: |
Water, Oil, Gas, Nitric Acid, Acetic Acid |
Normal Pressure: |
0-1.0MPa |
Applicable Temp: |
-20 °C -+120 ° C |
Certification: |
CE/API/DNV/FDA/ISO9001-2008 |
Sample Testing: |
One Sample for free( Under $10),Freight Collect |
Packing: |
Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
Payment: |
T/T, L/C, D/P, Western Union, Paypal |
Port: |
NINGBO/SHANGHAI, Customers' Request |
Delivery Time: |
Within 35days after receiving T/T deposit Payment |
Term of Delivery: |
FOB/CNF/CIF, Customers' Request |
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.
Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).
With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.
We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.
Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).
With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.
We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
