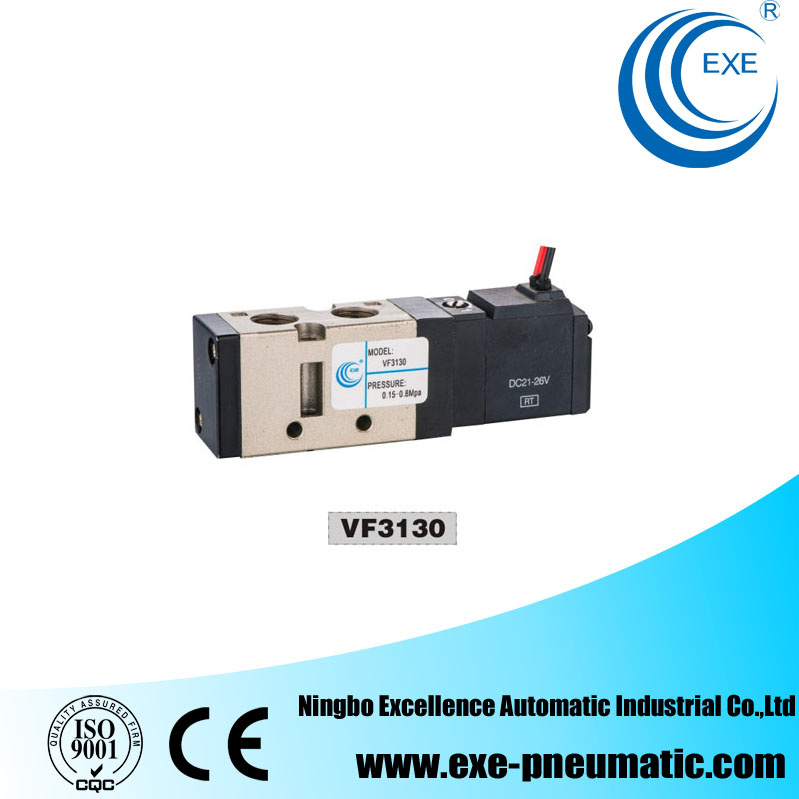

Exe Vf Series Two Position Five Way Solenoid Valve Vf3130
| Price: |
US $ 2.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
Solenoid Valve VF3130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 CE, RoHS |
| Thread Standard: |
NPT, BSPT, Bsp |
| Export Markets: |
Global |
| Voltage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Pilot Operated: |
1.2MPa |
| Thread: |
G1/8, G1/4, G3/8 |
| Way: |
5 Way 2 Position |
| Lead Time: |
15-20 Days |
| Guarantee: |
One Year |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Membrane Structure |
| Application: |
Household Usage |
| Power Supply: |
DC/AC Soleniod Valve |
Product Description
Product Description VF Series Solenoid Valve VF3130 VF5120 1: VF3 Series VF5 Series and VZ5 Series2: VF, VZ single-coil Double-position, Double-coil Double-position or Double-coil Three-position close center/Exhaust center/Pressure center3: connector and lead wire for your option4: DC12/24V, AC 24/110/220/380V for your option5: Manifold: VF3000M for VF3 Series, VF5000M for VF5 Series and VZ5000M for VZ5 Series Features 1. Integral slot piston structure2. Process valve hole with special high precision finishing process3. Beautiful appearance4. Good reverser5. Reliable performance6. Seal wear can automatic compensate| Model | VF3130 |
| Position and way NO. | 5/2 way |
| Effective area | 16mm2(CV=0.89) |
| Fluid | 40 micron fi ltered air |
| Operation | Inside pilot type |
| Operating pressure | 0.15-0.8MPa |
| Proof pressure | 1.2MPa |
| Operation temperature | 5~50 C |
| Allowable boltage | ±10% |
| Power consumption | AC: 5.5VA DC: 4.8W |
| Coil insulation &protection grade | Class F.IP65 |
| Electriacl entry | Lead wire or connector |
| Higest action frequency | 5 cycle/second |
| Shortest excitation time | 0.05 second |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
