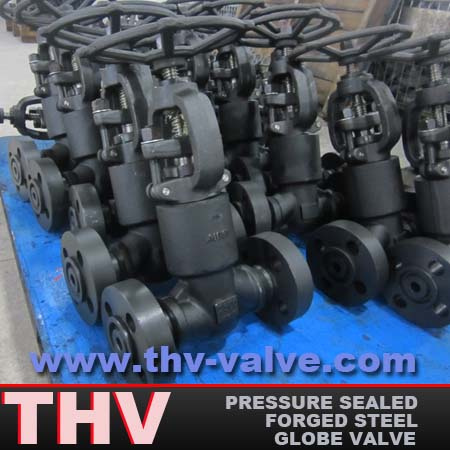

Flanged Type Forged Steel Pressure Sealed Globe Valve
| Price: |
US $ 310-320/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
THPSFSJ41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Pressure Sealed Design |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
JIS |
| Application: |
Forged Steel Globe Valve |
Product Description
Pressure sealed valves are available in gate, globe and check design valves. This valve is threaded and pressure seal bonnet. Shape can be T shape or Y shape.
Construction is as follows
Standdards:
Design and manufacturing: MSS-SP-118
Testing according to API 598
Face to Face according to ANSI B16.10

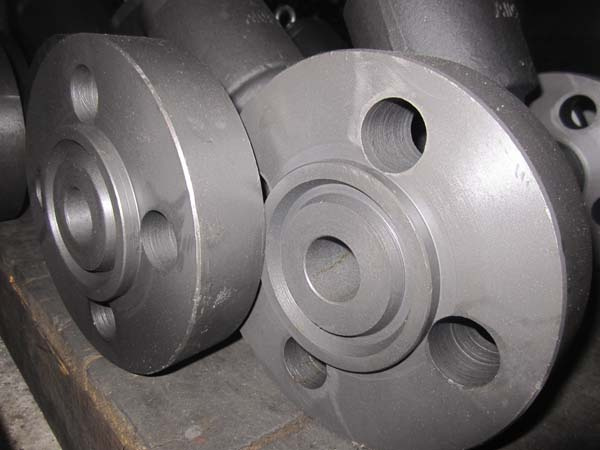

Flanges according to ANSI B16.5
Socket end conform to ANSI B16.11.
Thread end conform to ANSI B1.20.1.
Butt-welded end conform to ANSI B16.25.
Marked as per MSS SP-25.
Product Description:
Full Port or Standard Port
Outside Screw and Yoke (OS&Y)
Size: from 1/2 inch to 3 inch
Rating: Class1500 to Class 2500
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.
Bellow Materials: Stainless Steel, Inconel, Hastelloy, C276, Monel, etc.
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
Type A105 |
Type A182 F22 |
Type F34(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Stem |
A182 F6 |
A182 f304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Pressure Seat |
A105 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Pressure Ring |
A182 F304(L) |
F316L |
|
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
Pin |
A276 420 |
A276 304 |
|
8 |
P.S.Washer |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
9 |
P.S.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
10 |
Stem Packing |
Flexible Graphite |
PTFE |
|
11 |
Gland |
A276 420 |
A182 F304 |
|
12 |
Gland Flange |
A216 WCB |
A351 CF8 |
|
13 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
14 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Yoke Nut |
A276 410 |
|
16 |
Handwheel |
A197 |
|
17 |
Nameplate |
SS |
|
18 |
H.W.Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
