| Prod Model: |
Q341H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: |
Standard |
| Size: |
1/2''-10'' |
| Certificate: |
ISO9001, CE, RoHS |
| Delivery Time: |
in 45days |
| Warranty: |
18months |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |

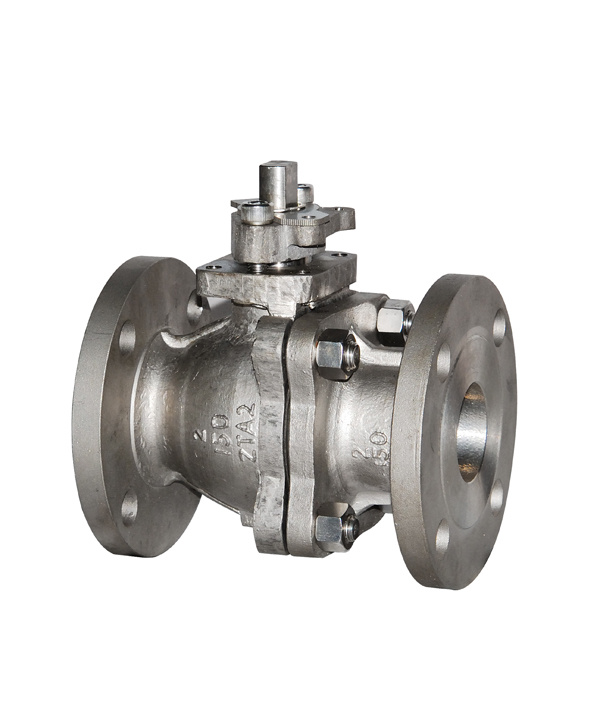

Product Description
Specification:
1. Titanium Ball Valve Material:
* TA1, TA2, TA10, GrF2, GrF3
2. Titanium Ball Valve Pressure rating and size:
* API, ANSI, ASME, MSS, BS, DIN, JIS
* 150#~900# : 1/2"~10"
3. Titanium Ball Valve Features:
* Design - API 608/ API 6D/ BS5351/ ANSI B16.34/ ISO 14313/MSS SP 72
* Face to Face & End to End - ASME B16.10/ ISO5752
* Flanged Ends - ASME B16.5/ ISO7005-1/ API 605/ BS 3293/ DIN
* Test - API 598
* Seat - TA1,TA2,Gr2,Gr3
* Bore - Full Bore/ Reduced Bore
* Fabrication - One Piece/ Two Pieces/ Three Pieces Body
4. Titanium Ball Valve Applications:
* Oxidizing corrosive media
5. Titanium Ball Valve Structure:
* 2 pieces or 3 pieces body type
* Floating ball or trunnion mounted ball
* Metal sealing
* Full bore ( FB ) or reduced bore ( RB )
6. Titanium Ball Valve Temperature rating:
* -45°C - + 650 °C or above
7. Titanium Ball Valve Operators and option:
* Pneumatic / Electric/ Worm Gear/ Locking Device/ Lever etc.
8. Titanium Ball Valve CERTIFICATES :
* API 6D, API 6FA, CE, ISO 9001
9.The main material to choose from :
Parts | Material |
| Body&Bonnet |
TA1,TA2,TA10,GrF2,GrF3 |
Ball | TA1,TA2,TA10,TC4,GrF2,GrF3,GrF5 |
| Stem | TA1,TA2,TA10,TC4,GrF2,GrF3,GrF5 |
| Seat | TA1,TA2,Gr2,Gr3 |
