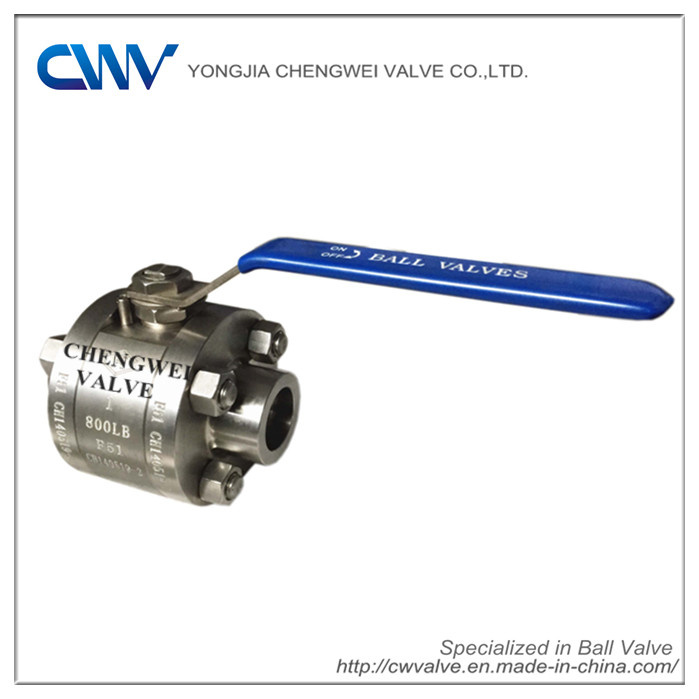

Floating Forged Stainless Steel Ball Valve with Swxnpt Ends
| Price: |
US $ 50-800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Q6/11F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1" |
| Pressure: |
800lb |
| Body: |
F51 |
| Operation: |
Handle |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Connection Form: |
Swxnpt |
Product Description
Size : 1/4~4"(DN8~DN100)
Rating : 150LB~2500LB (PN16 ~ PN420)
Connection:NPT, SW
Working Temperature:-46~425ºC
Seat:PTFE,RPTFE,NYLON,MOLON,PEEK,DEVLON,POM,PCTFE,PPL,
STL NI60,STL NI55,STL20#,STL6,WC,TCC
Material:
A105,LF2,F304,F316,F316L,F304L,F321,F51,F53,F55,F60,F6a, 20 Alloy,
C61900,C63200,C83600,C37700,Inconel625,Inconel825,Monel400,Monel500,H.C-276ect.
Application Specifications:
1.Design and manufacture conform to BS5351;MSS SP-118
2.Socket welded ends conform to ANSIB16.11;JB/T1715
3.Screw ends conform to ANSI B1.12.1;JB/T7306
4.Butt-welded ends conform to ANSI B16.25;JB/T12224
5.Test and inspection conform to API598;GB/T13927;JB/T9092
6.Material conform to ANSI/ASTM
Features:
1.Three Pieces Forged Body
2.Floating Type
3.Blow-out Proof Stem
4.Fire Safe Design
5.Anti-Static Device
6.Interlocking Device
| NO | PART NAME | CARBON STEEL | STAINLESS STEEL |
| 1 | BODY | A105 | F304 | F316 | F316L |
| 2 | BALL | SS304 | SS316 | SS316L |
| 3 | STEM | SS304 | SS316 | SS316L |
| 4 | SEAT | PTFE,RPTFE,NYLON |
| 5 | GASKET | O-RING,PTFE,GRAPHITE |
| 6 | STUFFING | PTFE,GRAPHITE |
| 7 | GASKET | PTFE |
| 8 | LOCATING PIECE | A283D,STAINLESS STEEL |
| 9 | LEVER | A283D,STAINLESS STEEL |
| 10 | STEM NUT | STAINLESS STEEL A276-T304 |
| 11 | STOP PIN | STAINLESS STEEL A276-T304 |
| 12 | NUT | A194-2H | A194-8 |
| 13 | STUD BOLT | A193-B7 | A193-B8 |
We welcome all the world customers to contact us for more cooperation.
CHENGWEI VALVE will be one of your best parters in China.
Chengwei valve is located in the Anfeng Industrial Zone, Oubei Town, Wenzhou City, Which is "Hometown of Pump and Valve in China". It's a professional valve manufacturing enterprise, combined with scientific research, manufacturing and sales. Our company, adhering to business concept of "Taking quality as the life, and meeting customer's requirements as the priority", provides customer's with outstanding quality, ideal price, complete varieties and timely delivery and excellent after-sales service. As a result, our products have been well-received by customers, and sold to domestic and foreign markets.
Our company with excellent equipment, strong technical force, complete testing facilities, widely applies GB, API, ANSI, DIN, BS and JB manufacturing standard for its products. Main products: API forged steel valve series, forged steel ball valves, Y-strainer, gate valves, globe valves, check valves and other products, which are widely used in petroleum, metallurgy, chemical, electric power, mining, food, pharmacy, construction, environmental protection, paper manufacturing and other industries.
Our company will continue to actively develop new products through new technologies, new processes, and new materials, to provide quality valve products with first-class quality and perfect price to customer. Valve Materials: A105, LF2, F304, F304L, F316, F316L, F51, F53, F55 etc.
We welcome clients both from home and abroad visiting, guiding and business talking. We sincerely hope a long term cooperation with you. CHENGWEI VALVE will be one of your best parters in China.
Chengwei valve is located in the Anfeng Industrial Zone, Oubei Town, Wenzhou City, Which is "Hometown of Pump and Valve in China". It's a professional valve manufacturing enterprise, combined with scientific research, manufacturing and sales. Our company, adhering to business concept of "Taking quality as the life, and meeting customer's requirements as the priority", provides customer's with outstanding quality, ideal price, complete varieties and timely delivery and excellent after-sales service. As a result, our products have been well-received by customers, and sold to domestic and foreign markets.
Our company with excellent equipment, strong technical force, complete testing facilities, widely applies GB, API, ANSI, DIN, BS and JB manufacturing standard for its products. Main products: API forged steel valve series, forged steel ball valves, Y-strainer, gate valves, globe valves, check valves and other products, which are widely used in petroleum, metallurgy, chemical, electric power, mining, food, pharmacy, construction, environmental protection, paper manufacturing and other industries.
Our company will continue to actively develop new products through new technologies, new processes, and new materials, to provide quality valve products with first-class quality and perfect price to customer. Valve Materials: A105, LF2, F304, F304L, F316, F316L, F51, F53, F55 etc.
We welcome clients both from home and abroad visiting, guiding and business talking. We sincerely hope a long term cooperation with you. CHENGWEI VALVE will be one of your best parters in China.
