| Prod Model: |
Z61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"--3" |
| Nominal Pressure: |
800lb |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
| Connection Form: |
Sw |
Product Description

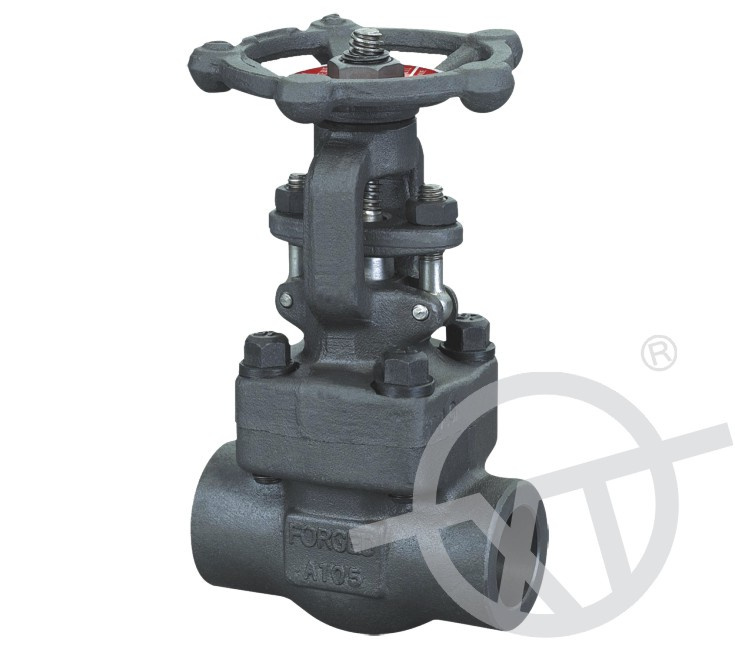

Forged Steel Gate Valve
1. BB - Bolted bonnet
2. OS&Y - outside screw and yoke
3. Bolted Gland
4. Metal-graphite Spiral wound gasket between the Bonnet & Body
5. Graphite stem packing
6. Socket welding: ANSI B16.11
Screw ends: ANSI B1.20.1
Butt welding: ANSI B16.25
7. Forged Steel Gate Valves conform to API 602, BS5352 and ASME B 16.34. Each valve is inspected and tested in accordance with API 598, and marked per MSS SP25.
8. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
