Full Welded Ball Valve
Price: |
US $ 50-1800000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Prod Model: |
B3-BV-067 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Operation: |
Manual, Power, Pneumatic, Pneumatic-Hydraulic |
Pn: |
5~500 |
Size: |
Dn50~1050(2"~42") |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Application: |
Oil and Gas Industry |
Driving Mode: |
Handwheel,Gear,Actuator |
Function: |
Open and Close |
Material: |
Cast Steel, Carbon Steel, Low Temperature Steel |
Nominal Pressure: |
Class150~Class3000 |
Product Description

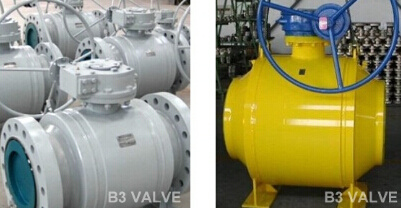

B3 fully welded ball valves are widely used in oil, nature gas pipelines and the industries of liquefied gas, coal gas, etc. as open/close control valves. The fully welded body design has no bolted bonnet or body joints that can ensure no potential body joint leak for environmental concern. Also forged steel body assures uniform fine grain structure and toughness free from inevitable cast valves defects such as porosity, gas hole. The design of seat seal uses unique two-level soft seal and metal to metal seal to form triple sealing; the design of seat piston is accurately calculated to ensure seal reliability with small open/close torque and easy operation.
Applicable StandardDesign Standard | API 6D, ASME B16.34, BS 5351, API 608, MSS SP-72 |
Face to Face | ASME B16.10, API 6D, EN 558 |
End Connection | ASME B16.25, ASME B16.5, DIN 2501 |
Inspection and Test | API 6D, API 598 |
Products RangeSize: 2" ~ 42"(DN50 ~ DN1050)
Rating: ANSI 150lb ~ 1500lb
Body Materials: Forged carbon steel, Forged Stainless Steel
Trim: A105+ENP, 13Cr, F304, F316
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic
Design FeaturesFull bore or reduced bore design
Forged body and ball, welded body
Double block & bleed
Trunnion mounted ball, Blowout-proof stem
Emergency sealant injection
Cavity pressure self relief
Fire safe design to API 607/API 6FA
Anti-static to BS5351
B3 VALVE Group Company is a leading manufacturer of industrial valves in China. All products are designed and manufactured completely as per international standards and selling them well in global markets. Today, more than 90% of our valves are exported to Western European countries, North America, Japan, Middle East of Asia, Australia, etc, and widely used in the fields as Oil & Gas, Refinery, Chemical and Petrochemical, Power Generation, Water and waste water treatment industrial, etc.
We keep in mind that for valves, quality is always the most important. In order to make sure that our customers receive good quality products, we have established strict quality control systems. Now our factories are certified by ISO9001, API6D, CE, AZ, etc. As castings/forgings are the key point for valves quality, all our subcontracted foundries/forging plants are also CE certified and pre-audited to be approved by our own inspectors.
Nowadays, B3 VALVE has over 30 quality control engineers and more than 200 skilled workers. All valves are produced as per relevant international standards. We have labs for material chemical composition analysis and quality examination equipments, such as RT, UT, MT, PT, Fire-safe test etc to guarantee all material tests and each valve should be pressure tested to be satisfactory before delivery. Material test report and pressure test report as per EN 10204 3.1. B will be supplied with our valves.
Concerning quality guarantee, our usual guarantee period is 18 months from delivery date, we can guarantee that our valve will work well in their life circle and we will be responsible for any valves we sold. Our aim is to produce "zero leakage" and "long reliable service life" valves to minimum the "Total Costs".
We always devote to provide the first class valve product and services of fine character and high ratio of performance-price for the current industry. We also know we need to have a whole set of strong and high effective quality management system in order to assure the high character of the products, meanwhile we make solemn quality promises to all of our products with high responsible attitude, ensure its products to be in compliance with international and area relative product standards, meet the requirements of the current industry.
So all our valve products are designed strictly according to the international newest product standards and continuously improve and upgrade designing ideal, manufacturing process, quality management level in order to realize the quality promises and always make B3 VALVE to be the first class valve manufacturer and solution provider both domestically and abroad.
