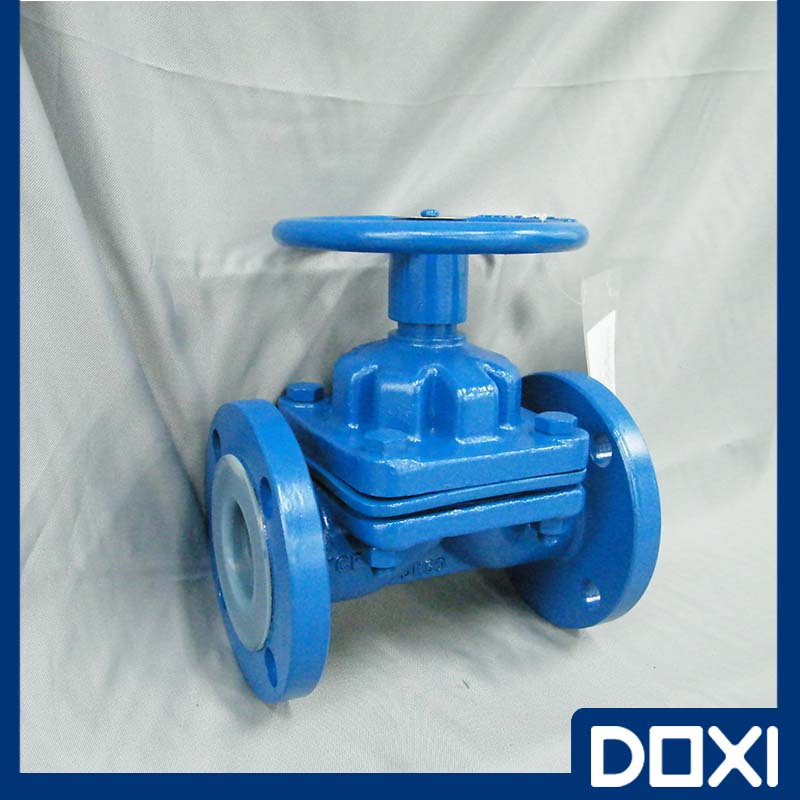

Handwheel Anti-Corrosive PFA Lined Diaphragm Valve
| Price: |
US $ 150/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
DOXI G41 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Wcb |
| Diaphragm: |
PTFE |
| Operation: |
Hand Wheel |
| Material: |
Cast Steel |
| Structure: |
Weir Diaphragm Valve |
| Actuator: |
Manual |
| Connection: |
Flanged Diaphragm Valve |
| Standard: |
JIS |
Product Description
DOXI VALVE
Lined Diaphragm Valve
The DOXI ® Diaphragm Valves having rugged design to incorporate the best material available are proved by easy, smooth and maintenance free operation for a long time. Extra heavy-duty casting affords hign resistance to atmospheric corrosion. DOXI diaphragm valves reduce diaphragm travel for extented service and fine control.
|
DIAPHRAGM |
|
|
|
|
|
|
|
|
|
|
DN |
NPS |
Dimensions in mm |
Weight |
CV |
|
ASME B16.5 |
JIS B2212 10K |
DIN2532 PN10 |
|
[mm] |
[in] |
L |
f |
L |
f |
L |
f |
[kg] |
|
15 |
0.5 |
125 |
3 |
125 |
3 |
125 |
3 |
3.5 |
10 |
|
20 |
0.75 |
135 |
3 |
135 |
3 |
135 |
3 |
4 |
12 |
|
25 |
1 |
145 |
3 |
145 |
3 |
145 |
3 |
5.5 |
17 |
|
32 |
1.25 |
160 |
3 |
160 |
3 |
160 |
3 |
8 |
27 |
|
40 |
1.5 |
180 |
3 |
180 |
3 |
180 |
4 |
11 |
39 |
|
50 |
2 |
210 |
3 |
210 |
3 |
210 |
4 |
14 |
70 |
|
65 |
2.5 |
250 |
3 |
250 |
3 |
250 |
4 |
23 |
125 |
|
80 |
3 |
300 |
4 |
300 |
3 |
300 |
4 |
29 |
180 |
|
100 |
4 |
350 |
4 |
350 |
3 |
350 |
4 |
46 |
305 |
|
125 |
5 |
400 |
4 |
400 |
4 |
400 |
4 |
70 |
412 |
|
150 |
6 |
460 |
4 |
460 |
4 |
460 |
4 |
90 |
712 |
|
200 |
8 |
570 |
4 |
570 |
4 |
570 |
4 |
160 |
1011 |
|
250 |
10 |
680 |
4 |
680 |
4 |
680 |
4 |
230 |
1840 |
|
300 |
12 |
790 |
5 |
790 |
5 |
790 |
5 |
320 |
2435 |

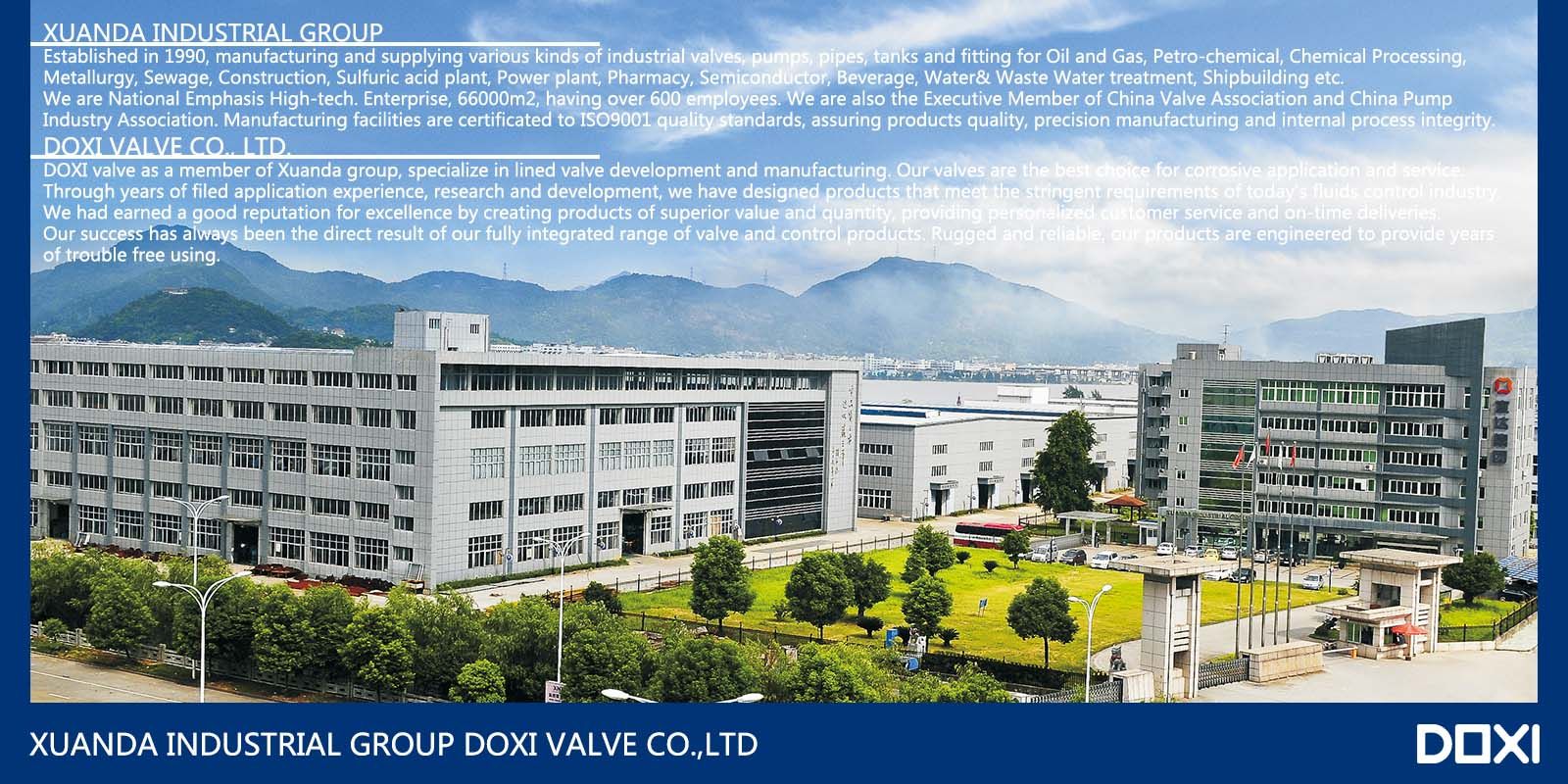

XUANDA INDUSTRIAL GROUP
Established in 1990, manufacturing and supplying various kinds of industrial valves, pumps, pipes, tanks and fitting for Oil and Gas, Petro-chemical, Chemical Processing, Metallurgy, Sewage, Construction, Sulfuric acid plant, Power plant, Pharmacy, Semiconductor, Beverage, Water& Waste Water treatment, Shipbuilding etc.
We are National Emphasis High-tech. Enterprise, 66000m2, having over 600 employees. We are also the Executive Member of China Valve Association and China Pump Industry Association. Manufacturing facilities are certificated to ISO9001 quality standards, assuring products quality, precision manufacturing and internal process integrity.
DOXI VALVE Co., Ltd.
DOXI valve as a Member of Xuanda group, specialize in lined valve development and manufacturing. Our valves are the best choice for corrosive application and service.
Through years of filed application experience, research and development, we have designed products that meet the stringent requirements of today' S fluids control industry. We had earned a Good reputation for excellence by creating products of superior value and quantity, providing personalized customer service and on-time deliveries. Our success has always been the direct result of our fully integrated range of valve and control products. Rugged and reliable, our products are engineered to provide years of trouble free using.
XUANDA INDUSTRIAL GROUP
Established in 1990, manufacturing and supplying various kinds of industrial valves, pumps, pipes, tanks and fitting for Oil and Gas, Petro-chemical, Chemical Processing, Metallurgy, Sewage, Construction, Sulfuric acid plant, Power plant, Pharmacy, Semiconductor, Beverage, Water& Waste Water treatment, Shipbuilding etc.
We are National Emphasis High-tech. Enterprise, 66000m2, having over 600 employees. We are also the Executive Member of China Valve Association and China Pump Industry Association. Manufacturing facilities are certificated to ISO9001 quality standards, assuring products quality, precision manufacturing and internal process integrity.
DOXI VALVE Co., Ltd.
DOXI valve as a Member of Xuanda group, specialize in lined valve development and manufacturing. Our valves are the best choice for corrosive application and service.
Through years of filed application experience, research and development, we have designed products that meet the stringent requirements of today' S fluids control industry. We had earned a Good reputation for excellence by creating products of superior value and quantity, providing personalized customer service and on-time deliveries. Our success has always been the direct result of our fully integrated range of valve and control products. Rugged and reliable, our products are engineered to provide years of trouble free using.
