High Efficiency Motor Actuated Ss Ball Valve
| Price: |
US $ 100-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Automatic Control |
| Certification: |
CE |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Continuous |
| Mathematical Model: |
Linear |
| Material: |
Aluminum Alloy |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Product Explanation:

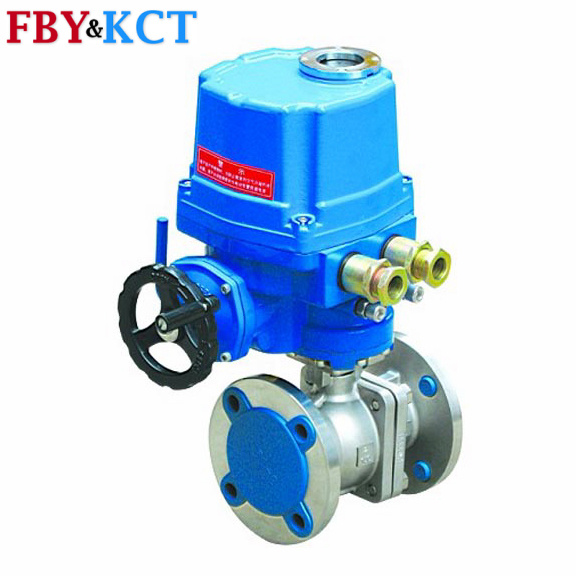

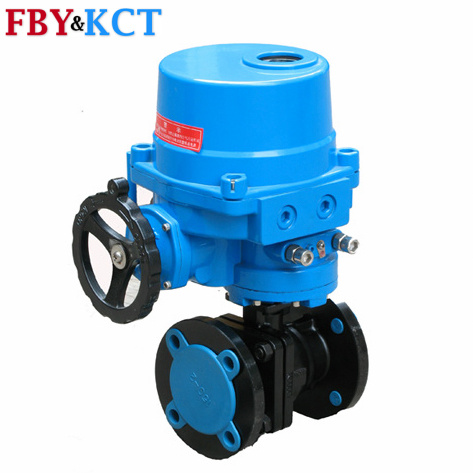

Motor Actuated Ball Valve
Motor Actuated Stainless Steel Ball Valve
Features:
With ISO5211 direct mounting pad, Full silicasol technology
Anti-static devices for ball-stem body
Blow-out proof stem
Double stem sealing to comply with TA-LUFT requirements
Pre-load 2 belleville washer to self-adjust packing
Standards Application:
Design and Manufacture: API 608, API 6D, BS5351
Face to face(end to end): ANSI B16.10, API 6D
Flanged connection: ANSI B16.5
Fire-safe: API 607, API 6FA
Test and inspection: API 598, API 6D
|
No. |
Parts Description |
Material |
|
1 |
Body |
CF8M |
CF8 |
WCB |
Ti |
|
2 |
Bonnet |
CF8M |
CF8 |
WCB |
Ti |
|
3 |
Ball |
SS316 |
SS304 |
Ti |
|
4 |
Seat |
PTFE RPTFE PPL |
|
5 |
Nut |
A193-B8 |
A193-B7 |
A193-B8 |
|
6 |
Stem |
SS316 |
SS304 |
2Gr13 |
Ti |
|
7 |
Anti-Static |
SS304 |
|
8 |
Thrust Washer |
PTFE Expanded Graphite |
|
9 |
Packing |
PTFE Expanded Graphite |
|
10 |
Transition Washer |
RPTFE Expanded Graphite |
|
11 |
Packing Ring |
SS304 |
|
12 |
Belleville Washer |
SS304 |
|
13 |
Nut |
SS304 |
|
14 |
Loose Resistant Cover |
SS304 |
|
15 |
Nut |
SS304 |
|
16 |
Handle (1/2" ~3" ) |
SS304 |
|
17 |
Handle Cover (1/2" ~3" ) |
Plastic |
|
18 |
Stop Plate (1/2" ~3" ) |
SS304 |
|
19 |
Seal Washer |
PTFE Expanded Graphite |
|
20 |
Steel Tube (4" ~8" ) |
Galvanizde Steel Tube |
|
21 |
Spanner (4" ~8" ) |
CF8 |
|
22 |
Stop Bolt |
SS304 |
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
