| Prod Model: |
D73 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Structure: |
Double-Eccentric Sealing |
| Seal Form: |
Auto Sealed |
| Working Temperature: |
High Temperature (',T>450??C) |
| Application: |
Household Usage |
| Connection Form: |
Wafer, Lug Support, Flange, Welding |

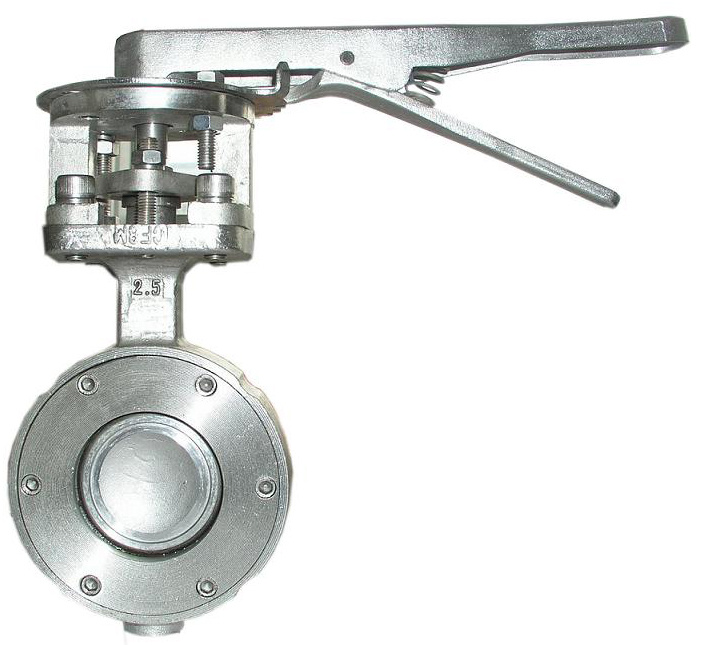

Product Description

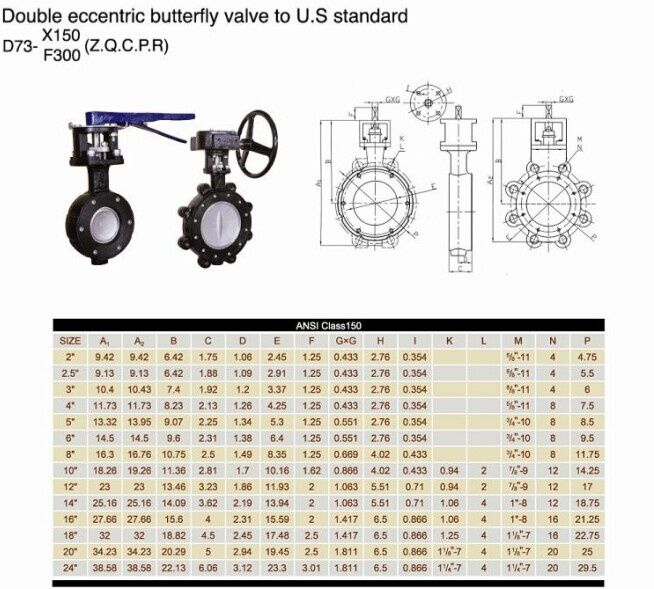

1. Size: 2"to26"wafer type, lug type
2. Designs: DIN and ANSI.
3. Materials: Body: Carbon steel, 304S. S and 316S. S Disc: 304S. S and 316S. S Shaft: 416S. S and 316S. S, 17-4pH. Seat: EPDM/RPTEM Bushing: Glass backed PTFE
4. Working Pressure: 2"to6" 40bar 8"to26" 25bar
5. Specification:
1) The double offset design of the double eccentric butterfly valve assures reduced seat wear and bidirectional seal, zero leakage. When open the valve, the disc does not contact the seat, so the seat life is extended and operating torques are reduced, then it is more easier for user's operating.
2) General: Standard valves tested to MSS SP-61. API 598 testing available on request.

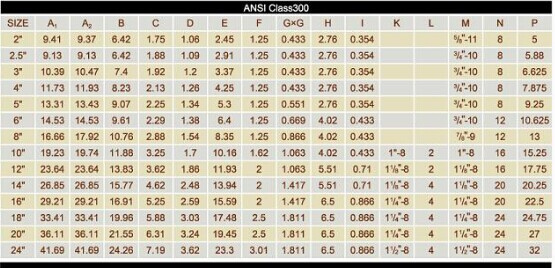

For 2" through 24" sizes: Face-to-face dimensions meet, within specified tolerance, MSS SP-68 and API 609 requirements
APC Industries, a leading manufacturer specialized in industrial valves and Marine valves. It was established in 1999. APC main products is butterfly valves for industry application ( wafer type butterfly valve, Lug type butterfly valve, Double flanged butterfly valve, rubber-coated butterfly valve), Double Eccentric Butterfly Valves and Tri-Eccentric butterfly valve for Marine application, and these High performance butterfly valve has gain the Monopoly in China. API Check valve, API Gate valve, API Ball valve for oil and gas application. Y-strainer, Electric Actuators and pipe fittings.
Now we have gained the ISO 9001: 2000 International Quality Systems, Europe's PED/ CE marked product, Germany' S Pressure Equipment Ordinance TRD100/WO, Norwegian DNV Classification Society Factory and many classification societies such as CCS, British LR Certificates, API 6D /607 Certificates, and FM/UL Certificates for fire fighting valves.
The company carries out the design, manufacture and testing of valves according to the international standards such as ANSI. DIN. BS, JIS.
Warmly welcome to visit our factory.
