| Prod Model: |
According to your drawing or samples |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Good Insulating: |
High Temperature Resistance |
| Feature: |
Insulating Ceramics |
| Color: |
White |
Product Description

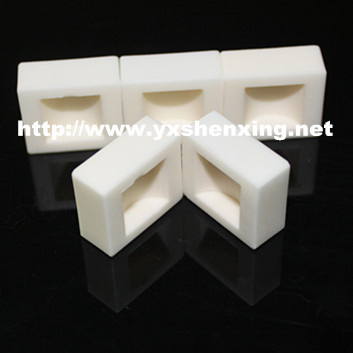

1. Material: 99% alumina ceramic
2. Features:
1). Long serving life.
2). Superior sealing. Reducing the leakage of water droplets.
3). Superir thermal insulation performance.
4). Wear resistant, corrosion resistant, heat resistant.
5). A variety of specifications available.
3. Application:
It's Widely used in all kinds of faucet and valve device.
4. About us:
Shenxing is engaged in R&D, design, manufacture, construction, and operations for technical ceramic parts and components. LED lighting ceramic, electrothermal ceramic, ceramic resistors, electronic ceramic, steatite ceramic, zirconia ceramic, alumina ceramic and etc. Are our main products. These products have good insulation and thermal conductivity. The advantages are irreplaceable. They are applied to power, high-frequency induction welder, audio, computer, LED, bathrooms, etc.
We can produce products according to your drawings or samples. Welcome you contact us for more information. I hope Shenxing can have the chance to give you the best service.
Thank you and best regards.
Siri
|
Performance |
|
Item |
Index |
Unit |
Steatite ceramic |
95 Al2O3 |
99 Al2O3 |
|
Physical Characteristics |
Bulk density |
g/cm 3 |
2.7 |
3.6 |
3.6 |
|
Water absorption |
% |
0 |
0 |
0 |
Mechanical Characteristics
|
Flexural strength |
Mpa |
145 |
320 |
340 |
|
Hardness Vickers |
Gpa |
5.7 |
12.2 |
13.5 |
|
Elastic modulus |
Gpa |
120 |
280 |
320 |
|
Poisson's ratio |
- |
0.21 |
0.22 |
0.23 |
|
Thermal Characteristics |
Linear expansion coefficient |
20-500 0 C 10 -6 / 0 C |
7.9 |
7.1 |
7.2 |
|
Thermal conductivity |
w/(m.k) |
2.5 |
16 |
24 |
|
Specific Heat |
*10 -3 J/(kg*K) |
0.75 |
0.78 |
0.78 |
|
Electrical Characteristics |
Dielectric constant(1MHZ) |
- |
6.2 |
9 |
9.4 |
|
Dielectric loss angle |
*10 -4 |
18 |
15 |
5 |
|
Dielectric strength |
*10 6 V/m |
18 |
12 |
15 |
Established in 1993, Yixing Shenxing Technology Co., Ltd. is engaged in R&D, design, manufacture, construction, and operations for technical ceramic parts and components. LED lighting ceramic, electrothermal ceramic, ceramic resistors, electronic ceramic, steatite ceramic, zirconia ceramic, alumina ceramic and etc. are our main products. These products have good insulation and thermal conductivity. The advantages are irreplaceable. They are widely used in electric appliance industry, automotive industry, mechanical industry, engineer industry and etc.
Shenxing Technology operates and maintain a Quality Assurance Management System fully meeting ISO9001: 2008. We can process products according to your drawings.
