| Prod Model: |
Q61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: |
Standard |
| Size: |
2" - 32 " |
| Certificate: |
ISO9001, CE, RoHS |
| Delivery Time: |
in 45days |
| Warranty: |
18months |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
Product Description
Function description:
1. The ball for ball valve is fixed, and it doesn't move under pressure.
2. Every trunnion mounted ball valve has a floating valve seat which will move under medium pressure to make the seal ring presss n the sphere to ensure complete sealing.
3. It is suitable for high pressure and large diameter valve.
4. Trunnion Mounted Ball Designed
5. Anti-Blow-Out stem
6. Metal to Metal Seat (Option)
7. Anti-Static Device
8. Fire Safe Designed (Option): API 607, API F6A
9. Anti-Corrosion Material: NACE MR-01-75

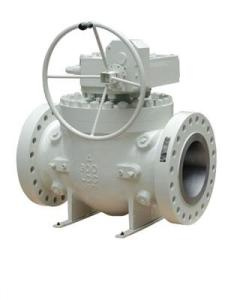

Trunnion Mounted Forged Ball Valve
1). Size: 2" - 32"
2). Material: A105, LF2, F304, F316, F304L, F316L, F51
3). Class: 150LB, 300LB, 600LB, 900LB, 1500LB
4). Suitable medium: water, oil, air and some corrosive liquid
5). Temperature range: -29°C- 425°C
6). Design and Manufacture: API 6D,API 608
7). Face To Face: ASME B16.10
8). Flange Dimensions: ASME B16.5, MSS SP-44
9). RF Flanged Ends: ASME B16.5
10). Butt Welding Ends: ASME B16.25
11). Pressure Temperature Lating: ASME B16.34
12). Inspection & Test: API 6D, API 598, ISO 5208, BS 6755
13). Electric, Pneumatic Actuator to ISO 5211 standard (Option)
14). Certificate: CE, TS, ISO, AZ
