| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Product Description

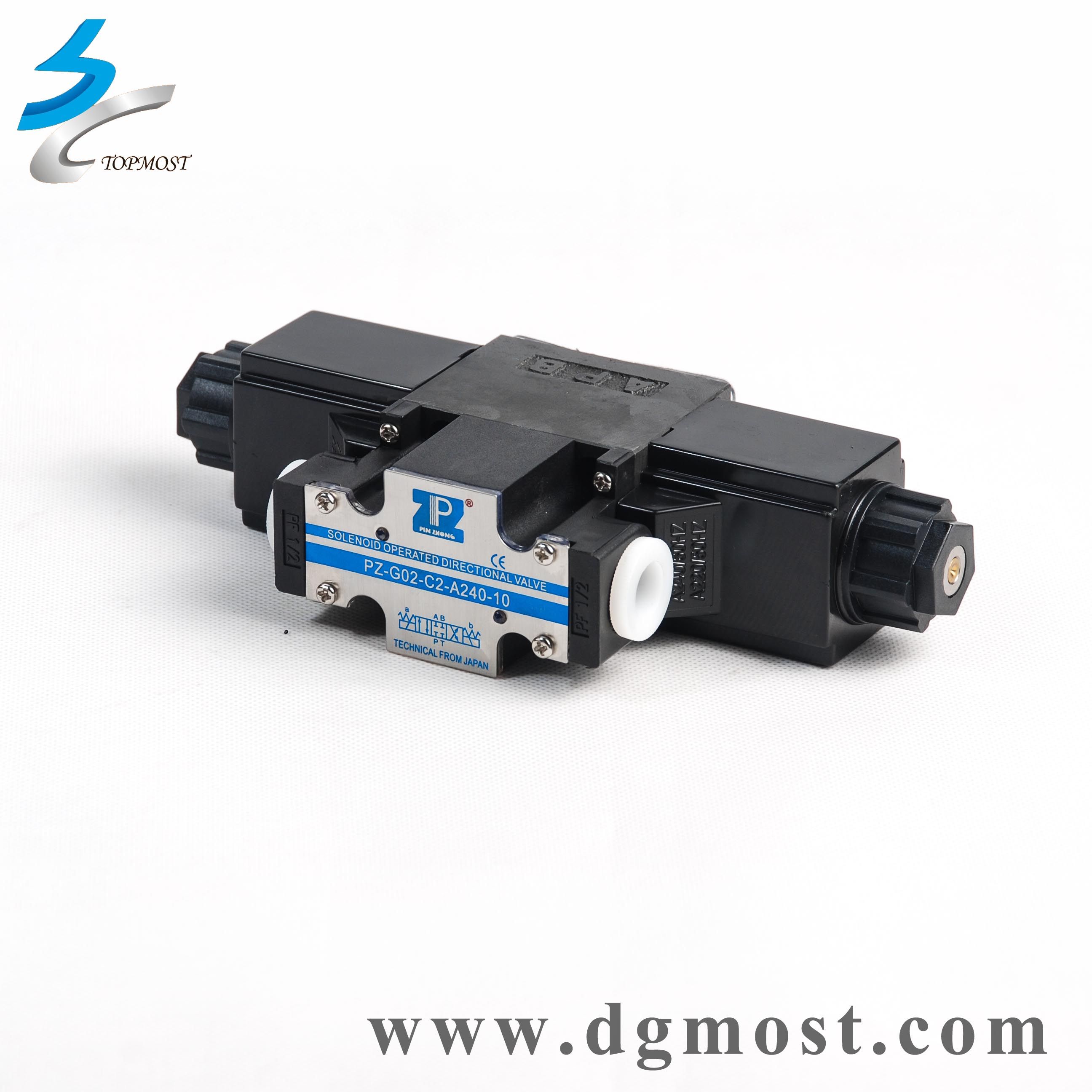

High Quality Hydraulicbox-Type Solenoid Directional Control Valve
Technical Date:
Withatand voltage 1500v/sec
Insulation resistance over 100mΩ
Special voltage , please contact the sales department.
Features
1,Oil-soaked electromagnetic tubes provide high impact resistance, low noise and long service life.
2,Wet type solenoid valve without pushing rod's sealing ring and leakage caused by friction prolongs the service life.
3,Electromagnetic coil coated with BMC materials ensure excellent performance of insulation.
4,All slide studs and valve bodies can be freely combined to achieve easy maintenance .
5,Products with high pressure and large flow minimize the pressure loss but optimize the performances.
6,Surge absorber for DC power can ensure the safety of the electric choose system.
7,10 Million times of durability test ensures the stability of quality.
8,The installation dimensions apply to the international standard specifications as ISO , CETOP, NEPA and DIN
Performance parameter
| Maxmum operating pressure | 315 kgf/cm squared(4630 psi) |
| Rated flow capacity | 63 LPM (16.8GPM) |
| Maximum tank line back pressure | 140 kgf/cm squared (2000 psi) |
| Maximum frequencies of operation | 300CPM |
| Filteration recommended | 25 micronProtection grade |
| International Protection | Weatherability requirements in line with IP65 rating |
| Mineraloil,recommendation temperation | 0 ºC to 55 ºC |
| Max.temperature range | -25 ºC to 90 ºC |
| Viscosity | 10-400 CST |
| Screw torque | 50-70 KGF - cm |
| Fixed screw size | The M5 * 45 long * 4 |
Maxmum operating pressure:315 kgf/cm squared(4630 psi)
Rated flow capacity:63 LPM (16.8GPM)
Maximum tank line back pressure:140 kgf/cm squared (2000 psi)
Maximum frequencies of operation:300CPM
Filteration recommended:25 micronProtection grade
International Protection:Weatherability requirements in line with IP65 rating
Mineraloil,recommendation temperation:0 ºC to 55 ºC
Max.temperature range:-25 ºC to 90 ºC
Viscosity:10-400 CST
Screw torque:50-70 KGF - cm
Fixed screw size:The M5 * 45 long * 4
How to order:
Example:PZ-G02-C2-A220-10-LS
PZ--The company referred to as
G--Plate link
02 -- Nominal dia:6
C2--Spool types
A220--Coil voltage:
A240:AC240V/60Hz,AC220V/50Hz
R220:AC220V/50,60Hz,AC to DC
R110:AC110V/50,60Hz,AC to DC
A220:AC240V/60H,AC220V/50Hz
A120:AC120V/60Hz,AC110V/50Hz
A110:AC110V/60Hz,AC100V/50Hz
D24:DC24V
D12:DC12V
10-- Design NO.:
10:Wire box type
20:DIN 43650 Socket connection type
LS--Additional number
Standard : None
LS:DC Additional surge absorber
