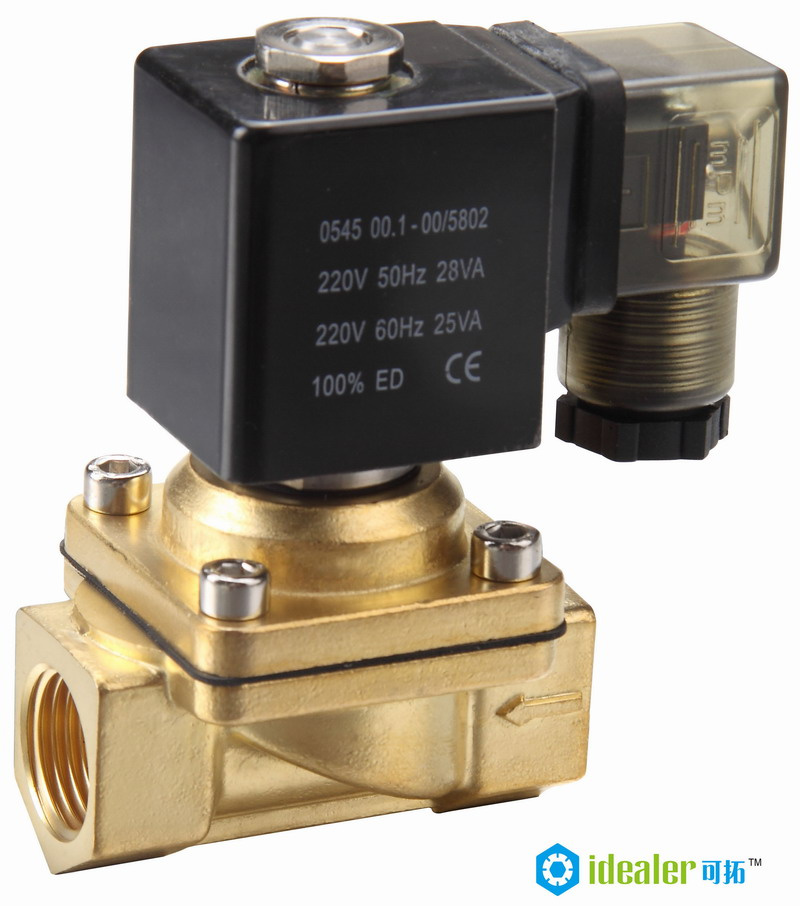

High Quality Solenoid Valve with CE/RoHS (PU)
| Price: |
US $ 0.1/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
PU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fluid: |
Air |
| Operating: |
Direct Drive Type |
| Material Of Body: |
Brass |
| Material Of Oil Seal: |
NBR EPDM Viton |
Product Description
Product Description
Regis's all-new directional valves are available in two-way, three-way configurations in port sizes from M5 to 1/2". Select either a direct-acting poppet or solenoid-controlled pilot operated balanced spool design. Spool valves are body ported but can be bolted to a parallel circuit manifold.
These electronic valves offer high flow in a small package, and are constructed of aluminum, stainless steel and thermoplastic materials. The four-way valves are also available in 3 position versions with either pressure center, closed center or exhaust center spool options.
Materials: Aluminum, Stainless Steel, Thermoplastic
Maximum Pressure: Vacuum to 150 psig (direct acting only); 20 to 125 psig (spool valves)
Response Time: Less than 20 ms
Mounting: Manifold standard.
Manual Override: Locking or non-locking
Electrical Connection: DIN terminal with LED Indicator or Wire Lead
Temperature Range: 0 to 65°C (32° to 150°F)
Seals: NBR
| Example | PU-220-01-AC110V-E |
| Meanings | Model | Aperture of
Flow Rate | Port Size | Voltage | Wiring Form |
| Explain | PU:two position two way solenoid valve | 220:direct drive type
225: Pilot type | 01:1/8"
02:1/4"
03:3/8"
04:1/2"
06:3/4"
08:1"
12:1 1/4"
14:1 1/2
20:2" | DC12V
DC24V
AC24V
AC36V
AC110V
AC220V
AC380V | blank:NBR
E:EPDM
V:VITON |
|
|
|
|
| Model | PU220-01 | PU220-02 | PU220-03 | PU220-04 | PU220-06 | PU220-08 |
| Fluid | AIR |
| Operating | direct drive type |
| Aperture of flow rate | 1.5 | 2.3 | 8 | 13 | 20 | 25 |
| CV value | 0.1 | 0.18 | 1 | 4 | 8.6 | 11 |
| Operation Fluid Viscosity | 50cst below |
| Max Pressure | 10kgf/cm2 |
| Material of body | Brass |
| Material of oil seal | NBR EPDM VITON
|
| Model | PU225-01 | PU225-02 | PU225-03 | PU225-04 | PU225-06 | PU225-08 |
| Fluid | AIR |
| Operating | Pilot type |
| Aperture of flow rate | 13 | 25 | 38 |
| CV value | 4.5 | 12 | 22 | 30 |
| Operation Fluid Viscosity | 50cst below |
| Max Pressure | 15kgf/cm2 |
| Material of body | Brass |
| Material of oil seal | NBR EPDM VITON |
