High Temperature Sisic Ceramic Beam
| Price: |
US $ 1000/Ton |
| Trade Terms: |
FOB,CIF |
| Min Order: |
10000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ceramics parts |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Of Application: |
1380 |
| Density: |
3.02 |
| Open Porosity: |
0.1 |
| Corrosion Rate: |
0.1-1.0 |
| Application: |
Wear Resistant |
Product Description
High Quality Silicon Carbide Ceramic (sic) Ceramic Beams
Specifications
1.ISO certificated.
2.The sizes&Specifications are customized.

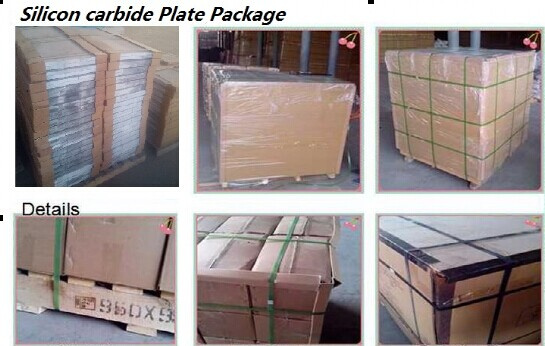

3.Low thermal conductivity,Excellent corrosion resistance Our factory is able of customizing kiln shelves,beam,batts, sagger,etc,according to customer requirements, such as furnace temperature, use of time, frequency of use, etc.,These products can be made into Mullite,clay bonded compound,oxide bonded compound, Si3N4 bonded compound,or refractory sintering,to satisfy technical requirements of clients. The product has good features of high temperature resistance, high strength,good thermal shock resistance,high thermal conductivity, and other characteristics. For further inquiries,please feel free to contact us. Si3N4 bonded Silicon carbide kiln furniture(For pottery) 1.Description Good resistance to high temperature, high strength, good thermal shock resistance. Sic batts temperature can resist up to 1550, Pillar temperature resisting up to 1600, is widely used in ceramics, porcelain, grinding wheels and other industries. 2.Package:Normally,1100kg or1200kg into a Nonumigated crate,each piece is isolated by good padpaper,bubble film,or foam board,etc..Note:All of our export package materials confirms to IPPC standard,with an official mark on them. 3.Parameter: | item | unit | data |
| SiC % | ≥ | 70 |
| Si3N4 % | ≥ | 20 |
| Density | g/cm3≥ | 2.65 |
| Apparent porosity % |
| 13-17 |
Modulus of Rupture
(at ambient temperature) | Mpa≥
| 30 |
| Max.Service Temp. | °C | 1550 |

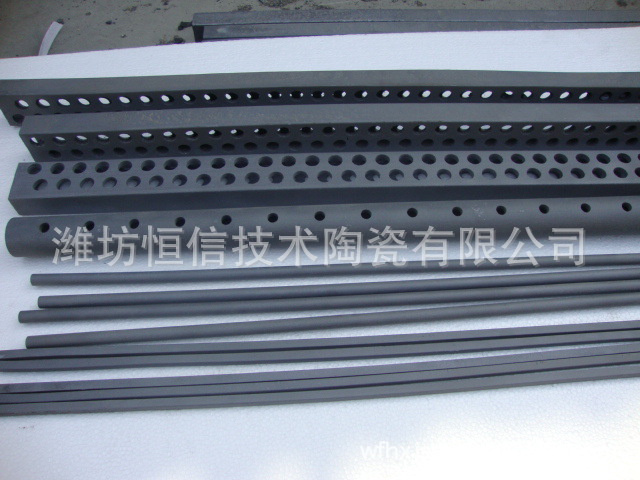

Reaction Bonded Silicon carbide kiln product(RBSC) Description 1.Sintering Theory Reaction bonded SiC is made from αSiC powder, graphite powder,mixing additives and organic adhesive agent.The mixture bodyis extruded and then filled into crucible with silicon powder.Sinter in a vacuum heating furnace at1600 ~1800° C,the melt silicon powder reacts to the silicon in the body,finally from β-SiC due tothe heat of reaction.2.Product Range&FeaturesWe produce high quality RBSC products including beams,rollers and cooling air pipes,burner nozzles,crucibles and saggers,batts and pallets,radiation pipes,special linings,wear-resistant parts,sand blast nozzle,specialshaped plates,thermal protection tubes,desulphurizing nozzle,and the like.With the features of high strength,high temperature resistance, high hardness, high wear resistance, corrosion resistance, oxidation resistance,thermal shock resistance, thermal shock 3. | item | Data |
| Density g/cm3≥ | 3.02 |
| Apparent porosity %≤ | 0.1 |
Bending Strength MPA
| 250(20°C) |
| 280(1200°C) |
| Thermal conductivity W/m.k | 45(1200°C) |
| modulus of elasticity Gpa | 330(20°C) |
| Thermal explanation K-1×10-6 | 4.5 |
| Hardness(Mohs') | 13 |
| Temperature of application°C | 1380 |
| acid-proof alkaline | Excellent |
Weifang Zhongding Machinery Co., Ltd is a main exporter and manufacturer engaged in the production of high-temperature sterilization pot, pot sandwich with high quality and favaroble price. We stick to the principle of "quality first, service first.
We have developed a series of autoclaves which are adapted to the different customer uses. Our company has obtained four patents issued by the State Intellectual Property Office. The fuel oil heated up type autoclaves has obtained the invent patent of our country. Our automatic autoclaves have obtained American FDA (American State Food & Drugs Administrative Bureau) use approval.
We hope to rieceive your enquiry sooner, believe us, we can meet the demands you ask with the most favrable price.
Weifang Zhongding Machinery Co., Ltd is a main exporter and manufacturer engaged in the production of high-temperature sterilization pot, pot sandwich with high quality and favaroble price. We stick to the principle of "quality first, service first.
We have developed a series of autoclaves which are adapted to the different customer uses. Our company has obtained four patents issued by the State Intellectual Property Office. The fuel oil heated up type autoclaves has obtained the invent patent of our country. Our automatic autoclaves have obtained American FDA (American State Food & Drugs Administrative Bureau) use approval.
We hope to rieceive your enquiry sooner, believe us, we can meet the demands you ask with the most favrable price.
