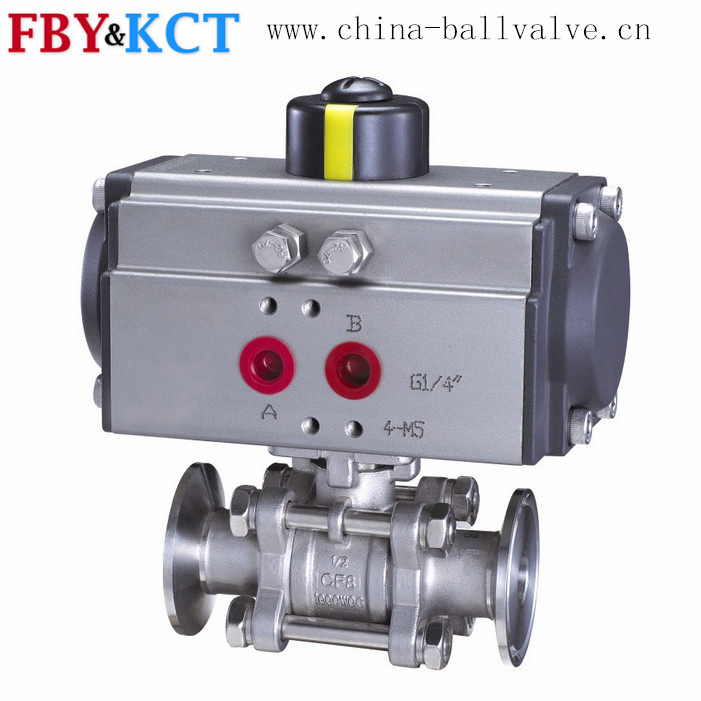

Hoop End Pneumatic Actuator Ball Valve (Air Actuated)
| Price: |
US $ 50-100/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
hoop end |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pn16: |
1''-8'' |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Connection Form: |
Hoop End |
| Function: |
Ball Valve |
Product Description
Product Explanation:
3PCS ISO5211 Direct Mounting Pad Hoop End Air Actuated Float Ball Valve
DESIGN FEATURES
ISO5211 direct mounting pad
Full silicasol technology
Anti-static devices for ball-stem body
Blow-out proof stem
Double stem sealing to comply with TA-LUFT requirements
Pre-load 2 belleville washer to self-adjust packing
SPECIFICATIONS
Working pressure: 1000PSI
Temperature range: -20-250° C
Suitbale medium: Water, Oil, Gas and some corrosive liquid
| DN(inch) | Φ d | Port | L | H | H1 | A | W | Φ E1 | Φ E2 | P | Φ D | Φ S | T1 | T2 | Φ U1 | Φ U2 |
| 1/2" | 15 | 9.6 | 99 | 42 | 72 | 8 | 135 | 36 | 42 | 9 | 25 | 50.4 | - | 3.63 | 6 | 6 |
| 3/4" | 20 | 15.9 | 104 | 48.5 | 80 | 9 | 135 | 36 | 42 | 9 | 25 | 50.4 | - | 3.63 | 6 | 6 |
| 1" | 25 | 22.2 | 119 | 58.5 | 90 | 11 | 170 | 42 | 50 | 11 | 50.4 | 43.6 | 28.5 | 4.75 | 6 | 7 |
| 1-1/4" | 32 | 28.5 | 126 | 63 | 95 | 11 | 170 | 42 | 50 | 11 | 50.4 | 43.6 | 28.5 | 4.75 | 6 | 7 |
| 1-1/2" | 38 | 34.9 | 144 | 71 | 106 | 14 | 200 | 50 | 70 | 14 | 50.4 | 43.6 | 28.5 | - | 7 | 9 |
| 2" | 50 | 47.5 | 156 | 78 | 113 | 14 | 200 | 50 | 70 | 14 | 63.9 | 56.3 | 28.5 | - | 7 | 9 |
| 2-1/2" | 65 | 60.5 | 190 | 100 | 149 | 17 | 300 | 70 | 102 | 17 | 77.4 | 70.6 | 28.5 | - | 9 | 11 |
| 3" | 76 | 72.9 | 220 | 109 | 159 | 17 | 300 | 70 | 102 | 17 | 90 | 83.3 | 28.5 | - | 9 | 11 |
| 4" | 100 | 97.4 | 270 | 140 | 205 | 22 | 400 | - | 102 | 22 | 118.9 | 110.3 | 28.5 | - | - | 11 |
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
