Jet Pump (with CE good quality)
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
JET60L, JET80L, JET100L, JET100P |
| Theory: |
Jet-Flow |
| Transmission: |
Direct Connection Transmission |
| Air Engine Type: |
Fitted Motor |
| Type: |
Self-Priming Pump with Inner Recirculation |
Product Description

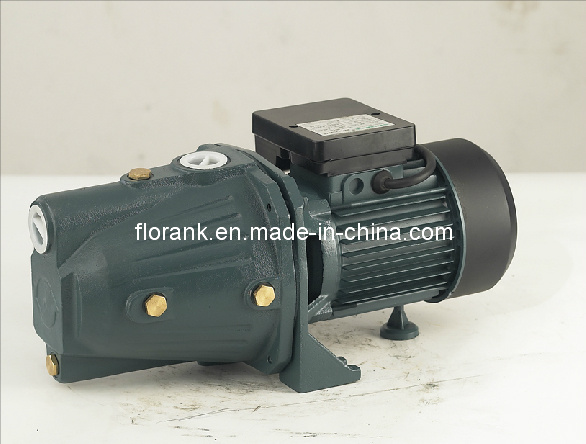

Jet Pump (with CE good quality)Jet pump(JET-L)
Woking Conditon
Suction lift up to 8m
Fluid temperature up to +400C
Max ambient temperature +400C
Alpplicaton&Feature
The pumps are for pumping clean water and fluids
Which are not chemically aggressive to the pump
Components enven in the presence of entrapped
Air in the fluid being pumped.
They are particularly used for domestic applications
Such as the automatic distribution of water from
Tanks, for water gardening etc.
Monoblock sel-priming centrifugal pump with
Ejector housed in the pump body.
A foot valve or non return valve on the suction
Opening should be installed.
Component Material
Pump bodycast iron
Motor bracketaluminium
Impellerbrass
Ejectornylon
Motor shaftSS420 or CS45
Mechanical sealceramic and graphite
Motor Information
Single phase two-pole induction motor
220V/50Hz 220V/60Hz 110V/60Hz
Thermal protector, continuous duty.
Insulation calss: B
Protection: IP44
|
Model |
Power |
Inlet |
Outlet |
Max Flow |
Max Head |
Max Suction |
Dim |
G.W |
|
single phase |
Kw |
Hp |
inch |
inch |
m3/h |
m |
m |
mm |
kg |
|
JET60L |
0.37 |
0.5 |
1 |
1 |
2.5 |
32 |
9 |
390x190x230 |
9.5 |
|
JET80L |
0.55 |
0.75 |
1 |
1 |
3 |
42 |
9 |
475x190x220 |
17 |
|
JET100L |
0.75 |
1 |
1 |
1 |
3.5 |
46 |
9 |
475x190x220 |
18 |
|
JET100P |
1.1 |
1.5 |
1 |
1 |
3.5 |
46 |
9 |
475x190x220 |
18.5 |
