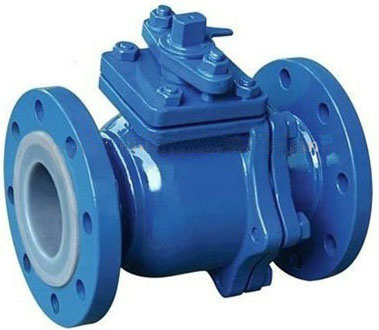

JIS API Cast Iron Flanged Ball Valve (Q41F-16)
| Price: |
US $ 23.5-189/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
30/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Q41F-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn40-Dn200 |
| Certification: |
CE JIS ISO9001 |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
Cast Iron |
Product Description
Standard
Design: ASME B16.34/API 6D
Face to Face: ASME B16.10
End Flange: ASME B 16.5
BW End: ASME B16.25
Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75MaterialsBODY:
Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys, ...Other materials under request
SOFT SEATS: PTFE, RPTFE, PEEK, DEVLON, NYLON, ...Other materials under request
METAL SEAT: Tungsten Carbide(TC), Stellited, Ni60...Other materials under request.

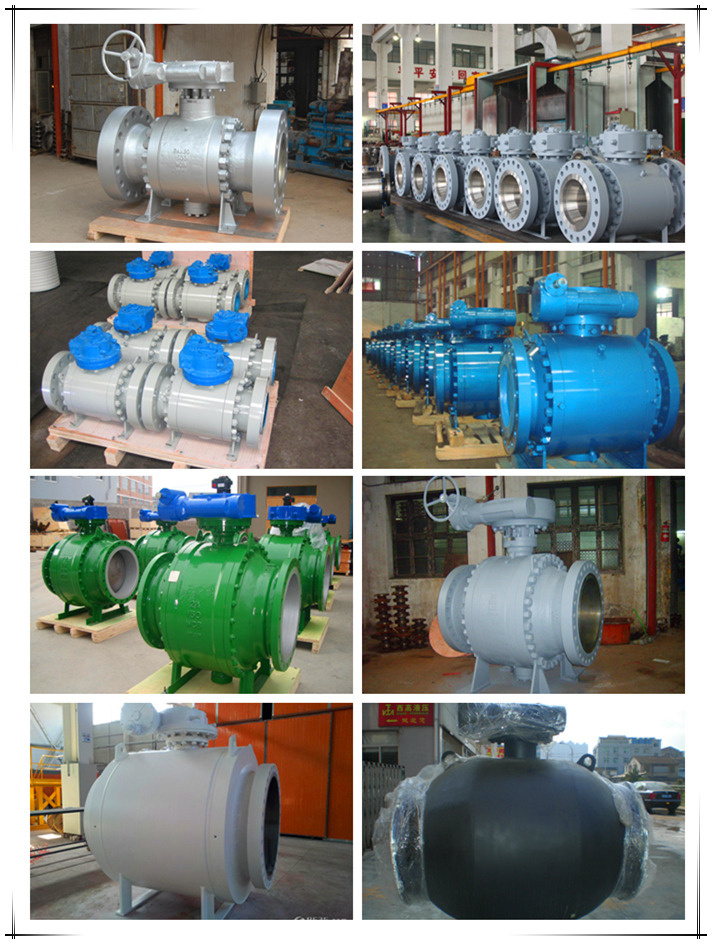

TRIM: A105+EP, 304, 316, 410, MONEL, ...Other materials under requestApplication RefineryChemicalPetrochemicalPower plantGasPRODUCTS

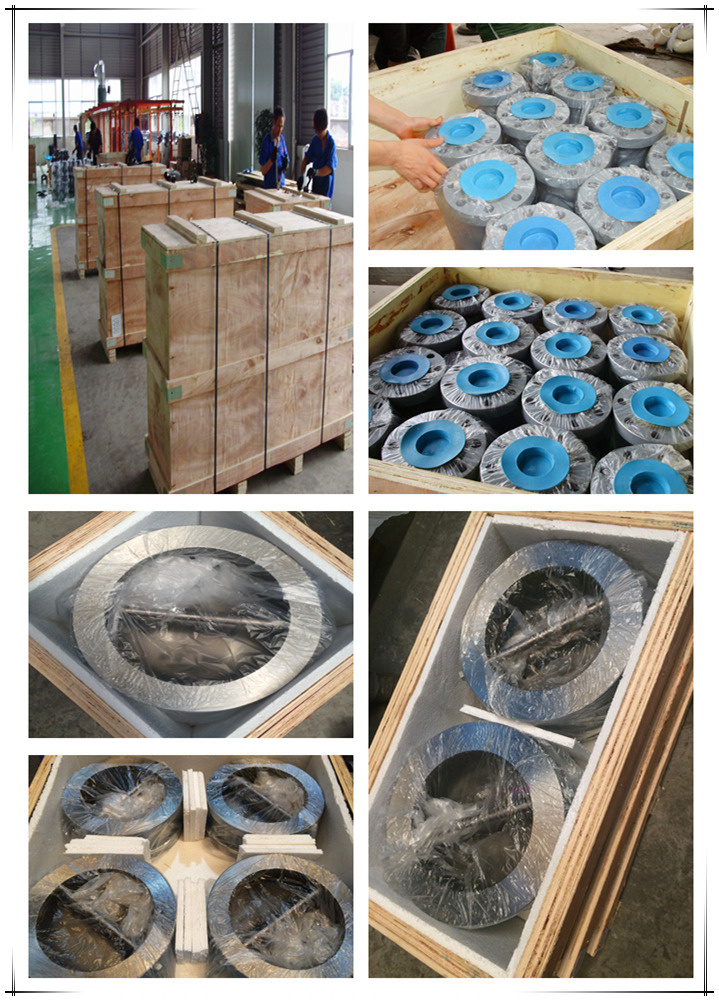

PACKING
We welcome all the world customers to contact us for more cooperation.
With our years of technical knowledge and experience,we assure you.| NO. | Part | Material |
| 1 | Body | ASTM A216-WCB A352-LCB A351-CF8,CF8MK,CF3,CF3M,Duplex |
| 2 | Seat Spring | Inconel X-7505 SS304 SS316 |
| 3 | Seat Ring | ASTM A105+ENP A182-F304,F316,F316L,F6,F51 |
| 4 | Seat | PTFE RPTFE PEEK PPL |
| 5 | Ball | ASTM A105+ENP A182-F304,F316,F316L,F6,F51 |
| 6 | Key | 1045 A182-F304,F316,F316L,F304L |
| 7 | Sliding Bearing | Stainless Steel+PTFE SS316+PTFE |
| 8 | Thrust Washer | PTFE |
| 9 | O-ring | NBR Vtion |
| 10 | Stud | ASTM 193-B7,B7M,B8,B8M |
| 11 | Nut | ASTM 194-2H,2HM,8,8M |
| 12 | Yoke | A216-WCB |
| 13 | Gland Flange | A216-WCB A3541-CF8 |
| 14 | Stem | A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51 |
| 15 | Packing | PTFE Graphite |
| 16 | Screw | ASTM A193-B7,B8 |
| 17 | Stem Injection | 1020+ZN A182-F304,F316,F316L |
| 18 | Seat Injection | 1020+ZN A182-F304,F316,F316L |
| 19 | Vent Valve | 1020+ZN A182-F304,F316,F316L |
| 20 | Antistatic Spring | Stainless Steel SS316 |
| 21 | Bonnet | A216-WCB A352-LCB A351-CF8,CF8M,CF3,CF3M,Duplex |
| 22 | Body Gasket | PTFE SS304+Graphite SS316+Graphite |
| 23 | Trunnion | A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51 |
| 24 | Bottom Cover | ASTM A105+ENP A182-F304,F316,F316L |
| 25 | Lower Gasket | PTFE |
| 26 | Drain Valve | 1020+ZN A182-F304,F316,F316L |
| 27 | Seat Sealing | Graphite |
| 28 | Gand Gasket | SS304+Graphite |
| 29 | Bottom Cover Gasket | SS304+Graphite |
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
