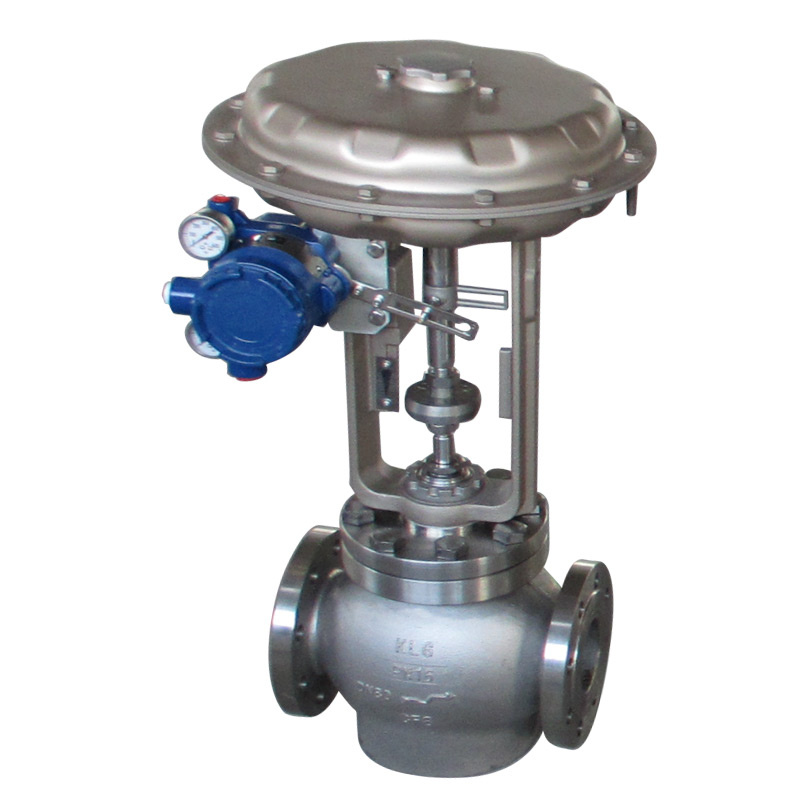

K305 Pressure Balanced Caged Control Valve
| Price: |
US $ 880-40000Per set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5Sets |
| Pay Type: |
L/C,T/T |
| Prod Model: |
K305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
ANSI |
| Material: |
Wcb, CF8, CF8m, Wc6, Wc9 |
Product Description
The K305 valve, characterized by double-guide pressure balanced plug, is applicable to the operating condition of Flashing and cavitation. Multi-spring pneumatic diaphragm actuator or electric motor supplies the power of the valves's action. Pipeless connection makes the valve more compact, more convenient to assemble and disassemble, and have higher reliability.
Characteristic:
Modular design for easy large-scale production and improve the versatility of the spare parts.
Be simple and compact structure, small size, small loss of the pressure drop, mass flow rate, adjustable wide rangeability.
The sleeve could ensure that the body is not destructed by the steam and cavitation and medium erosion, performance is reliable.
Be simple and easy to change the size of flow capacity and flow characteristics.
Variety of valves and valve core material can be chosen optionally for corrosive fluids.
The design of inserted style of seat and top-oriented structure ensures quick maintenance and disc replacement.
Pipeless connections between intelligent positioner and yoke make the valve more compact.| Body Size | NPS | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| DN | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Stroke | mm | 30 | 60 | 100 | 120 |
| Press.Rating | ANSI Class | ANSI B16.5 ANSI150,ANSI300 |
| PN(Mpa) | JB/T79-94 HG20592 PN1.6,PN2.5,PN4.0 |
| Bonnet type | Standard | -46ºC~300ºC |
| Fin-extension | 300ºC~530ºC |
| Plug type | Orifice plug |
| Flow charateristics | Equal percentage, linear |
| Leakage class | Metallic sealing | According with ANSI B16.104IV |
| Connection type | Flanged | RF,FM,RTJ |
| Welded | BW(DN≥65) |
| Face to face dimension | IEC 534-4-1976 for ANSI,DIN3202-F1 for PN |
| Actuator | Pneumatic | Multi-spring -30ºC~+80ºC | Reverse action (Signal increase to valve open)
Direct action (Signal increase to valve shut) |
| Electric | Exp.-proof -20ºC~+60ºC | Reverse action (Signal increase to valve open)
Direct action (Signal increase to valve shut) |
| Perf. index | Linearity | ≤±1% (With positioner) |
| Hysteresis | ≤±1% (With positioner) |
| Accessories | Positioner, Air-set, Hand wheel, Solenoid, Limit switch, Transmitter, Pneumatic accelerator, quick exhaust valve |
Jilin city chuanghe liquid control fabrication Co., Ltd., situates in Jilin city and established in 2007, is a leading private company engaged in research, design and manufacturer of control valve, with CNY50million of registered capital, 20000 square meters of covered field and 120 employee. The most important differentiating factor in our company is our experiences and optimum utilization of technology of making the products applying to various services.
The products are widely applied to the industries of petrochemicals,
Pharmaceutical, power plants, food and beverage, paper and fiber.
It is certified by ISO 9001, GB/T24001-2004/ ISO14001: 2400, GB/T28001-2001 and hold Manufacture License of Special Equipment People' S Republic of China (Certificate No.: Ts2710S46-2015). We are the qualified supplier of China National Petroleum Corporation.
We aim for a long lasting customer relationship based on quality. Quality has the top-ranking within our corporate policy.
Jilin city chuanghe liquid control fabrication Co., Ltd., situates in Jilin city and established in 2007, is a leading private company engaged in research, design and manufacturer of control valve, with CNY50million of registered capital, 20000 square meters of covered field and 120 employee. The most important differentiating factor in our company is our experiences and optimum utilization of technology of making the products applying to various services.
The products are widely applied to the industries of petrochemicals,
Pharmaceutical, power plants, food and beverage, paper and fiber.
It is certified by ISO 9001, GB/T24001-2004/ ISO14001: 2400, GB/T28001-2001 and hold Manufacture License of Special Equipment People' S Republic of China (Certificate No.: Ts2710S46-2015). We are the qualified supplier of China National Petroleum Corporation.
We aim for a long lasting customer relationship based on quality. Quality has the top-ranking within our corporate policy.
