| Prod Model: |
J61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8"-2' |
| Pressure: |
150lb-1500lb |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Bellows Globe Valve |
| Standard: |
ANSI |
| Application: |
Bellows Globe Valve |
| Material: |
Lf2, Carbon, Stainless Steel and Other Materials |

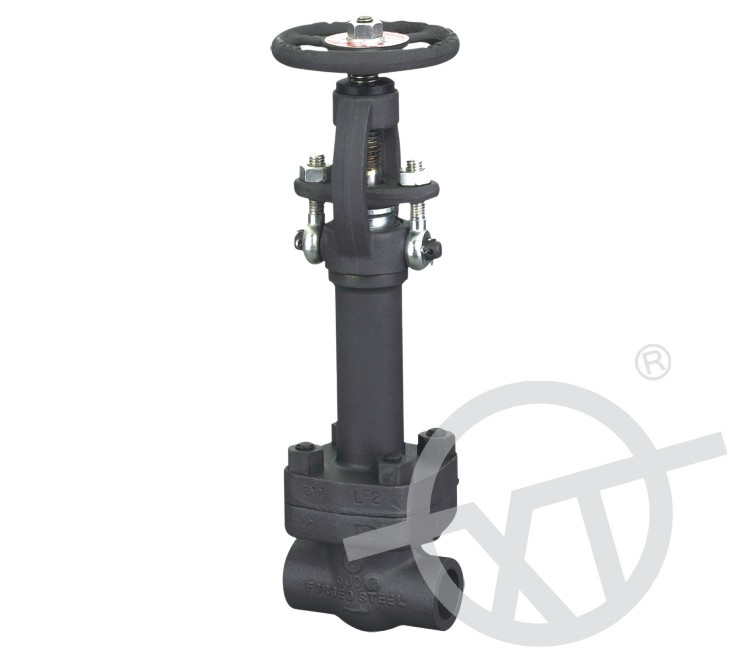

Product Description
Specifications:
1. BB - Bolted bonnet
2. Extended stem
3. OS&Y - outside screw and yoke
4. Extended Stem and Bonnet which keep stem packing at sufficient distance away from the cold fluid to remain functional and ensure the operator is at a sufficient distance from the pipeline.
5. Flange ends: ASME B16.5
6. Forged Steel Cryogenic Globe Valves conform toAPI602, ASME B16.34 and BS5352. Each valve is tested in accordance with API 598, and marked per MSS SP 25.
7. Main materials: LF2, LF3, F304, F316, F347, F51, Monel, 20# Alloy
|
Size: |
1/2" ~ 2"(DN15 ~ DN50) |
|
Rating: |
ANSI 150lb ~ 2500lb, 800lbs; |
|
Body Materials: |
A105,LF2,F9,F11,F22,F304,F304L,F316,F316L,F321,F51 etc. |
|
Operation: |
Hand wheel |
|
|
Please contact us for other sizes, pressures and materials. |
