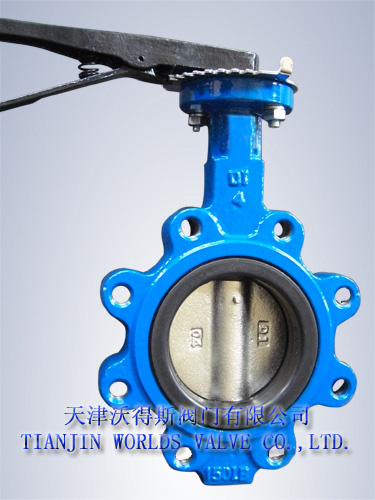

Lug Type Butterfly Valve (D7L1X-10/16)
| Price: |
US $ 25/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
D7L1X-10/16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Silver, Gray, Blue, Red, Customized |
| Standard Or Nonstandard: |
Standard |
| Size: |
Dn50-1800 |
| Connection Form: |
Flange |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Household Usage |
Product Description
ButterFly Valve:
FEATURES:
High Grade Material used for lever and notch plate
Notch plate gives exect position of disc opening
Ergonomically designed hand lever
Excellent surface design and comfortable operating
Valve opening can be exactly matched to the notches on the notch plate
Easy Installation
Valve can be adapted to multiple standard flanges
360° Disc rotation
| Detailed Description: |
| Series | Lug type butterfly valve |
| Size: | DN40-DN1200/1.5” -48” |
| End flange: | ANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E |
| Face to face: | ANSI B 16.10, API 609 |
| Top flange: | ISO 5211 |
| Normal pressure: | DN40-DN600(1.5” -24” ) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28” -48” ) PN1.0MPa(150PSI) |
| Body: | Cast Iron/Ductile Iron/WCB/Carbon steel/AL-Bronze/CF8, SS304/CF8M, SS316 |
| Disc: | Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubber lined Disc/1.2501/1.4529/CF8/CF8M/Hastelloy Alloy/Monel
|
| Stem: | SS416/SS304/SS316/SS431/17-4PH/Monel/Carbon steel 45/45# |
| Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM()/PTFE |
| Suitable temperature: | Normal Temperature -45 ~150 |
| Medium: | Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.
WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.
WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
