| Prod Model: |
M20C5-3/8"BSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Application: |
Household Usage |
| Power Supply: |
Energized Coil Opens The Plug |
Product Description
HENGSEN company is Professional OEM manufacturer!
Jenny work in HENGSEN company!
You may send inquiry to Jenny for more products information or OEM details,Thanks!

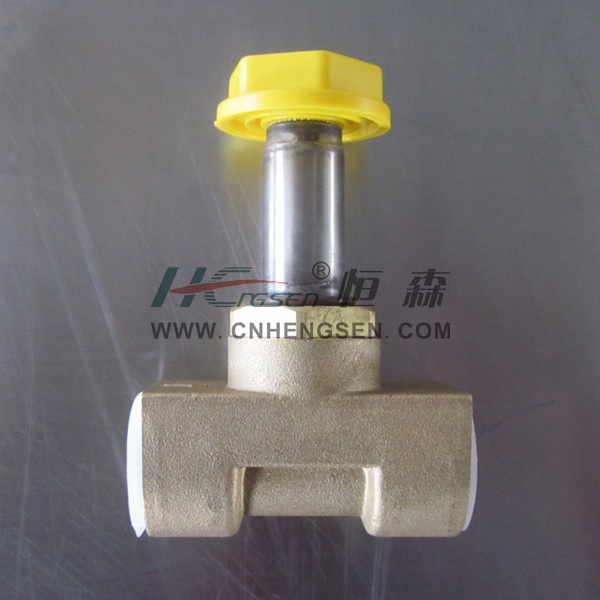

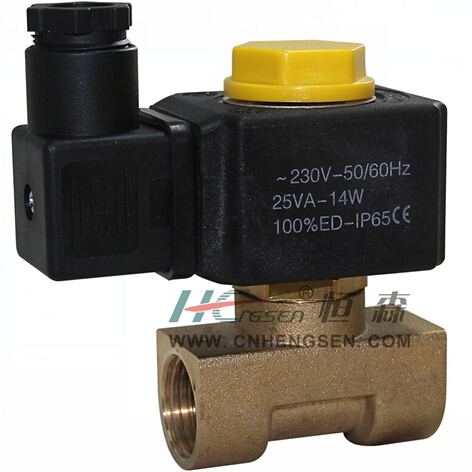

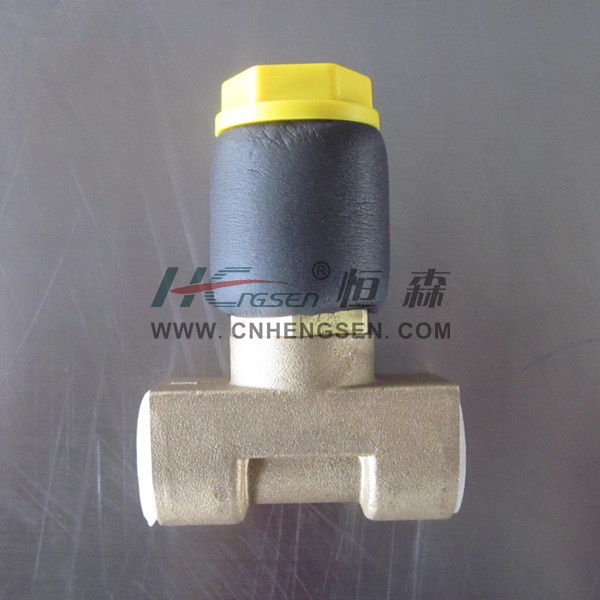

M20C5 Solenoid valve 3/8"BSP/normally closed solenoid valve/direct operation solenoind valve/water solenoid valve/air solenoid valve/oil solenoid valve
M20C5 Solenoid valve suitable for water,air,oil,inert gases and other fluids
non-corrosive for copper alloys,with viscosity up to 2°Engler
Installation and operation
Normally-Closed 2 way valve
Direct activation
Female end connection,Size 3/8"BSP
Energized coil opens the plug
Electrical Specifications
Closing Time: 10msec
Press-forged brass body
Internal parts in stainless steel(17% CR)
Gaskets in Viton(fluoroelastomer)
Fluid temperature:-10 to +140ºC
With dc coil indicated pressure values must be reduced by 60%
Model: M20C5-3/8"
Through bore dia.Φ5 mm
Female connection 3/8"BSP
KVs:0.612m³/h
Minimum differential pressure 0 bar
Maximum differential pressure with coil Vn 6bar
Test pressure(DIN2401) PN 25bar
Working Temperature -10 to 140ºC
Unit Weight 0.4kg
Coil for choose
C230A: 230VAC
C110A: 110VAC
C24A: 24VAC
C24D: 24VDC
We are professional OEM manufacturer of HVAC Control Products, Refrigeration Parts&Tools, Brass fittings&Copper Fitting, Disperse pipe(refnet joint).
We founded in 1988 years and have 10 years ODM&OEM experiences.
We have 3 main series products.
(1)HVAC Control products:
-Motorized brass Ball Valve
-Motorized Zone Valve
-Electric Thermal Valve
-Brass Solenoid Valve(air, oil, water)
-Motorized Flange Iron ball valve
-Damper actuator
-Dynamic Pressure Balance Electric Regulating Valve
-Dynamic Balance Filter motorized ball valve
-Water Flow Brass Static Balance valve
-Electrical Control Auto compensation Plug valve
-Mechanical thermostat
-Digital thermostat
-Temperature sensor
-Liquid Flow Switch
-HVAC Brass Control Valve(with Actuator)
-HVAC Iron Control Valve(with Actuator)
(2)Refrigeration Parts&Tools:
-Double Manifold gauge sets-Single manifold set-Refrigeration Gauges
-Charging Hose-Quick Couplers-Sight Glass-Hand Valve
-Split Air Conditioning Valve-Refrigeration Ball Valve
-Refrigeration Solenoid Valve-Filling Valve-Can Tap Valve
-Needle Valve-capillary-Comb Slice-Cutting Knife
-Brass Nut-Brass tie-in
-Disperse pipe(refnet joint)
(3)Copper&Brass Pipe Fitting:
-copper Elbow-copper Tee-copper Straight coupling
-copper Reducing Coupling-copper U Bend-copper P-Trap
-Brass Solenoid Valve(water, oil, air)
-Brass Male&Female Eblow
-Brass Male&Female Tee
-Brass Male&Female connector
If you are interesting in our products and service,
Please contact with us, Thanks.
