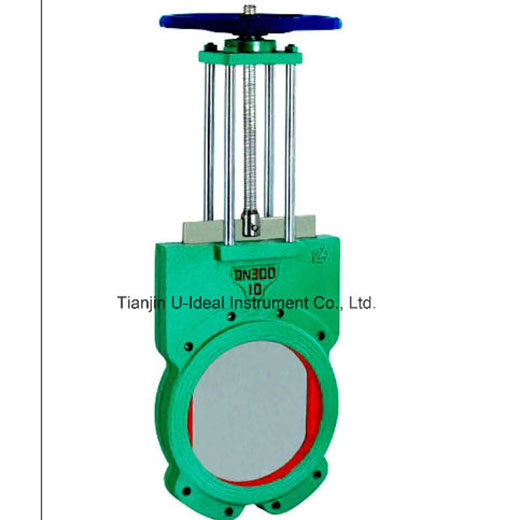

Manual Bi-Directional Hydraulic Knife Gate Valve
| Price: |
US $ 80/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
Z73 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Soft Seal (NBR): |
≤ 80 O C (PTFE): - 40 O C~180 O C |
| Process Pressure: |
0.6, 1.0, 1.6, 1.0, 1.6MPa |
| Apply To: |
Pulp, Wood Pulp, Fiber, Dust, Chemicals Sewage and |
| Carbon Steel: |
- 29 O C - 425 O |
| Stainless Steel: |
- 40 O C ~600 O C |
| Material: |
Cast Iron |
| Connection Form: |
Folder |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
Product Description
Valves Structure features
The slurry valves all round channel design make it no sediment. Knife plate bottom sharp design blade shape, can cut off soft materials such as fiber, paper pulp and wood pulp. Good opening and closing action can improve the gate seal face, clean sealing surface adhesion, automatic removal of impurities.
2. Stainless steel gate plate to prevent seal leakage caused by corrosion.
3. Short structure save raw materials and installation space, also effectively support the strength of pipeline.
4. Four rods supports save materials and ensure the mechanics performance.
5, the guide block on the valve body make the gate right movement, squeezing block ensure effective seal.
6. Body reinforcement design increased the strength of the body.
7. Slurry valve inside can be made to V shape or triangular shape, to adapt to the fluid control requirements.
8. Slurry valves can be assemble with handwheel, manual zipper, spur gear, bevel gear, pneumatic, electric and electric hydraulic accessories.
9. Working temperature:
Soft seal (NBR) ≤ 80 º C (PTFE): - 40 º C~180 º C
Carbon steel: - 29 º C - 425 º C stainless steel: - 40 º C ~600 º C
Process Pressure: 0.6, 1.0, 1.6, 1.0, 1.6MPa
Application:
Pulp, wood pulp, fiber, dust, chemicals sewage and slurry etc.
Products Features:
Compact design, small volume, light weight, cheap price, easy to installation, wear proof, anti-blocking, easy maintenance and long service time. Various motor device is selectable.
Installation and usage
1. Before installation, must check whether the valve model meets the demand of the working conditions.
2. Teflon or rubber such soft seal type, must check confirm sealing surface and inside clean.
3. Before installation, must leave enough operating space for valve.
4. For electric valve or electric hydraulic control valve, when out of factory, the valve was debugging well. When use the first time, to prevent wrong wiring, please manually open the valve to full open or half open state, and then power on with no-load to test.
5. Air (hydraulic) control valve must ensure the valve have enough gas (hydraulic) pressure.
6. When installation, the bolts should be uniform tighten.
7. When installation, Avoid bumping the valve or screw valve components at will.
8. If the valve top seal outside, must be regular filling sealing oil.
9. In dry areas, if the valve actuator is spur gear, filling oil regularly.
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve Cryogenic Valve Water valve two or three ways valve hydraulic valve float valve pressure reducing valve.
Trouble shooting
| Potential faults | Faults reason | method of troubleshooting |
| Seal leakage | Seal ring impurities | Clean seal ring |
| Damage of the sealing | Replace seal ring |
| upper seal leakage | Upper seal packing loose | Screw down packing or cover bolt |
| Upper filling degradation | Oiling or replace the filling |
| Flange surface | The bolt haven't be tighten equally | Tighten the bolt with equally force |
| Flange seal invalidation | Replace flange gasket |
| switch jam | Driving device to dry | add lubricants to the driving device |
| switch malfunction | Driving device damage | Replace driving device or
repair by professional people |
