| Prod Model: |
Q41H / Q41F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Pressure In DIN: |
1.0mpa-10mpa |
| Nominal Pressure In API: |
150lb-2500lb |
| Nominal Pressure In GB: |
0.6mpa-25mpa |
| Nominal Diameter: |
1/2"-40", Dn15-Dn1000 |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
| Connection Form: |
Thread, Sw, Bw, Flange, Wafer |
| Material: |
Cast Iron, Cast Steel, Stainless Steel, Forged St |
| Seal Surface: |
Wedge Gate Valve, Parallel Gate Valve |
Product Description

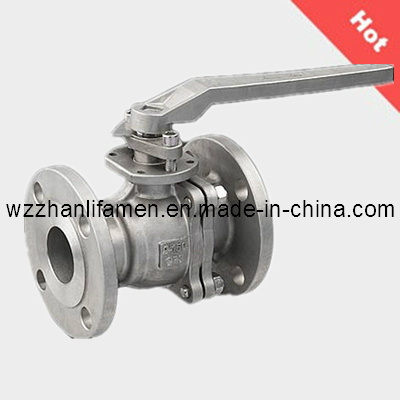

Belows are the details of Manual Operated Ball Valve made by our company:
Summarize
(1) Name: Manual Operated Ball Valve
(2) Model: Q41H / Q41F
(3) Size Range: 1/2" - 40", DN15-DN1000
(4) Pressure/Class: 150LB - 2500LB
(5) Materials: Cast Iron, Cast Steel, Stainless Steel, Forged Steel etc.
(6) Connection Type: Thread, SW, BW, Flange etc.
(7) Suitable Tem.: -20º C - 425º C / -20º C - 550º C
(8) Standard: DIN, API, GB
Here we take API Ball Valve for example. For the others' data, please contact us.
1. Technical Specifications:
(1)Design Standard: API 600-2009
(2)Face to Face Dimensions: ANSI B16.10-2009
(3)End Flange Dimension: ANSI B 16.5-2009
(4)Test Standard: API 598-2009
2. Performance Specifications:
3. Main Parts and Materials:
4. Main Sizes and Dimensions:
If these products interest you, please feel free to contact with us!
Quality First and Reputation Uppermost!
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …
We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
Welcome to inquire us. We will do our best to give you the best services!
