| Prod Model: |
MVP Series |
| Exhauster Method: |
Positive Displacement Pump |
| Structure: |
Rotary Vacuum Pump |
Product Description

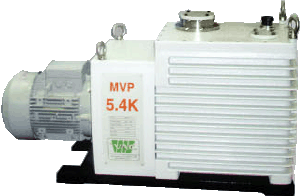

MVP Series is two-stage oil sealed rotary vane vacuum pump. It is a new concept out of conventional design to satisfy customer's needs.
It consists of top cover, oil casing, motor housing, pump module. It occupies oil anti-suckback valve and gas ballast for protecting pump and vacuum system.
Operating Principle: The pump and motor are connected by flexible coupling. As the rotor rotates two vanes placed in rotor vane groove, turn making contact with the internal surface of the cylinder due to centrifugal force. The inhaled gas is trapped between two vanes as the rotating vane passes through the inlet passage and this trapped gas is compressed as it rotates toward exhaust valve and eventually through valve. The vacuum oil is supplied to the moving parts for lubrication and tight sealing.
| TECHNICAL DATA | UNIT | MVP216 |
| Displacement Speed | 50Hz | L/s | 50 |
| 60Hz | 60 |
| Ultimate Pressure | With Gas Ballast | Torr | 5×10 -3 |
| Without Gas Ballast | 5×10 -4 |
| Inlet Port | mm | ISO 63 |
| Outlet Port | mm | ISO 40 |
| Motor Power | kW | 5.5 |
| Rotational Speed of Pump | 50Hz | R.P.M | 1450 |
| 60Hz | 1750 |
| Oil Filling | L | 16 |
| Weight | kg | 290 |
Beijing BEIYI WOOSUNG VACUUM TECHNOLOGY Co., Ltd (BWVAC) is a joined venture company specializing in the manufacturer of high speed rotary vane vacuum pump, which was founded in 2002. After two years preparation, the first batch of final products was accomplished. In the last few years, we consistently offer high quality rotary vacuum pumps. And now, our market roughly reaches 5000 set per year.
BWVAC imported advanced technology and equipment like machinery center, CNC from Korea to produce seven kinds of TRP series vacuum pump that pumping speed is from 1.5 L/s to 25 L/s.
We focus on modern industry as electronics, medicine, optics, resources economizing, semi-conducts etc. Our products are not only well known in China, but also win praises in US, Europe and other international markets.
