Nrs Metal Seated Cast Iron Gate Valve
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Industrial Usage |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Seal Surface: |
Wedge Gate Valve |
Material: |
Cast Iron |
Connection Form: |
Flange |
Product Description
Detailed Product Description

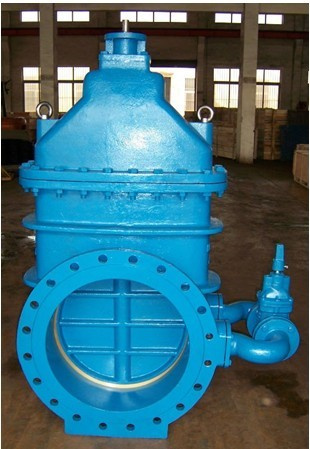

BS 5163 gate valve with metal seated
BS 5163 gate valve with metal seated
SPECIFICATIONS
Size: DN50-DN600
Nominal pressure: PN10-PN16
Design standard: BS5163
Face to face: BS5163/ISO 5752 3Series
End flange: BS4504/BS EN1092
Test: BS5163
STANDARD MATERIALS OF MAIN PARTS
Body/bonnet/wedge: Ductile iron
Stem: Stainless steel420/431/316
Stem nut/holding ring/sealing ring: Brass
Body ring/wedge ring: Brass/bronze
Gland/handwheel: Ductile iron
Bonnet gasket/O Ring/dust ring: NBR
Zhejiang Zhongcheng Valve Co., Ltd. is a professional manufacturer of parallel slide valves, eject valves and knife gate valves. Through years' development and innovation, the company is now experienced in manufacture and development, becoming a large-scale modern enterprise. Advanced management system and production facility and well-organized, complete means of testing and inspection are the assurance of top product quality. The company carries out production in strict accordance with GB in China, API in US, and DIN in Germany. The knife gate valves, parallel slide valves, and eject valves present a fine solution regarding abrasion resistance against solid, powder and sludge mediums in such sectors including electricity generation, petrochemical industry, chemical industry, papermaking, urban construction, sewage disposal, environmental protection, metallurgy, cement industry, etc.
The principal materials for the products include cast iron, cast steel, carbon steel, and stainless steel. The mode of drive includes manual transmission, gear transmission, pneumatic transmission, and motor transmission. The products are widely used in such sectors including petroleum industry, chemical industry, papermaking, alkali industry, etc. High remarks have been received from clients and dealers.
When facing both opportunities and challenges in this new century, Zhongcheng is providing satisfying products with top class quality and services. We sincerely welcome friends from home and abroad for business discussion and for a brilliant future jointly.
Zhejiang Zhongcheng Valve Co., Ltd. is a professional manufacturer of parallel slide valves, eject valves and knife gate valves. Through years' development and innovation, the company is now experienced in manufacture and development, becoming a large-scale modern enterprise. Advanced management system and production facility and well-organized, complete means of testing and inspection are the assurance of top product quality. The company carries out production in strict accordance with GB in China, API in US, and DIN in Germany. The knife gate valves, parallel slide valves, and eject valves present a fine solution regarding abrasion resistance against solid, powder and sludge mediums in such sectors including electricity generation, petrochemical industry, chemical industry, papermaking, urban construction, sewage disposal, environmental protection, metallurgy, cement industry, etc.
The principal materials for the products include cast iron, cast steel, carbon steel, and stainless steel. The mode of drive includes manual transmission, gear transmission, pneumatic transmission, and motor transmission. The products are widely used in such sectors including petroleum industry, chemical industry, papermaking, alkali industry, etc. High remarks have been received from clients and dealers.
When facing both opportunities and challenges in this new century, Zhongcheng is providing satisfying products with top class quality and services. We sincerely welcome friends from home and abroad for business discussion and for a brilliant future jointly.
