Orifice 13~50mm PU225 Pilot Solenoid Valve G3/8"~G2"
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
PU225-03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: |
G3/8",G1/2",G3/4",G1",G1-1/4",G1-1/2",G2" |
| Seal Material: |
NBR,EPDM,Viton |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Membrane Structure |
| Application: |
Household Usage |
| Power Supply: |
AC/ DC |
Product Description

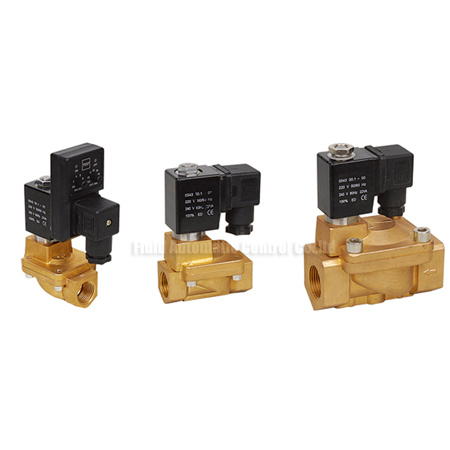

*PU225 Series Solenoid valve aperture flow 13mm,25mm,38mm, 50mm
*Two position two way pilot type
*Body material brass or steel
*Port Size G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”
*Seal NBR,EPDM,VITON for option
*Fast respond,low noise,low consumption
ORDERING CODE |
| PU | 225 | 03 | A | AC220V |
| Type | Motion Pattern | Port size | Mounting and initial state | Voltage |
| PU: PU Series Two Position two way solenoid valve | 225:Pilot Type | 03:G3/8" | A: Standard | DC12V |
| 04:G1/2" | DC24V |
| 06:G3/4" | F:Flange Mounting |
| 08:G1" | AC110V |
| 12:G1-1/4" |
| 14:G1-1/2" | T: With Timer Coil | AC220V |
| G2" |
| Model | PU225-03A | PU225-04A | PU225-06A | PU225-08A | PU225-12A | PU225-14A | PU225-20A |
| SPU225-03A | SPU225-04A | SPU225-06A | SPU225-08A | SPU225-12A | SPU225-14A |
| Working Medium | Air, Water, Oil |
| Motion Pattern | Pilot Type |
| Type | Normal Close Type |
| Aperture of Flow Rate(mm) | 13 | 13 | 25 | 25 | 38 | 38 | 50 |
| CV Value | 4.50 | 4.50 | 12.00 | 12.00 | 22.00 | 30.00 | 48.00 |
| Joint Pipe Bore | 3/ 8 ″ | 1/2″ | 3/ 4″ | 1″ | 1-1/4" | 1-1/2" | 2″ |
| Meterial of Body | Brass or Steel |
| Operation Fluid Viscosity | 50 CST |
| Working pressure | 0.5~10 |
| Max.Pressure Resistance | 15 |
| Operating Temperature | -5~80ºC |
