| Prod Model: |
PC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Horizontal |
| Material: |
Carbon Steel |
| Medium: |
Foam,Mixture of Foam and Water |
| Flow Rate: |
4/8/16/24L/S |
| Pipe Connections: |
Flange |
| Expansion Type: |
Low Expansion |
| Color: |
Red,Yellow,etc |
| Working Pressure: |
0.2MPa-0.6MPa |
| Foam Expansion Ratio: |
≥6% |
| Expansion Certificate: |
ISO,CCC |
Product Description

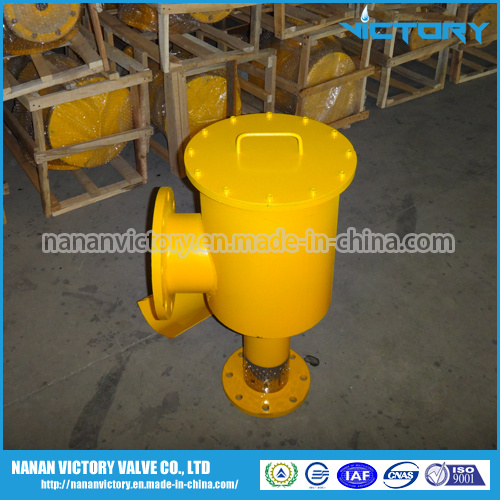

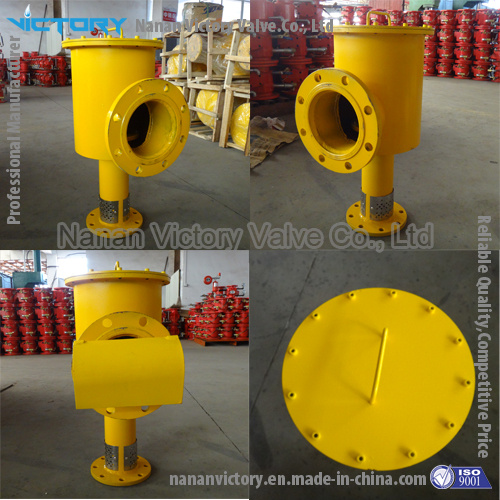

PC 4/8/16/24/32/40L/S air-aspirating foam discharge devices foam generator for fire fighting,foam chamber,foam maker,foam producingFoam chambers are air-aspirating foam discharge devices that are used to protect various types of flammable liquid storage tanks including open top floating roof tanks and cone roof tanks with or without internal floaters.Additional applications include most types of open tanks where flammable liquid products are involved.
They are commonly used with bladder tanks, balanced pressure pump proportioning systems, line proportioners, or foam trucks.These foam chambers can be used with low-expansion foam agents that are determined to be suitable for the flammable liquid being protected.

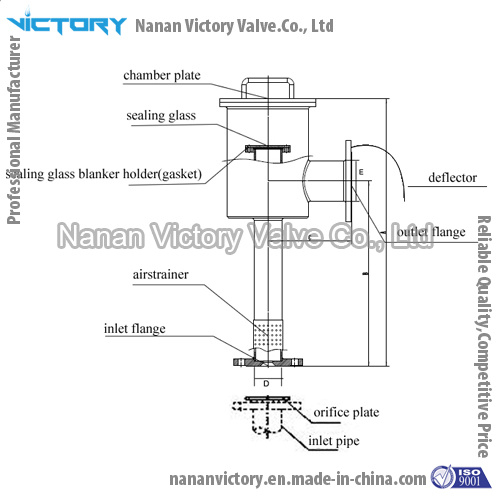

DESCRIPTION:The foam chambers consist of a foam expansion chamber and an integral foam maker with a stainless steel screened air inlet.Each chamber includes an orifice plate, two inlet gaskets, vapor seal assembly, cover gasket, and an outlet gasket.

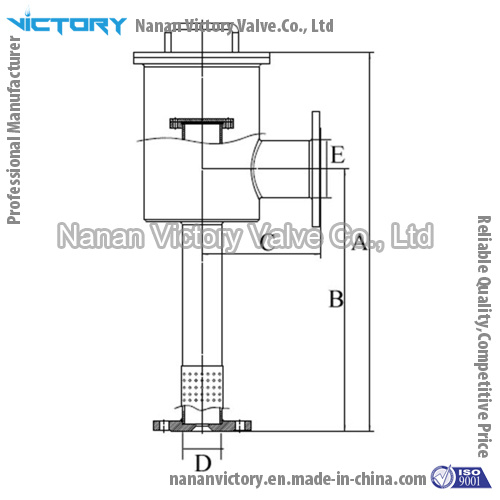

Specification And Dimension:
| FLOW RATE | 4L/S(63.5GPM) | PCL8(127GPM) | PCL16(254GPM) | PCL24(381GPM) |
| A | 600 | 750 | 1050 | 1200 |
| B | 500 | 600 | 900 | 1000 |
| C | 150 | 175 | 225 | 275 |
| D | DN50 | DN65 | DN80 | DN100 |
| E | DN80 | DN100 | DN150 | DN200 |
