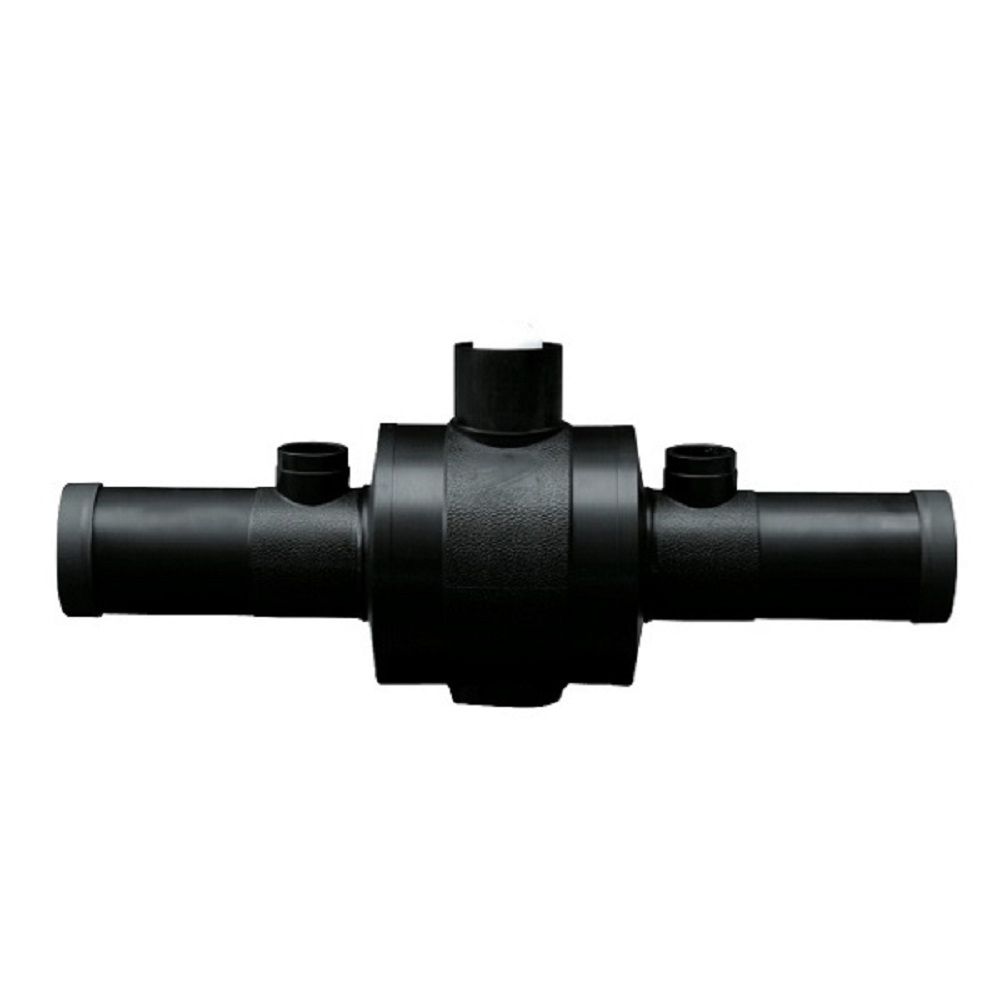

PE Stop Valve Ball Valve (PE Pipe Fittings)
| Price: |
US $ 5-1500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
DN50mm--315mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Black |
| Life Span: |
50 Years |
| Hand In Time: |
5 Days After Finish All Payment |
| Port: |
Shanghai or Ningbo Port |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
Product Description
HDPE Pipe Fittings
1. Name: Electro Fusion PE Ball Valves
2. Series: PE80, PE100
3. Type:SDR11(PN16) SDR17(PN10)
4. Size: DN25--1200mm
5. Material: Borouge
6. MOQ: 1 Piece
7. Color: black blue orange etc.
8. Connection: electro fusion joint,flanged joint
9. Standard: GB13663.2/EN12201, GB15558.2/EN1555
10. Certification: ISO9001:2008
Advantages:
1.Nontoxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
2.Corrosion Resistant: resist chemical matters or electron chemical corrosion
3.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe
5.Longevity: more than 50 years under proper use
6.Recycled and Environment-friendly
Applications:
1. Nature Gas, Mine pipe system.
2. Drinking water pipeline .
3.Chemical industry, chemical fiber, food, forestry, printing and dyeing, pharmaceutical. light industry, paper-making, metallurgy Industrial pipeline.
4.Agricultural irrigation pipe.
Specifications
L
A
B
C
H
φd
Item Number
φD
90
660
110
330
590
835
70
LZF-90
110
680
115
330
590
830
87
LZF-110
160
760
115
415
590
800
126
LZF-160
200
780
125
435
600
935
158
LZF-200
250
980
140
585
700
1210
204
LZF-250
315
985
140
585
700
1245
250
LZF-315
