| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Step by Step Structure of Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
Product Description

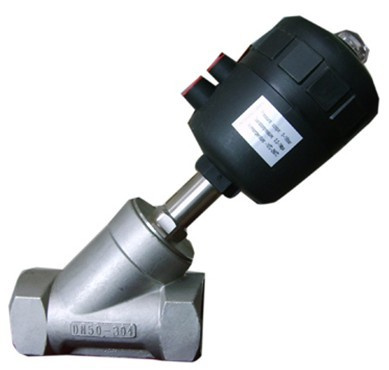

2/2 way pneumatic Angle seat valve
1: Piston operated,
2: For neutral and aggressive liquids and gas,
3: Stainless steel BOD
2/2 way piston operated angle seat valves for neutral and aggressive liquids and gases
Orifice Size: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm
Operation: Double Acting
Acting Type: Normally Closed, Normally Open
Port Size: G1/2'', G3/4'', G1'', G1-1/4'', G1-1/2'', G2''
Pressure: 0~1.6Mpa
Medium Temperature: -10~180oC
Material of body: Stainless steel or Tin Bronze
|
Port Size |
Orifice |
Cv |
Min Pressure |
Max Pressure |
Seals Material |
Body Material |
|
3/8" |
12 |
4.5 |
0. 0MPa |
1.6MPa |
EPDM,NPT,VITON, |
Brass, Stainless Steel |
|
1/2" |
15 |
4.5 |
0. 0MPa |
1.6MPa |
EPDM,NPT,VITON, |
Brass, Stainless Steel |
|
3/4" |
20 |
9.3 |
0. 0MPa |
1.6MPa |
EPDM,NPT,VITON, |
Brass, Stainless Steel |
|
1" |
25 |
12 |
0. 0MPa |
1.6MPa |
EPDM,NPT,VITON, |
Brass, Stainless Steel |
Yuyao Shuntong Solenoid Valve Co., Ltd, which founded in 2005, is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.
Reliable performance, reasonable price, and good quality of service, well received by the customer's trust
We persist in providing our customers with superior quality products and perfect service by constantly innovating and self-improvement. Customers' satisfaction is our unswerving pursuit. Sincerely welcome to visit and supervise our company
We hope to develop the business with more companies in the world, and we are convinced the cooperation can bring us a bright future with our common efforts.
Yuyao Shuntong Solenoid Valve Co., Ltd, which founded in 2005, is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.
Reliable performance, reasonable price, and good quality of service, well received by the customer's trust
We persist in providing our customers with superior quality products and perfect service by constantly innovating and self-improvement. Customers' satisfaction is our unswerving pursuit. Sincerely welcome to visit and supervise our company
We hope to develop the business with more companies in the world, and we are convinced the cooperation can bring us a bright future with our common efforts.
