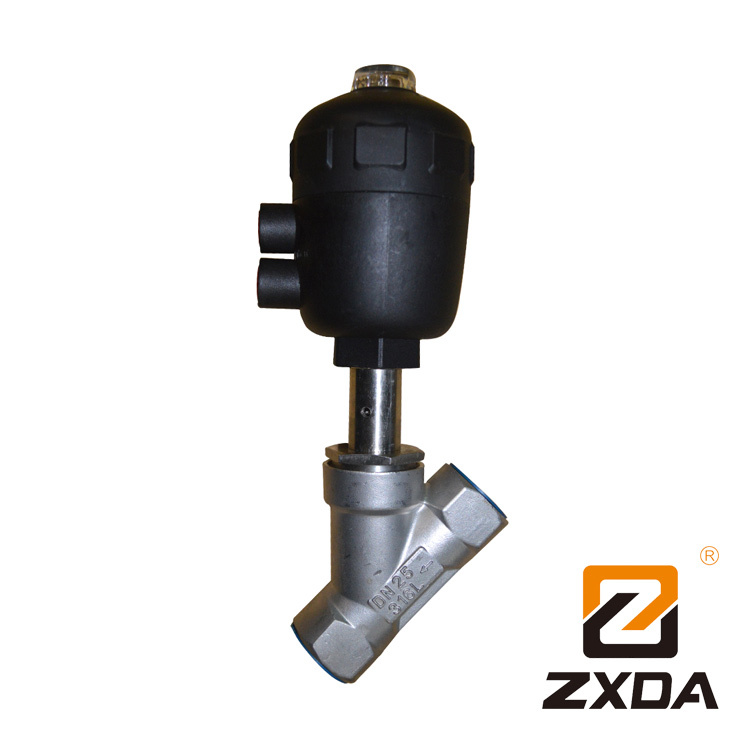

Pneumatic Angle Seat Valve Ss304 Threaded Angle Valve
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
JZ11F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Thread |
| Usage: |
Heating Pipeline |
Product Description
Pneumatic Angle Seat Valve SS304 Threaded Angle Valve
Product specifications:
Long service life, economical investment.
Compact in size and lightweight.
Convenient of maintenance, replacement and disassemble.
Used in food, medicine, textile printing and dyeing etc.
Installation:
Mounting position: at any angle
Installation process:
----Connect valve to pipe, ensure that the valve body which attached with arrow in line with the flow direction of medium.
----Welding type valve installation: please discharged the actuator from valve body before welding
----Thread type valve installation: According to the requirement of customers need not be discharged in advance or discharged from the actuators.
Discharged:
----First ensuring the effect of pressure effect has been lifted before you discharged.
----Before installation, need to remove the body, avoid excessive force, light discharged.
----After discharging, have a good protection of thread, sealing surface and sealing gasket.
----After a good installation of valve body, when install the parts of actuators pay attention to not short-shipped gasket
----After installation, testing valve body and actuators seal are in good condition to ensure that no leak then can be used.
Technical parameters:
| Control type | Normal closed, normal open, double acting |
| Cylinder material | Polyamide PA stainless steel |
| Pneumatic accessories | Limit switch, locator, solenoid valve, filter relief-pressure valve, manual operating device |
| Medium temperature | PTFE:-30~180°C F46:-30~+220°C |
| Environment temperature | -30~80°C |
| Nominal pressure | 1.0~1.6MPa |
| Nominal diameter | DN10-80mm |
| Connection type | Thread, flange, clamp, welded |
| Body construction | One-piece Y-type |
| Body material | 304,316, 316L |
| Spool pressure | 304,316, 316L |
| Seal material | PTFE,F46 |
| Applicable medium | Steam, water, air, oil etc. |
Zhejiang zxda valve control Co., Ltd. is a collection of scientific research, design, manufacturing, sales and service as one of the manufacturers. Specialized is engaged in the research and development and production of the pneumatic valve, the main products are: Pneumatic valve, pneumatic ball valve, pneumatic butterfly valve, pneumatic type knife gate valve, pneumatic Angle seat valve, pneumatic valve, pneumatic control valve, pneumatic feeding valve, pneumatic diaphragm valve, pneumatic pipe clamp valve, pneumatic program control valves, pneumatic sanitary valve, pneumatic actuators, valves, fittings, etc. In the field of pneumatic valve has a wealth of production experience and related experience, exquisite production technology, reliable quality, perfect testing means. Product assembly, explosion-proof solenoid valve, back to the device, the valve positioner and other components, widely used in petroleum, chemical industry, light industry, power station, metallurgy, HVAC, medical, fire, and water treatment and other plumbing field. Products can be assembled explosion-proof solenoid valve, back to the device, the valve positioner and other components. Widely used in petroleum chemical industry, metal smelting, light industry, pharmaceutical, boiler equipment, sewage treatment, printing and dyeing machinery and other fields. As pipe distance single and centralized control by computer operation, is the advanced equipment to realize industrial automation.
Company in the production of the actuator at the same time, and many other famous electromagnetic valve and position feedback switch, filter, the locator manufacturers have good relations of cooperation, can provide users with a variety of supporting services.
The company will with "high quality, good faith" for the purpose, to provide you with satisfactory products and perfect service.
Zhejiang zxda valve control Co., Ltd. is a collection of scientific research, design, manufacturing, sales and service as one of the manufacturers. Specialized is engaged in the research and development and production of the pneumatic valve, the main products are: Pneumatic valve, pneumatic ball valve, pneumatic butterfly valve, pneumatic type knife gate valve, pneumatic Angle seat valve, pneumatic valve, pneumatic control valve, pneumatic feeding valve, pneumatic diaphragm valve, pneumatic pipe clamp valve, pneumatic program control valves, pneumatic sanitary valve, pneumatic actuators, valves, fittings, etc. In the field of pneumatic valve has a wealth of production experience and related experience, exquisite production technology, reliable quality, perfect testing means. Product assembly, explosion-proof solenoid valve, back to the device, the valve positioner and other components, widely used in petroleum, chemical industry, light industry, power station, metallurgy, HVAC, medical, fire, and water treatment and other plumbing field. Products can be assembled explosion-proof solenoid valve, back to the device, the valve positioner and other components. Widely used in petroleum chemical industry, metal smelting, light industry, pharmaceutical, boiler equipment, sewage treatment, printing and dyeing machinery and other fields. As pipe distance single and centralized control by computer operation, is the advanced equipment to realize industrial automation.
Company in the production of the actuator at the same time, and many other famous electromagnetic valve and position feedback switch, filter, the locator manufacturers have good relations of cooperation, can provide users with a variety of supporting services.
The company will with "high quality, good faith" for the purpose, to provide you with satisfactory products and perfect service.
