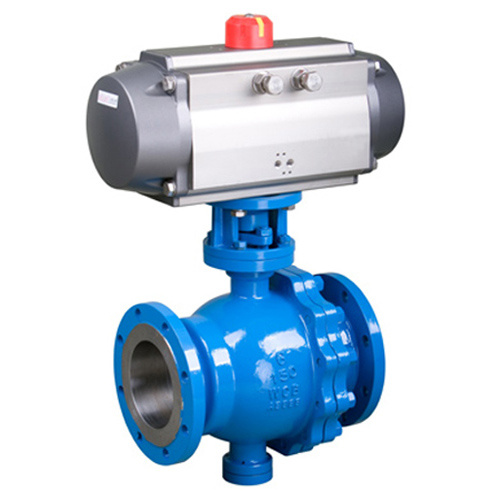

Pneumatic Fixed Ball Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
The main overview of pneumatic fixed ball valve
Q647-type fixed ball valve is a new generation of high-performance ball valve, it is suitable for long distance pipeline and general industrial pipeline. And the design of its safety and resistance to bad environment have been considered, it is applied to all kinds of corrosive and non corrosive medium. Compared to floating ball valve, when it works, the acting force between the fluid pressure and the ball will be totally transmitted to the upper and lower bearings. The ball will not move, the valve sealing accomplished by the spring and medium pressure driving the seat, so the seat will not have to bear excessive pressure, so the valve seat of Q647-type fixed ball valve has little distortion, small operating torque, reliable sealing performance and long service life. Especially apply to the occasion of high pressure large diameter.
The ball of the fixed ball valve is fixed by two stems. During working, the fluid pressure won't make the ball move to the valve seat, and the valve seat will not distort under excessive pressure. There is a oilless bearing on the stem, to reduce the braise. There is a small switching torque, and the two valve seat both use spring to preload. The sealing inserts Teflon into the valve seat, and there a spring behind the steel rim, to insure the seat close to the ball. When the cavity pressure abnormally increases over the spring tight force, the seat will back out of the sphere, which is the automatic pressure relief effect, and the backseat automatically reset. The advancement of the structure make the sealing stable , the operation easy and the service life long, it is extremely suitable for long distance pipeline and general line.
| Prod Model: |
Q647F/H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn50-400 |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
City Gas |
| Material: |
Steel |
| Driving Mode: |
Manual, Pneumatic, Electric and Hydraulic, Turbine |
| Nominal Pressure: |
1.6MPa-6.4MPa |
| Function: |
Blow-Down, Bypass, Relief |
Guocheng Valve Co, Ltd was found in 2003, which is a professional integral with in GB, API, JIS and non-standard valve design, manufacture, sales, service. We produce all welded ball valve, forged steel ball valve, buried type welded ball valve, hard seal ball valve, eccentric half ball valve, V-Type adjusting ball valve, fixed ball valve, floating ball valve, insulation ball valve, 3-way ball valve etc.
The company is located in Zhejiang's Wenzhou hometown of pump and valve-Oubei Town, country into a va1ve to high quality products to meet the needs of users, in good faith to serve the broad masses of users.
Guocheng Valve launches its main product of full welded ball valve with international advanced producing process and technique and international quality assurance and control procedure and advanced producing and operation management. Our valve products are widely applied in countries and regions like, Europe, Middle East, Southeast Asia and China etc. Main products of fully welded ball valves, underground fully welded ba11 valves, relief ball valve and natural gas ball valves with diameter of DN15~DN1200 and operating pressure of 1.0MPa~6.4MPa and operating temperature of -196 ° C~ 550 ° C are available currently. Materials: Carbon steel, alloy steel, heat resistant steel, stainless steel, operational methods: Manua1, with gear, electrical, hydraulic and automatic etc. Main products comply with relevant technical standards in different regions and countries, such as ANSI, API, EN, BS, DIN, ASME and ISO etc, which are applied in various industries of petroleum, chemical industry natural gas, thermal, ship industry, electricity, pharmacy, metallurgy, food, military and construction engineering etc.
We are sincerely welcome new and old customers to contact us for further business negotiation!
