Pneumatic Pipeline Trunnion Ball Valve with Extension Device
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1 1/2"--36" |
| Pressure Rate: |
Low Pressure |
| Power: |
Gear Box |
| Temperature Of Media: |
Normal Temperature |
| Media: |
Heavy Particle Media, Corrosive Media |
| Place Of Origin: |
China |
| Connection End: |
Flanged Type |
| Actuator: |
Pneumatic/Electric Actuator |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Water Industrial Usage |
| Material: |
Cast Steel |
Product Description

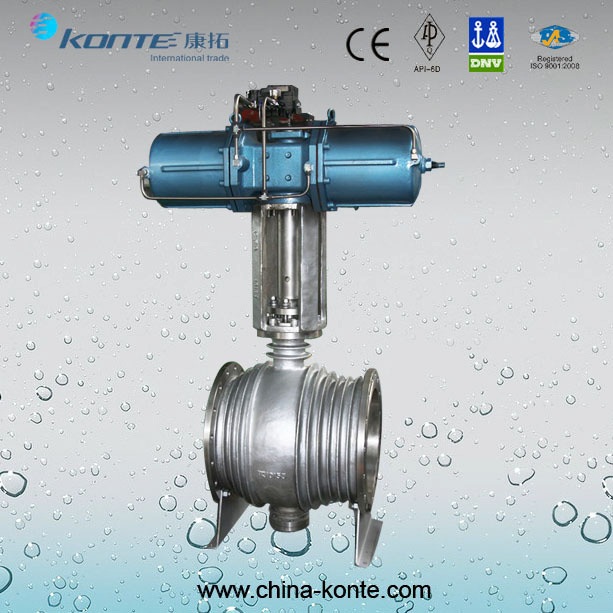

Pneumatic Pipeline Trunnion Mounted Ball Valve With Extension Device
Features
1. Two-piece Cast Steel Body
2. Available with Bi-directional Sealed
3. Trunnion Ball Structure
4. Full Port / Reduced Port
5. Blow-out Proof Stem
6. Various Connection End Standard Available
7. Inner Stem Seals Provide a Reliable Combination of Bearing and Pressurized Stem Seal
8. Assisted by Line Pressure, Provides a Constant Mechanical Force on Ball Against Seat to Maintain Seal
9. Available with Manual Operation or Automized with Actuators.
Specifications
1). Size: 1-1/2"-36"
2). Material: Stainless Steel, CF8, CF8M, CF3, CF3M, 304, 316, 304L, 316L, WCB
3). Seat Material: Co-based Alloy, Ni-base Alloy, Tungsten Carbide and Chromium Carbide
4). Pressure: PN16-PN110, 150LB-600LB
5). Availably Connection: Flanged, SW, BW, Clamped
6). Port: Full Port / Reduced Port
7). Operation: Manual, Pneumatic, Electric
8). Suitable Medium: Heavy Particle Media, Corrosive Media
9). Applications: Petrochemical Industry, Oil Fields, Metallurgy, Coal Chemical Industry, Power Station,
Solar Energy Industry, Paper Making Industry, Pharmacy Industry, Mining Industry etc
10). Design Standard: ASME B16.34
11). Inspection and Testing: API 598
Contact
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact us.
Contact Person: Cathy Zou
| Brand: | KT/OEM |
| Applicable Media: | Heavy Particle Media, Corrosive Media |
| Normal Pressure: | PN16-PN110, 150LB-600LB |
| Certification: | CE/API/DNV/FDA/ISO9001-2008 |
| Sample Testing: | One Sample for free( Under $10),Freight Collect |
| Packing: | Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
| Payment: | T/T, L/C, D/P, Western Union, Paypal |
| Port: | NINGBO/SHANGHAI, Customers' Request |
| Delivery Time: | Within 35days after receiving T/T deposit Payment |
| Term of Delivery: | FOB/CNF/CIF, Customers' Request |
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.
Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).
With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.
We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.
Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).
With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.
We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
