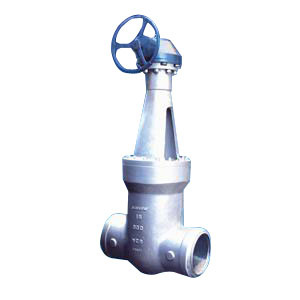

Pressure Sealed Gate Valves-high pressure PSB gate valve

Standard compliance:
1) Design and manufacture: ANSI B16.34
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5
5) Butt-welding end: ANSI B16.25

Specifications:
1) Size: 2" to 36"
2) Class: 600LB - 2500LB
3) Type: OS&Y, Rising Stem, Flexible Wedge, Threaded or Welded seat ring
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20 etc
5) Operation: Handwheel or gear

SIZE	2" TO 36"
CLASS	600LB-2500LB
MATERIAL	CS,SS,ALLOY STEEL
END	BW

Class 150 / 300 / 600 / 900 / 1500
Bolted bonnet, Outside screw & yoke, Rising stem, Non-rising hand wheel, Flexible wedge, Welded or threaded seat ring.

Description:
Design and manufacture: ANSI B16.34 and API 600
Test and inspection : API 598 .
Face to face dimensions: ANSI B16.10
End flange dimensions: 2" - 24" to ANSI B16.5
End flange dimensions :26" - 36" to MSS SP-44
to B16.47 SERIES A
to B16.47 SERIES B
Butt-welding ends: ANSI B16.25
Size: 2" ~ 36"

Materials of body/bonnet and trim

Body/bonnet/disc	WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc.
Trim (Disc/body seat)	F6/F6, 304/304,304L/304L, HF/HF, F6/HF, Monel/Monel, 316/316,316L/316L, Monel/HF and 316/HF etc.

Type of operation: hand wheel, gear, electric or pneumatic actuator etc.

Standard materials of parts

No.	Parts	Materials
1	Body	ASTM A216 WCB
2	Seat ring	A105 + 13CR
3	Wedge	ASTM A216 WCB + 13CR
4	Stem	ASTM A182 F6
5	gasket	Stainless steel and graphite spiral wound
6	Bonnet	ASTM A216 WCB
7	Bonnet bolt	ASTM A193 B7
8	Bonnet nut	ASTM A194 2H
9	Backseat bushing	ASTM A182 F6a
10	Stem packing	Graphite
11	Gland	ASTM A182 F6
12	Gland flange	ASTM A216 WCB
13	Gland eyebolt	ASTM A193 B7
14	Gland nut	ASTM A194 2H
15	Yoke	ASTM A216 WCB
16	Stem nut	ZCuAl10Fe3 / A439 D2
17	Hand wheel	Ductile iron
18	H.W.Lock Nut	ANSI 1020

Dimensions (in mm & inch) and weight

Class 150

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600	750	900
NPS	2	2.1/2	3	4	5	6	8	10	12	14	16	18	20	24	30	36
L(RF)	178	191	203	229	254	267	292	330	356	381	407	432	457	508	610	711
L1(BW)	216	241	283	305	381	403	419	457	502	572	610	660	711	813	915	1016
L2(RTJ)	191	203	216	241	267	279	305	343	368	394	419	445	470	521	622	724
H(OPEN)	400	490	508	585	740	773	995	1160	1375	1569	1765	1978	2219	2611	3197	3737
W	200	200	250	300	300	350	350	400	450	500	600	600	680	750	915	915
RF(Kgs)	18	28	30	50	70	85	128	220	310	450	550	700	910	1130	2780	3700
BW(Kgs)	15	22	26	40	68	77	118	200	290	435	510	650	880	1100	2650	3520

Class 300

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600
NPS	2	2.1/2	3	4	5	6	8	10	12	14	16	18	20	24
L-L1(RF-BW)	216	241	283	305	381	403	419	457	502	762	838	914	991	1143
L2(RTJ)	232	257	298	321	397	419	435	473	518	778	854	930	1010	1165
H(OPEN)	470	525	533	633	800	805	1024	1232	1460	1645	1841	1988	2208	2603
W	200	200	250	250	350	350	400	450	500	600	600	680	750	915
RF (Kgs)	24	44	48	73	124	144	226	350	580	715	1050	1235	1655	2320
BW (Kgs)	20	35	37	54	100	110	174	285	495	615	940	1090	1500	2100

Class 600

DN	50	65	80	100	150	200	250	300	350	400	450	500	660
NPS	2	2.1/2	3	4	6	8	10	12	14	16	18	20	24
L-L1(RF-BW)	292	330	356	432	559	660	787	838	889	991	1092	1194	1397
L2(RTJ)	295	333	359	435	562	664	791	841	892	994	1095	1200	1407
H(OPEN)	474	520	547	703	913	1077	1276	1490	1623	1816	2260	2260	2900
W	250	250	250	300	450	500	600	680	750	850	960	960	1100
RF (Kgs)	35	55	72	126	265	444	700	940	1310	1610	2070	2405	3810
BW (Kgs)	32	47	64	103	218	374	570	830	1012	1217	1760	2000	3200

Class 900

DN	50	65	80	100	150	200	250	300	350	400	450	500	600
NPS	2	2.1/2	3	4	6	8	10	12	14	16	18	20	24
L-L1(RF-BW)	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
L2(RTJ)	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568
H(OPEN)	620	705	695	825	1065	1320	1540	1840	2135	2380	2580	2780	3130
W	300	350	350	400	500	600	750	850	850	960	960	1100	1100
RF (Kgs)	95	128	125	192	378	635	900	1550	2170	3070	3930	5120	7800
BW (Kgs)	80	110	105	165	330	520	730	1300	1800	2650	3400	4300	6500

Class 1500

DN	50	65	80	100	150	200	250	300	350	400	450	500	600
NPS	2	2.1/2	3	4	6	8	10	12	14	16	18	20	24
L-L1(RF-BW)	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943
L2(RTJ)	371	422	473	549	711	841	1000	1146	1276	1407	1559	1686	1971
H(OPEN)	695	705	770	872	1092	1400	1600	1840	2025	2230	2430	2630	3130
W	400	400	400	500	600	750	850	960	960	1100	1100	1200	1200
RF (Kgs)	95	128	181	275	627	1000	2200	3300	4200	6300	7500	9000	11000
BW (Kgs)	80	110	145	220	560	850	1950	2850	3550	5500	6500	8000	9500
