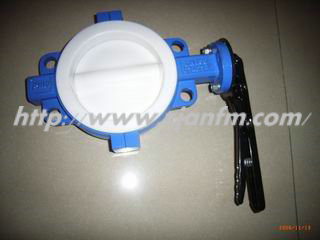

PTFE Lined Butterfly Valve
| Price: |
Negotiable |
| Min Order: |
1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Seal Form: |
Auto Sealed |
| Material Of Seal Surface: |
Soft Sealed |
| Structure: |
Centre Sealing |
Product Description
Specifications
PTFE Lined Butterfly Valves
|
Product: |
PTFE Lined Butterfly Valve |
|
Size: |
DN15~DN1200 |
|
Max. Pressure: |
PN 16,PN10,J, 150Lb |
|
Names of parts |
Material |
|
Body |
Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel. |
|
Disc |
Ductile Iron Nylon Coating, Ductlin Iron Chloropolyether Coating, Plated Ductile Iron,
Alumium Bronze, Stainless Stell, Plated Carbon Steel, Carbon Steel Enamel Coating. |
|
Seat |
NR, NBR, CR, EPDM, Hypalon, Si, FPm, PTFE. |
|
Stem |
Stainless Steel, Plated Carbon Steel, Carbon Steel Nylon Coating. |
|
Bushing |
Luberized Bronze, PTFE. |
|
O-Ring |
EPDM, NBR. |
|
Outside Coating |
DN50-200(2"-8")Plastic Coating, DN250-1000(10"-40"),Paint Coating. |
|
Liner: |
PTFE, FEP PFA, PVDF etc. |
|
Standard: |
API, DIN, BS, JIS, ANSI, GOST, ISO, GB |
|
Connection Form: |
Double-Clip Type |
|
Advantages: |
1.non-stick property
2.Self sealing faces
3.High resistance to pressure and vacuum application
4.Suitable for pressure and vacuum application
5.Easy to install
6.Has long life and zero maintenance
7.More economical than glass lined and special alloys
8.Can be tailor mad to suite customer's requirement |
|
Application: |
1.where highly corrosive material are used in any area of chemical process industry
2.Provides improved operational safety for personal and plants when handing extremely hazardous materials
3.Where product purity is critical viz foods pharmaceuticals and fine chemicals
4.Where downtime , due to pipe replacement, need s to be avoided
5.Where environmental pollution is to be controlled |
|
Actuator |
hand actuator, wormgear actuator,electric actuator,pneumatic actuator |
|
Packing: |
Export wooden case |
|
Payment: |
FOB USD100~1000 per pcs |
|
Min. Order: |
10 Pcs |
|
Transportation: |
By Sea or By Air |
|
Transportation: |
By Sea, By Air |
|
Delivery: |
7 days or according customer's requirement |
|
Export Markets: |
North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe |
Zhejiang Anneng Valve Co., Ltd. is a company with develop, exploitation, production and marketing of high-temperature high-voltage station valve. The company has advanced management mechanism and sophisticated equipment for machinery processing and examining, testing, advanced product structure, technical skills. Produce according to the Ministry of superscript, GB, the Industry Standard, and the United States, Japan, Germany, France and other countries standards.
Zhejiang Anneng Valve Co., Ltd. has always been able to reply on science and technology, continuous innovation and strict management system so that the company has set up a complete management system, Product sales, contracts, warehouse, financial, personnel efficiency of the whole company are closely united, guarantee the quality of the products strictly. The company's long-term goal is the company enters the information network, in-depth development of high temperature and high pressure valves and other valve products. The main products are valve, closing valves, Power Station Valve, ball valve, check valve, butterfly valve, the U. S. Standard valves, and other hundreds of different specifications. The main materials used WCB(A 105), WC9(F11), WC9(F22), LCB(ZGCr5Mo), ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L), CF7MC20full metal, MONEL, Titanium and so on, Driver forms are: Manual, electrical, pneumatic, (spur, bevel) gear, over-type worm gear and so on. Nominal diameter: DN10mm-1200mmNPS 1/8"-40" Nominal pressure: PN0.6MPa-42MPa API 150LB-2500LB: JIS 10K-63K: Operating temperature: -196° C-600° C; Applicable medium: Water, steam, oil, nitric acid, acetic acid type, the medium-oxidation, urea, oxygen, coal gas, liquid ammonia, ethylene oxide, methanol, Acrylic, propane and so on.
Zhejiang Anneng Valve uses the quality of management, production technology and services to ensure quality assurance, return the majority of uses love of the valves with sound reputation, uses business philosophy "Quality First, the user first" continue applies of new technologies, new processes, and actively develop quality products. Welcomed the new and old customers work together for a better tomorrow!
Zhejiang Anneng Valve Co., Ltd. is a company with develop, exploitation, production and marketing of high-temperature high-voltage station valve. The company has advanced management mechanism and sophisticated equipment for machinery processing and examining, testing, advanced product structure, technical skills. Produce according to the Ministry of superscript, GB, the Industry Standard, and the United States, Japan, Germany, France and other countries standards.
Zhejiang Anneng Valve Co., Ltd. has always been able to reply on science and technology, continuous innovation and strict management system so that the company has set up a complete management system, Product sales, contracts, warehouse, financial, personnel efficiency of the whole company are closely united, guarantee the quality of the products strictly. The company's long-term goal is the company enters the information network, in-depth development of high temperature and high pressure valves and other valve products. The main products are valve, closing valves, Power Station Valve, ball valve, check valve, butterfly valve, the U. S. Standard valves, and other hundreds of different specifications. The main materials used WCB(A 105), WC9(F11), WC9(F22), LCB(ZGCr5Mo), ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L), CF7MC20full metal, MONEL, Titanium and so on, Driver forms are: Manual, electrical, pneumatic, (spur, bevel) gear, over-type worm gear and so on. Nominal diameter: DN10mm-1200mmNPS 1/8"-40" Nominal pressure: PN0.6MPa-42MPa API 150LB-2500LB: JIS 10K-63K: Operating temperature: -196° C-600° C; Applicable medium: Water, steam, oil, nitric acid, acetic acid type, the medium-oxidation, urea, oxygen, coal gas, liquid ammonia, ethylene oxide, methanol, Acrylic, propane and so on.
Zhejiang Anneng Valve uses the quality of management, production technology and services to ensure quality assurance, return the majority of uses love of the valves with sound reputation, uses business philosophy "Quality First, the user first" continue applies of new technologies, new processes, and actively develop quality products. Welcomed the new and old customers work together for a better tomorrow!
