| Prod Model: |
Pump and Valve PTFE Parts |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Pump and Valve PTFE Parts |
| Color: |
White, Colorful |
| Density: |
2.1~2.3G/Cm3 |
| Tensile Strength: |
≥14.0mpa |
| Elongation At Break: |
≥140% |
| Filling: |
Graphite, Carbon, Bronze |
| Certification: |
ISO9001/14001 RoHS |
| Package: |
Carton/Wooden Cases |
| Place Of Origin: |
Jiangsu, China (Mainland) |
| Temperature: |
-180 - + 260 Degree |
| Material: |
PTFE |
Product Description

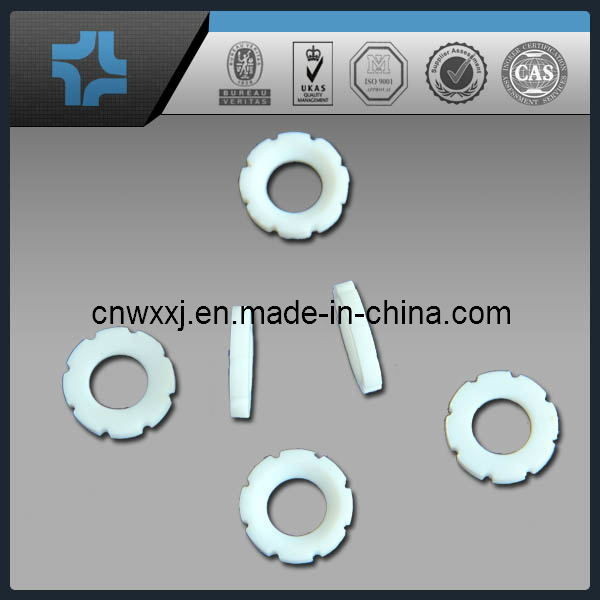

Pump and valve PTFE Parts Function: For various types of electronic, electrical, automation equipment, industrial equipment components. Widely used in petrochemical, instrument, space, chemical, electric, cement metallurgy industries. Serve as electricity insulate spares, sealed washer, anteseize substance and wire insulate protect set, corrosive influent agential pipeline etc.
Pump and valve PTFE Parts Specifications
1. Material: PTFE
2. Color: Whtie, or any other
3. Working temperature: -180~260 degree (with/without CF/GF filled)
4. Processing: Machine or by mold
5. Sizes: As requirement
We can produce any special articles, only send us your size and drawing, then we can produce samples for you.
Pump and valve PTFE Parts Main Features:
PTFE has excellent all-round properties performing well at both high and low temperatures, being corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.
Pump and valve PTFE Parts appliction
1. Sealing
2. Medical device components
3. Electrical components
4. Pump and valve components
5. Food processing machinery components
Filled PTFE Products have strong corrosion resistance and friction-resistance,By addifiller such as glass fiber,carbon fiber,copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder,ceramic fiber,metal powder,polyamide,PS,the hardness,compression strength and abrasion resistance of the products is improved ,in addition,it will have good heat conductivity and low heat expansion coefficient.
|
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Reduces creep and cold flow |
|
Minimal effect on chemical and electrical properties |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Good chemical resistance |
|
Various types and amounts of carbon can be added to alter conductivity |
|
Graphite: |
Reduces coefficient of friction |
|
Reduces initial wear |
|
Increases strength |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Minimal effect on chemical and electrical properties |
|
Bronze: |
Increases hardness and wear resistance |
|
Increases dimensional stability and compressive strength |
|
Not suitable for corrosive or electrical applications |
|
|
|
|
|
|
|
Technical index |
|
|
|
|
|
Properties |
Unit |
Result |
|
|
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
|
|
Tensile strength (min) |
MPa |
30 |
|
|
|
Ultimate elongation (min)(min) |
% |
300 |
|
|
|
|
|
|
|
|
|
Product No. |
Filled compound and content by weight |
Tension strength MPa min |
Ultimatestrength% min |
Compresivestrength MPa min |
|
1 |
20% glass fiber |
10 |
120 |
16 |
|
2 |
25% glass fiber |
10 |
100 |
16 |
|
3 |
20% glass fiber graphile |
10 |
120 |
16 |
|
4 |
60% bronze |
10 |
80 |
20 |
|
5 |
15% carbon fiber |
11 |
130 |
16 |
|
6 |
24% bronze 12%glass fiber 6% graphite |
9 |
100 |
16 |
|
7 |
15%glass fiber 105polyikmide 5% graphite |
10 |
120 |
16.7 |
Wuxi Xiangjian PTFE Product Co., Ltd. is the member of China fluorine-silicone material industry association and the committee member of the filler static sealing committee of China's liquid air sealing association. We produce polytetrafluoroethylene pipe, stick, plate, film, oil & oil free crude materials, as well as belts, packing sets and various rubber products. We are the only manufacturer of polytetrafluoroethylene products in Wuxi.
