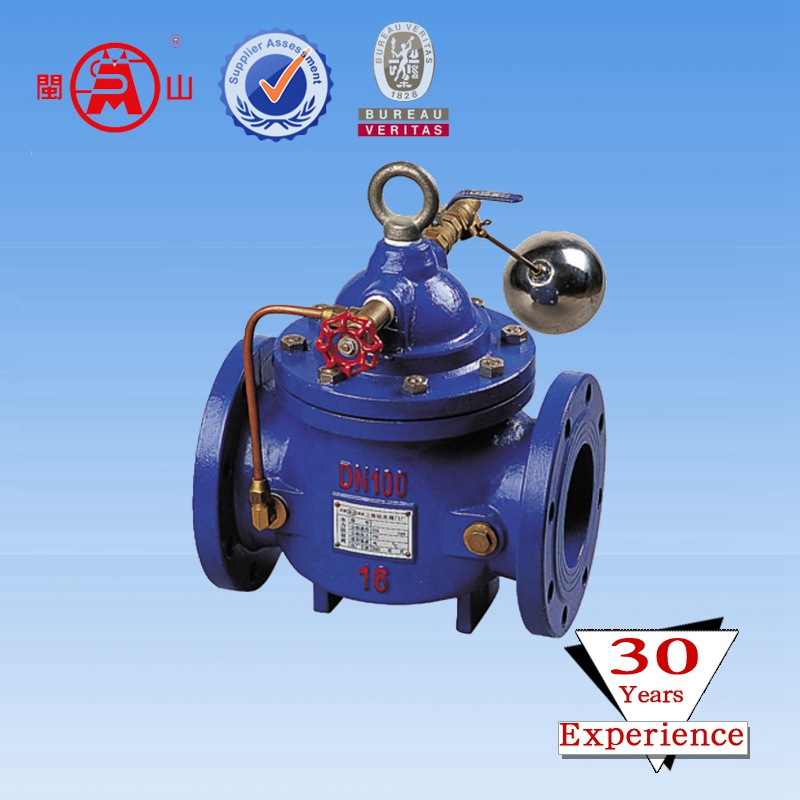

Remote Control Float Valve
Price: |
US $ 50/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Prod Model: |
100X |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nominal Pressure: |
1.6MPa |
Test Pressure Of The Shell: |
2.4MPa |
Sealed Test Pressure: |
1.76MPa |
Suitable Temperature: |
≤80°c |
Suitable Medium: |
Water |
Port Size: |
Dn40-400 |
Flange Connector: |
ANSI,Asme,DIN,API,ASTM |
O-Ring/Gasket: |
NBR/EPDM |
Balt&Screen: |
Brass |
Body&Bonnet: |
Di Ggg50/Ci Gg25 |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Material Of Seal Surface: |
Soft Sealed |
Connection Form: |
Flange |
Structure: |
Double-Eccentric Sealing |
Seal Form: |
Supercharging Pressured Sealed |
Working Temperature: |
Medium Temperature (',120??C
|
Application: |
Household Usage |
Product Description
Specifications
Remote Control Float Ball Valve 100X
1.16 Years OEM & ODM.
2. Best price and high quality.
3. Standard: ANSI, ASME, DIN, API, ASTM
Remote Control Float Ball Valve 100X
The main valve is controlled by a float ball valve which locates on the top of tank or reservoir. The valve maintains the maximum water level of tank or reservoir continuously. Product Simple Specification.
100X diaphragm control ball valve is a multi-function htdaulic control valve, The water level can be controlled below a preset elevation, This valve can be widely used in influent pipes of the pools and water tower in hig-rise buildings, municipal domestic water systems, fire fighting facilites, factories and mines. When adding a solenoid valve, then comprises another type (i, e, 106X), which provides double control to water level, normally used at high overflow prevention project. Pressure Rating: PN10. PN16. PN25/Class150Size Range: DN20mm-DN800mm (3/4" - 32")
Nominal diameter DN(mm) |
Size(mm) |
L |
A1 |
A |
H1 |
H |
F |
20 |
150 |
130 |
325 |
179 |
212 |
116 |
25 |
160 |
130 |
325 |
179 |
212 |
116 |
32 |
180 |
130 |
325 |
179 |
212 |
116 |
40 |
200 |
140 |
335 |
210 |
265 |
168 |
50 |
203 |
140 |
335 |
210 |
265 |
168 |
65 |
213 |
140 |
335 |
215 |
310 |
180 |
80 |
241 |
145 |
345 |
245 |
350 |
210 |
100 |
272 |
155 |
365 |
305 |
460 |
284 |
125 |
292 |
165 |
385 |
365 |
520 |
310 |
150 |
333 |
180 |
410 |
415 |
570 |
370 |
200 |
400 |
205 |
465 |
510 |
840 |
463 |
250 |
480 |
225 |
505 |
560 |
890 |
525 |
300 |
550 |
245 |
545 |
658 |
1030 |
625 |
350 |
620 |
275 |
595 |
696 |
1090 |
705 |
400 |
685 |
285 |
625 |
735 |
1150 |
778 |
450 |
750 |
285 |
625 |
735 |
1150 |
778 |
500 |
810 |
410 |
780 |
750 |
1110 |
690 |
600 |
935 |
456 |
888 |
850 |
1286 |
785 |
