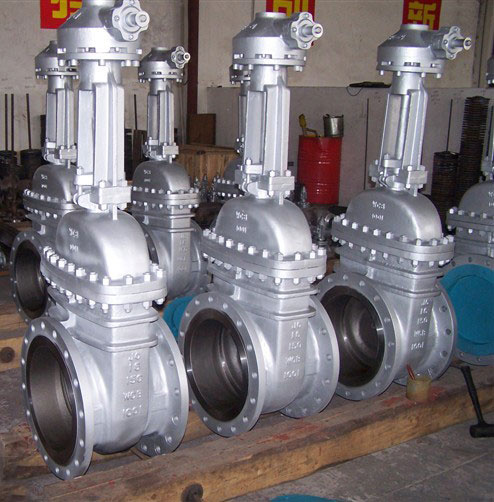

Rising Gate Valve
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12" |
| Pressure: |
Class 150lbs |
| End Connetion: |
Flanged Ends |
| Operation: |
Handwheel |
| Certificate: |
3.1 & CE Certificates |
| Stocklots: |
in Stock |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
Product Description
Wedge gate valve
1. Applicable Standards: Steel Gate Valve, API 600/API 6D, Steel Gate Valve, ISO 10434/ISO 14313, steel Valves, ASME B16.34, Face to Face, ASME B16.10, End Flanges, ASME B16.5, Buttwelding Ends, ASME B16.25, Inspection and Test, API 598/API6D
2. Design Description: Full Port Design, OS&Y, Outside Screw and Yoke, Bolted Bonnet, Flexible wedge, fully guided, Choice of Solid or split wedge, Renewable seat rings, Forged T-Head Stem, Rising Stem and Non rising handwheel, Flanged or buttwelding ends, Available with BG Operator.
|
Rating / Size: |
|
Class 150 – DN50 to DN600 (2” to 24” ) |
|
Class 300 – DN50 to DN600 (2” to 24” ) |
|
Class 600 - DN50 to DN400 (2” to 16” ) |
|
Class 900 - DN50 to DN300 (2” to 12” ) |
|
Class 1500 – DN50 to DN150 (2” to 6” ) |
|
Class 2500 – DN50 to DN100 (2” to 4” ) |
|
Standards |
|
|
Design Standard: |
API 600, BS 1414, ASME B16.34 |
|
Face to Face: |
ASME B 16.10 |
|
Flange Drilling: |
ASME B 16.5, EN 1092, JIS B-2220, ASME B 16.25, ASME B 16.11 |
|
Testing: |
API-598 |
|
End Connection: |
F. F., R. F., RTJ, Buttweld, Socketweld, Screwed NPTF |
|
Materials |
|
|
Shell Materials: |
ASTM A216 Gr. WCB, ASTM A216 Gr. WCC, ASTM A217 Gr. WC1, ASTM A217 Gr. WC4, ASTM A217 Gr. WC5, ASTM A217 Gr. WC6, ASTM A217 Gr. WC9, ASTM A217 Gr. C5, ASTM A217 Gr. C12, ASTM A351 Gr. CF3 ASTM A351 Gr. CF8, ASTM A351 Gr. CF3M, ASTM A351 Gr. CF8M, ASTM A351 Gr. CF8C, ASTM A351 Gr. CN7M, ASTM A351 Gr. CD4MCu, ASTM A352 Gr. LCB, ASTM A494 Gr. N-12MV, ASTM A494 Gr. CW - 12MW. |
|
Trim Materials: |
410, 304, 316, 304 L, 316 L, 321/347, MONEL, CA-6NM |
|
Trim Materials Cast: |
ASTM A 217 Gr. CA 15, ASTM A 315 Gr. CF8, ASTM A 351 Gr. CF8M, ASTM A 351 Gr. CF3, ASTM A 351 Gr. CF3M, ASTM A 351 Gr. CF8C, ASTM A 494 Gr. M-35-1, ASTM A 743 Gr. CA6N |
|
Wrought: |
ASTM A276 Type 410, ASTM A276 Type 304, ASTM A276 Type 316, ASTM A276 Type 304L, ASTM A276 Type 316L, ASTM A276 Type 321/347, ASTM B164 Type 4400 |
|
Features |
|
Available in manual operated & actuated control |
|
Hard Facing, Lapping on critical parts |
|
Material certification as per EN 10204-3.1, EN 10204-3.2 (Third Party Inspection) & NACE MR-01-75 |
|
Available in Bellow sealed design |
|
One piece Body & Yoke |
|
Design to handle Paper & Pulp, Food Processing, Petrochemical, Sugar Industries, Textile Industries, Waste Water |
|
Low friction & lower running torque |
TECHNSPERT is your Technology Expert of industrial valves and pipeline accessories.
At TECHNSPERT, you will find an extensive range of industrial valves, fittings, pipes, flanges, gasket, fasteners and other spare parts for oil, gas, refinery, water treatment and industrial applications, with more than 80 products available in over 600 sizes and 30 materials.
The company mainly manufactures the valves according to ANSI, API, MSS, JIS, DIN, BS, NF and Chinese GB standards. Our main Manufacturing and Supplying Capability Covering Gate Valve, Ball Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve, Plug Valve, Strainer etc. Approved by ISO9001: 2008, API600, API6D, API6FA and CE/PED. The products are widely used in the field of petroleum, chemical, metallurgical, power, fuel gas, city pipeline networks. The products have been exported to USA, Canada, Germany, Peru, Jordan, Kenya and other countries, and has set up the office in Manhattan, New York. With advanced technology and reliable quality, our products have gained great reputation all over the world...
With a wide range of valves from stock or on site at the factory, we are well placed to meet delivery times expected in today's commercial climate. Today, by combining stocks of various of valves, with indepth technical expertise in their specification and use, we are relied upon, as leading valve suppliers, to source and modify valves that precisely meet our customers requirements and deadlines.
TECHNSPERT is a company on the move, ever growing and expanding. By working with TECHNSPERT our customers join in a partnership with a family of factories who bring traditional values of service and quality into a technological combination. If you have any questions or would like more information, please feel free to contact us.
TECHNSPERT is your Technology Expert of industrial valves and pipeline accessories.
At TECHNSPERT, you will find an extensive range of industrial valves, fittings, pipes, flanges, gasket, fasteners and other spare parts for oil, gas, refinery, water treatment and industrial applications, with more than 80 products available in over 600 sizes and 30 materials.
The company mainly manufactures the valves according to ANSI, API, MSS, JIS, DIN, BS, NF and Chinese GB standards. Our main Manufacturing and Supplying Capability Covering Gate Valve, Ball Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve, Plug Valve, Strainer etc. Approved by ISO9001: 2008, API600, API6D, API6FA and CE/PED. The products are widely used in the field of petroleum, chemical, metallurgical, power, fuel gas, city pipeline networks. The products have been exported to USA, Canada, Germany, Peru, Jordan, Kenya and other countries, and has set up the office in Manhattan, New York. With advanced technology and reliable quality, our products have gained great reputation all over the world...
With a wide range of valves from stock or on site at the factory, we are well placed to meet delivery times expected in today's commercial climate. Today, by combining stocks of various of valves, with indepth technical expertise in their specification and use, we are relied upon, as leading valve suppliers, to source and modify valves that precisely meet our customers requirements and deadlines.
TECHNSPERT is a company on the move, ever growing and expanding. By working with TECHNSPERT our customers join in a partnership with a family of factories who bring traditional values of service and quality into a technological combination. If you have any questions or would like more information, please feel free to contact us.
