RoHS UL Brass Solenoid Valve
| Price: |
US $ 18-20/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RoHS UL Brass Solenoid Valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Working Pressure: |
45bar |
| Temperature Of Medium: |
-25c~105c |
| Voltage DC: |
12V, 24V, 110V, 220V |
| Voltage AC: |
36V, 24V, 110V, 220V |
| Mopd: |
15~21bar |
| Certificate: |
UL/cUL |
| Valve Type: |
Fdf-Mg High Pressure Solenoid Valve |
| Connection: |
Welding |
| Port: |
All Port |
| Medium: |
R22,R134A,R404/507,R134A |
| Type: |
Pilot Operated |
| Connection Form: |
Tubular |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Application: |
Household Usage |
| Power Supply: |
AC and DC |
| Usage: |
Refrigeration |
Product Description

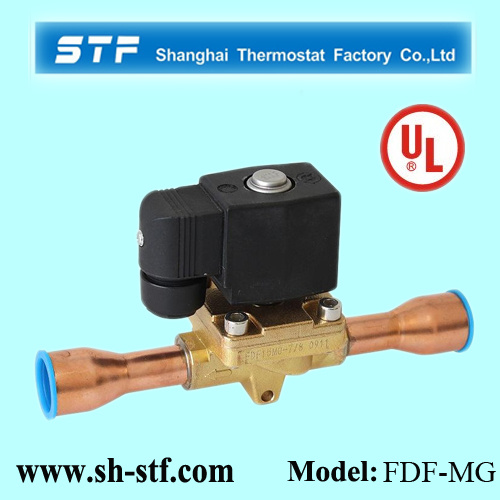

FDF-MG High Pressure Solenoid Valve
General Characteristics
l Complete range of solenoid valves for refrigeration, freezing and air conditioning plant.
l Supplied both normally closed (NC) and normally open (NO) with de-energized coils.
l Wide choices of coils for A.C. and D .C
l Suitable for all fluorinated refrigerants.
l Opening pressure diff.:
Pilot type Direct-acting type
AC:0.05-21bar AC:0-21bar
DC:0.05-17bar DC:0-17bar
l Max working pressure:30bar.
l Temperature of medium :-25ºC~105ºC.
l FDF is also available with flange connections.
l Versions with UL and CUL approval can be supplied to order.
1)Our advantage:
We are the manufacturer with more than 60 years experience in valves. Best price,quality and service, Also we can control the production status.
Shanghai Thermostat team with strong ability in designing and after sell service. Cooperation withCarrier,ALCO, Johnson Controls has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7)All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose Shanghai Thermostat , we are always ready!
Model | Form
of Connection | Connection Size | Opening diff. pressure(bar) | Kv Value
m 3 /h | Max working pressure
(bar) | Dimensions(mm) | Rated power
(V) |
mm
ODF | in
ODF |
Min |
Max(liquid) | L
mm | W
mm | H
mm | AC
(V) | DC
(V) |
50/60Hz AC | DC |
| FDF3G | ODF | 6 | 1/4 | 0 |
28 |
24 | 0.27 |
45 | 117 | 31 | 76 | 24
36
110
220 | 12
24
110
220 |
| 10 | 3/8 |
| FDF6MG | 10 | 3/8 | 0.05 | 0.6 | 127 | 32 | 80 |
| 12 | 1/2 |
| FDF8MG | 10 | 3/8 | 1.0 | 137 | 38 | 88 |
| 12 | 1/2 | 137 |
| 16 | 5/8 | 162 |
| FDF10MG | 12 | 1/2 | 1.8 | 137 | 45 | 88 |
| 16 | 5/8 | 166 |
| FDF15MG | 16 | 5/8 | 3 | 174 | 52 | 96 |
| 19 | 3/4 |
| 22 | 7/8 |
| FDF20MG | 22 | 7/8 | 5 | 190 | 58 | 115 |
| 22 | 7/8 long | 230 |
| 28 | 9/8 | 250 |
| FDF25MG | 28 | 9/8 | 9.8 | 236 | 72 | 119 |
| 35 | 11/8 |
| FDF32MG | 35 | 11/8 | 15 | 281 | 86 | 133 |
| 42 | 13/8 |
| FDF40MG | 42 | 13/8 | 25 | 312 | 126 | 158 |
| 54 | 17/8 |
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.
In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.
Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.
Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.
We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.
In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.
Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.
Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.
We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
