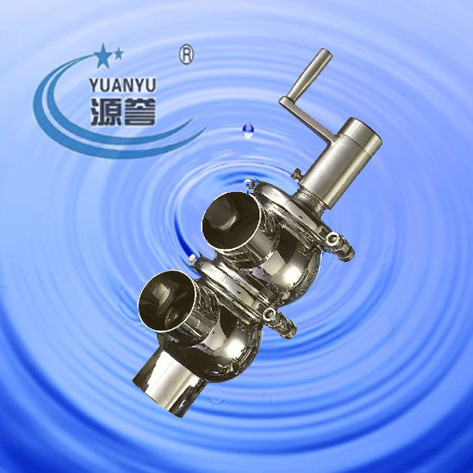

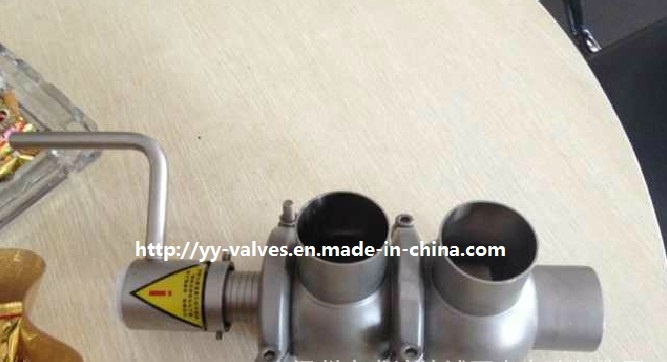

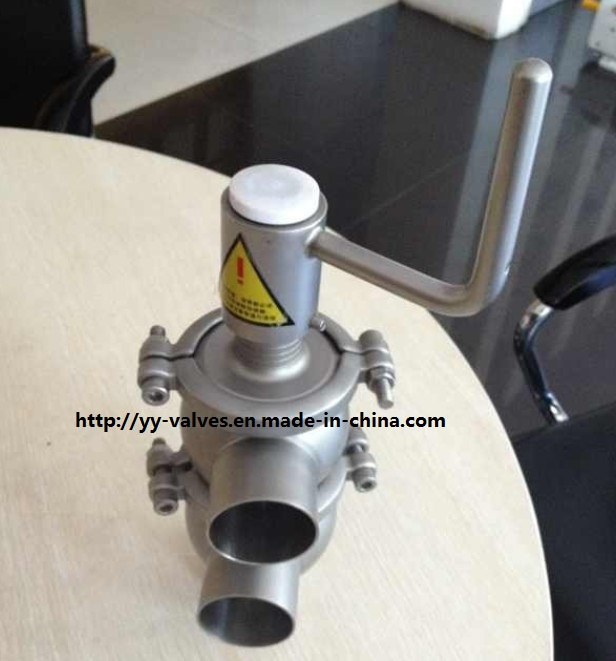

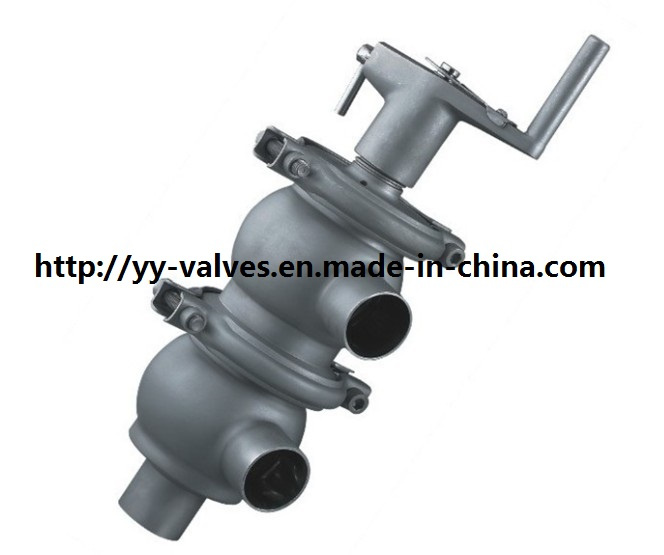

Sanitary Reversing Valve (100403)
| Price: |
US $ 130/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
100403 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: Manual: |
Size:Dn25-100, 1"-4" |
Product Description
Sanitary reversing valve (L/L type)
1) Specification: DN25-DN100, 1"- 4"
2) Standard: ISO, IDF, DIN, 3A, SMS
3) Material: SUS304, SUS316L, AISI304, AISI316L.AISI316
4) Power: Manual and pneumatic actuator.
5) Material of seal: EPDM/SILICONE/VITION
6) Gasket:EPDM/SILICONE/VITON/
7)Type of body: L, T,Y and L/L, T/L, T, L/T, T/T
8)Max production pressure:10bar
9)Temperature range:Full vacuum -10degree+140degree (EPDM)
10)Surface treatment: mirror,satin,sand blaste.
11) Work principle: The series of valve is major let the medium reach the purpose of stop end. Because the goods tightness and cleanability, they are extensively used to different sanitary industry areas.
12) Application: Dairy products, beer, food, beverage, pharmacy and bioengineering
Don't hesitate to contact us if you need more details or catalogue. We can produce this kind of product according to your requirement if your specification is out of our standard.according to your requirement if your specification is out of our standard.
|
Size: |
1"-4" or DN25-DN100 |
|
Material: |
|
|
flow area: |
AISI316,AISI316L |
|
plug stem: |
AISI304, |
|
gasket for flow area: |
EPDM/SILICONE/VITON |
|
other seals: |
NBR and EPDM |
|
surface: |
Mirror,Satin,Sand blaste |
|
Type: |
L,T,Y AND L/L,T/L,L/T,T/T |
|
Connection: |
Weld, Tri-clamp,Thread |
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
