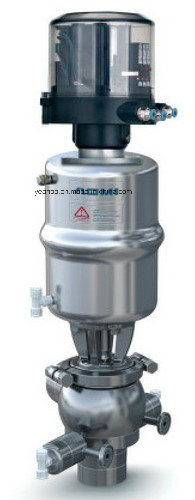

Sanitary Stainless Steel Pneumatic Single Seat Mix-Proof Valve
| Price: |
US $ 1-50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
YH-FHF001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ss Material: |
Forged Stainless Steel 304, 304L, 316, 316L |
Product Description

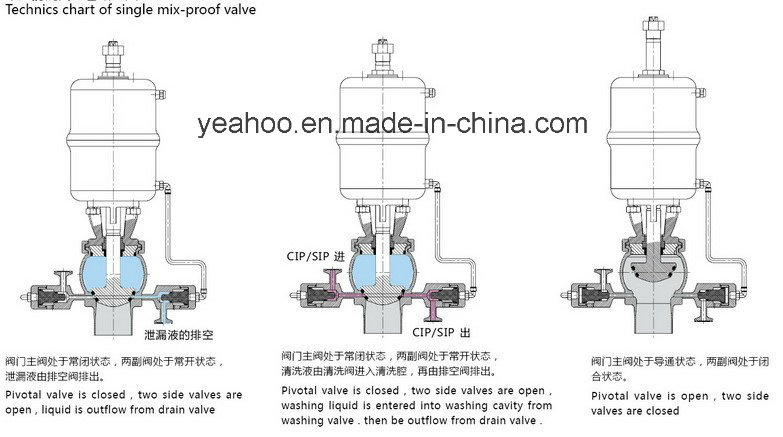

ApplicationsMix-proof single seat valve is a pneumatic valve, it was a flexible in sanitary valve design, based on mature design of single-seat valve, it was apply to the process about there are two different liquid flows through the same valve on the same time, not only can prevent fluid mixed but also easy to monitor the work of the occasion, widely used in dairy, beverage, pharmaceutical and other industries.Operating PrincipleThis valve based remote operation by compressed air, the valve normally status was closed.The valve consists of two mini-type, normally opened pneumatic valve (a drain valve or a cleaning valve used for CIP)
Ventileinheit has two seal rings within each other to form a leakage cavity. Leakage fluid can leak into the leakage cavity and discharged through the drain valve. Meanwhile, if want to open the main valve, cleaning the leakage cavity first.
.
Technical DataMetal material | Product wetted | 316L(1.4404) |
Non-product wetted | 304(1.4301) |
We can provide EN 10204 3.1B certificate for all metal materials. |
Seal material | Standard | EPDM |
Options | NBR, FPM, Silicone |
All seal materials comply with FDA 177.2600. |
Temperature | Continuous working temperature | -20~+135ºC(EPDM) |
Sterilization temperature | 150ºC(max 20min) |
Pressure | Working pressure | 0~5bar |
Control air pressure | 5~8bar |
Surface treatment | Internal surface | Ra≤0.6μm |
External surface | Grit blasting |
Connection | Connection standards | Welding end: DIN 11850 series 2 |
Welding end: INCH pipe standard |
Connection methods: welding, thread, clamp, flange |

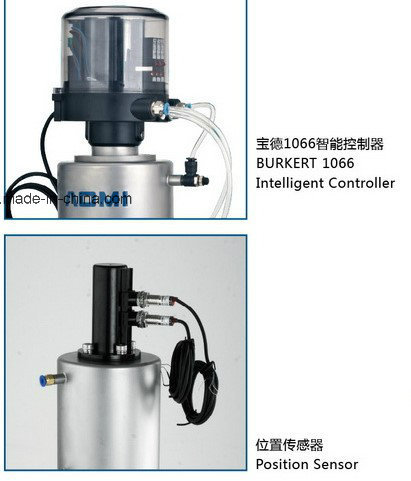

Options | Smart controller | 24V DC |
1 or 2 electromagnetism solenoid valve |
Position sensor | 24V DC |
2 PCS NPN/PNP position sensor |
Any question, be free to contact us, we are professional manufacturer for this field for more than 10 years. We will reply you within 24 hours. We are here waiting for your Sincere cooperation.
