| Prod Model: |
DY-V155 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Quality: |
Ss304,Ss316L |
| Connection Of Standard: |
DIN,3A,SMS,ISO |
| Size: |
Dn15-Dn50,3/4"-2 1/2",19mm-63mm |
| Connection Ends: |
Male Ends,Tri Clamp Ends,Welded Ends |
| Pressure Control Range: |
0.5-6 Bar |
| Sealing: |
Food Rubber |
| Medium Temperature: |
-10 Celsius Degree-+120 Celsius Degree |
| Medium: |
Liquid Material,Gas |
| Working Pressure: |
<6bar |
| Surface Treatment: |
Ra 0.8um |
Product Description
Product name:

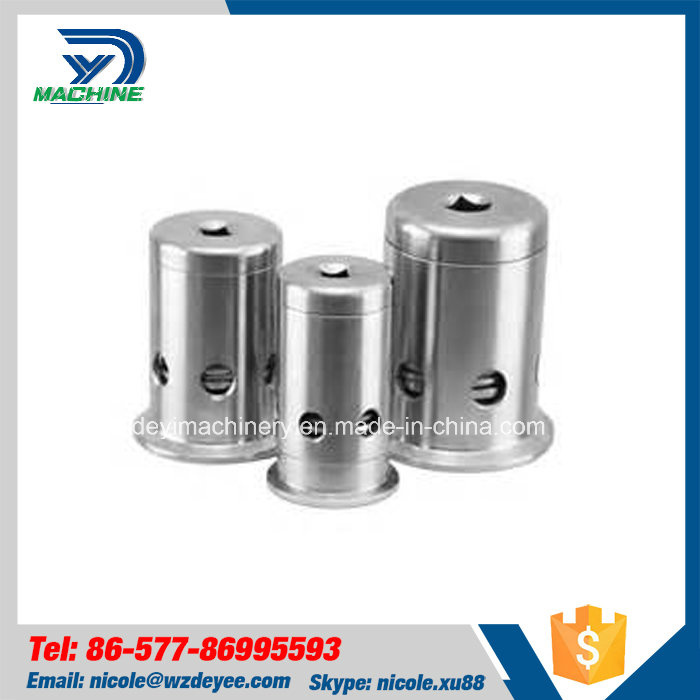

Sanitary Tank Pressure Vacuum Relief Valve(DY-V155)
Breather valves are safety devices required for storage tanks/containers/gas or vapor pipe lines/ reactors etc. having chemicals or any other fluid to be handled carefully.Breather valves with desiccants are used during transportation of sensitive equipments/ goods to protect from pressure differentials due to change in climatic conditions.
DEYI manufactures Pressure Vacuum Relief Valves (PVRV), Breather Valves, Safety Relief Valves and Vacuum Breaker Valves of wide range to meet the industry requirements.
In case of combustible fluids storage the safety valves should be used along with flame arrestors.
Technical Parameters |
| Pressure | 2.8 PSI to 43.5 PSI |
| Vacuum | 0.15 PSI to 0.75 PSI |
| Medium Temperature | -10 celsius degree-+120 celsius degree |
| Medium | liquid material,gas |
| Sealing | Food Rubber |
| Material Quality | SS304,SS316L |
| Connection of Standard | DIN,3A,SMS,ISO |
| Connection ends | Male ends,Tri clamp ends,Welded ends |
| Surface treatment | Ra 0.8um |
Features
Available in dead weight or spring loaded design
Fast acting, quick opening
Gas tight design
Choice of materials as per the fluid medium.
From 1 ½" to 2" size
Economically priced
Stainless Steel Sanitary Pressure Vacuum Valves work in the following ways-- From the Vacuum side, when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced. From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure on the outside of the valve, the valve automatically opens and vents air to atmosphere.
