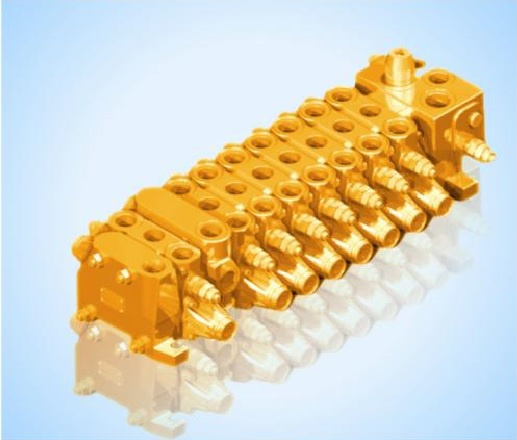

Sectional Direction Control Valve
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
DB |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Product Description
Features
1. Parallel circuit, 8 reversing valve plate makes up 1 multiple unit valve
2. Flow controlling is not related to loading pressure
3. Multiple operation mode
4. With secondary relief valve
Technical Data
Structure | Flange connection (Max.9 |
Oil port | Thread |
Max. permissible flow | P L/min | 175 |
A B L/min | 120 |
Leakage flow(at 100bar 36mm2/s) cm3/min | 20 |
Max. permissible pressure | P M LS bar | 250 |
A B bar | 300 |
T bar | 20 |
Max. control pressure (pilot port) bar | 35 |
Hydraulic oil | HL, HLP according to DIN51 524 |
Oil temperature range | -20ºC~+80ºC |
Viscosity range | 10-380mm2/s |
Viscosity range | NAS 1638 |
Approx. weight | Inlet unit | 10kgs |
Inlet unit | 4.5kgs |
Plug plate | 2kgs |
