| Prod Model: |
ZCB-700D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

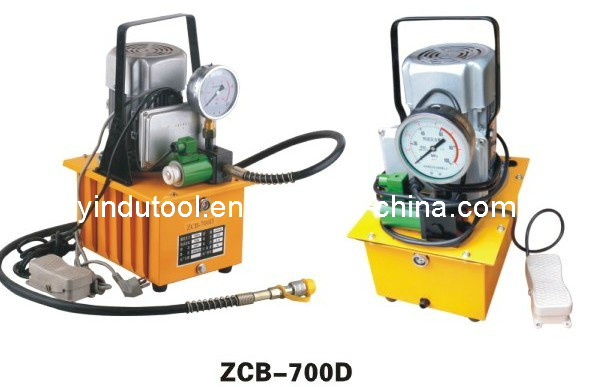

Single active Solenoid valve electric hydraulic pump
Functions:
1. On both ends of the low end of the high output, large amount of oil;
2. Low pressure use plunger type, improve the effective pressure;
3. Single active, foot switch control, can be used to operate cutting, punching tools, hydraulic cylinder, etc.;
4. Pressure overload protection device, avoid overpressure and damage the equipment;
5. Automatic the pressure, make sure won't leak when using.
Feature:
1. Electromagnetic valve control to withdraw piston in any position.
2. High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. Effective oil volume.
3. Pressure safety valve over pressure unit could avoid over pressure damage. At 700kg/cm2, automatically pressure release.
4. High pressure is for driving piston and low pressure is for piston reset (CTE-25AD).
5. Oil pipe fitted with quick coupling could be ordered at any length.
6. Oil pipe coupling fitted with PT 3/8" thread.
|
Single active Solenoid valve electric hydraulic pump |
|
Item No. |
ZCB-700D |
|
Working pressure |
high pressure:70Mpa |
low pressure:7Mpa |
|
Rated output |
high pressure:0.9L/min |
low pressure:5L/min |
|
Power Rating |
0.75Kw |
Speed |
1400r/min |
|
Working Power |
50-60Hz / 110-380V(Customizable.) |
|
Way of function |
Pressure holding magnetic valve single active |
|
Size |
350mm*270mm*510mm |
|
Weight |
28kg |
|
Oil Capacity |
7L(Customizable.) |
Type of oil |
15#- or 46# rust protective hydraulic oil |
Yuhuan Yindu Hydrauic Tools Factory, a tools manufcturer established in 1986, has become the market leader for hydraulic crimping tool, hydraulic punch tools, hydraulic bending tools, hydraulic cutting tools, hydraulic hand pumps, hydraulic electric pump, hydraulic busbar processing machines, hydraulic cable cutters, steel wire rope cable grip, Mechanical hole puncher, hydraulic punching driver, hydraulic puller, hydraulic pipe bender and so on. Under more than 20 years hard work, we have created the brand "YINDU". For us it stands to reason that all our products comply with the highest quality requirements and represent the latest innovations.
We are ISO 9001: 2000 certified and gain CE certification. Modern Computer Aided Design and production facilities provide great potential for development and design performance. Continuous innovative development of our product range guarantees top efficiency. We strive daily for customer satisfaction. Experienced staff, modern and fast means of communication and proved logistics are our basis. We look very much forward to a further trustful and successful cooperation.
